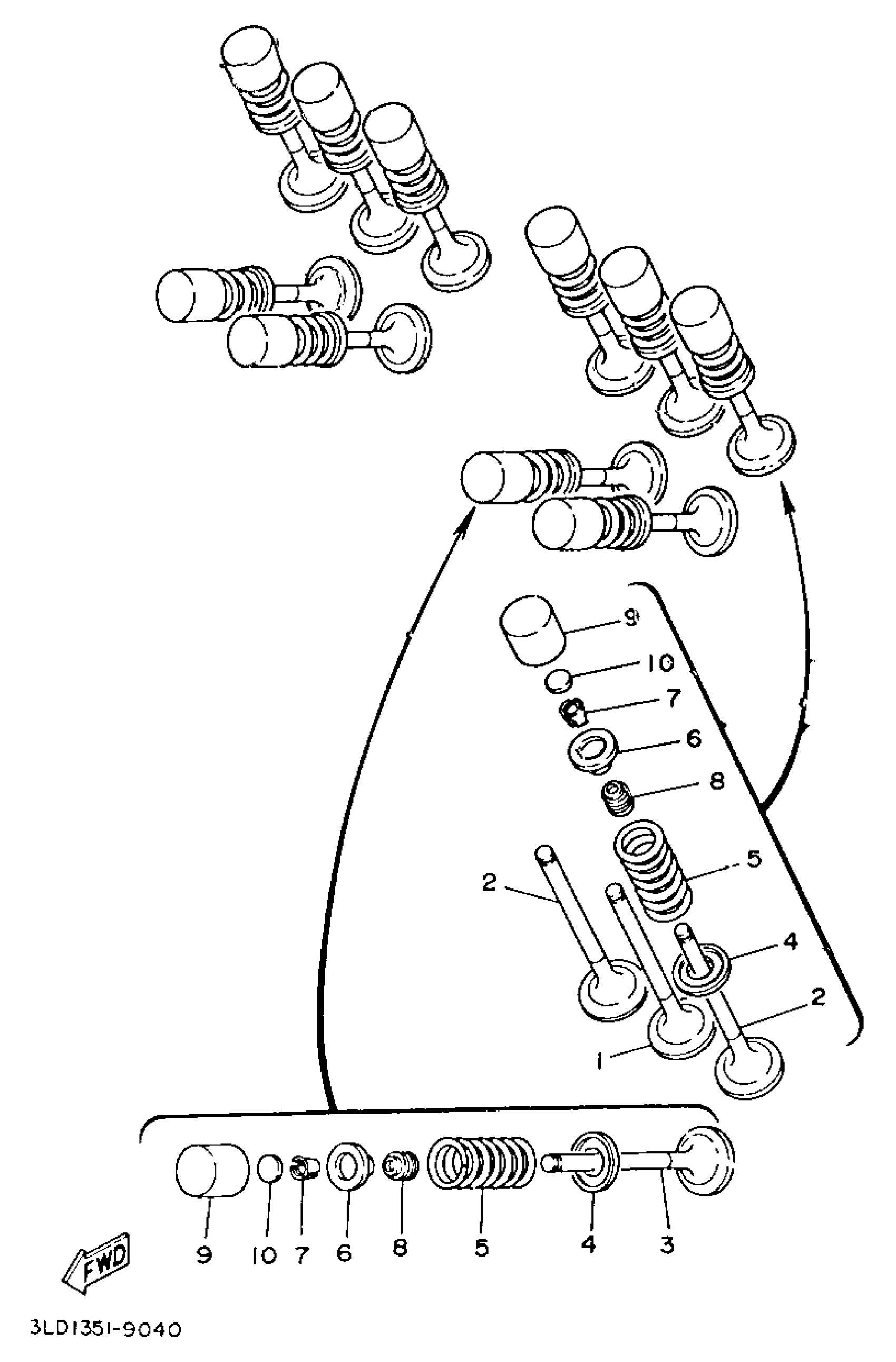

Yamaha TDM850EC (TDM850 CA) 1993 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

3LD-12111-02-00

$35.78

2

VALVE, INTAKE 2

3LD-12112-02-00

Unavailable

3

VALVE, EXHAUST

5PS-12121-00-00

$44.76

4

SEAT, VALVE SPRING

1WG-12116-00-00

$2.09

5

SPRING, VALVE INNER

3LD-12113-00-00

Unavailable

6

RETAINER, VALVE SPRING

3LD-12117-00-00

$5.56

7

COTTER, VALVE

3LD-12118-00-00

$2.19

8

SEAL, VALVE STEM

51Y-12119-00-00

$4.08

9

LIFTER, VALVE (O/S)

1WG-12153-09-00

Unavailable

9

LIFTER, VALVE

1WG-12153-21-00

$59.40

9

LIFTER, VALVE

1WG-12153-31-00

$56.52

10

PAD, ADJUSTING

3LD-12168-00-00

$14.42

10

PAD, ADJUSTING

3LD-12168-20-00

$15.36

10

PAD, ADJUSTING

3LD-12168-40-00

$15.36

10

PAD, ADJUSTING (1.35)

3LD-12168-60-00

$9.88

10

PAD, ADJUSTING (1.40)

3LD-12168-80-00

$13.73

10

PAD, ADJUSTING (1.45)

3LD-12168-A0-00

$9.27

10

PAD, ADJUSTING (1.50)

3LD-12168-F0-00

$13.03

10

PAD, ADJUSTING (1.55)

3LD-12168-H1-00

$14.01

10

PAD, ADJUSTING (1.60)

3LD-12168-K1-00

$10.40

10

PAD, ADJUSTING (1.65)

3LD-12168-M1-00

$10.73

10

PAD, ADJUSTING

3LD-12168-R1-00

Unavailable

10

PAD, ADJUSTING

3LD-12168-U1-00

Unavailable

10

PAD, ADJUSTING

3LD-12168-W1-00

Unavailable

10

PAD, ADJUSTING

3LD-12168-Y1-00

Unavailable

10

PAD, ADJUSTING

3LD-12169-11-00

Unavailable

10

PAD, ADJUSTING

3LD-12169-31-00

Unavailable

10

PAD, ADJUSTING

3LD-12169-50-00

Unavailable

10

PAD, ADJUSTING

3LD-12169-70-00

Unavailable

10

PAD, ADJUSTING (2.10)

3LD-12169-90-00

$13.93

10

PAD, ADJUSTING (2.15)

3LD-12169-E0-00

$13.85

10

PAD, ADJUSTING

3LD-12169-G0-00

Unavailable

10

PAD, ADJUSTING (2.25)

3LD-12169-J0-00

$9.88

10

PAD, ADJUSTING

3LD-12169-L0-00

Unavailable

10

PAD, ADJUSTING (2.35)

3LD-12169-N0-00

$8.45

10

PAD, ADJUSTING (2.40)

3LD-12169-T0-00

$13.84
