2002 Yamaha SUV1200 (SV1200A) Engine Hatch 1 Diagram

← All diagrams

Find the part on the Engine Hatch 1 diagram for your 2002 Yamaha SUV1200 (SV1200A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

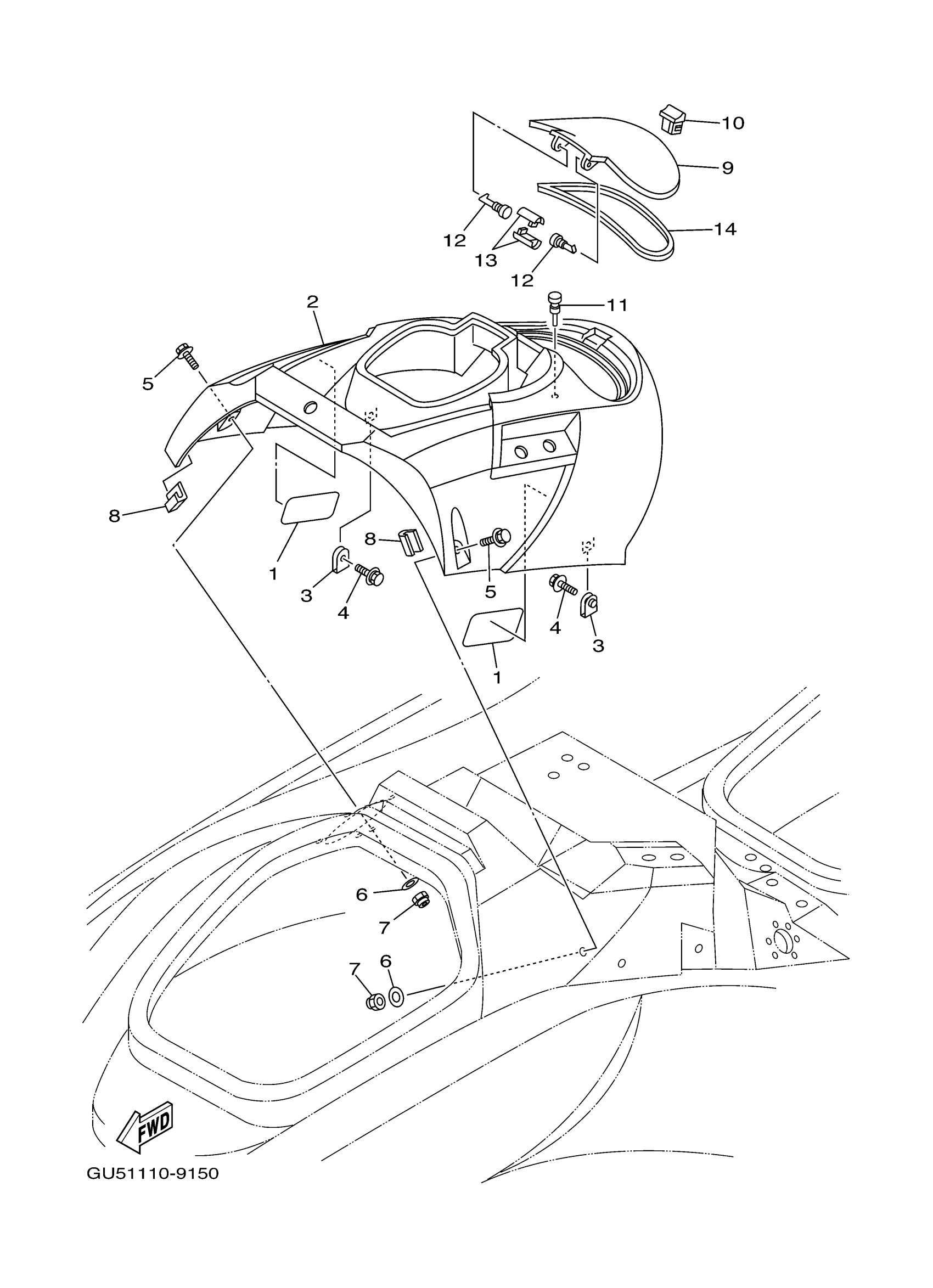

2002 Yamaha SUV1200 (SV1200A) Engine Hatch 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRIM, HATCH 2

F0D-65116-00-00

1
Out of stock

2

COVER, ENGINE HATCH

F0D-U516N-20-P0

1
Out of stock

3

NUT, SPRING(GJ3)

90183-06902-00

1
Out of stock

4

BOLT, WITH WASHER

90119-06830-00

—
Out of stock

5

BOLT, WITH WASHER

90119-06803-00

1
Out of stock

6

WASHER

9299R-06200-00

1
Out of stock

7

NUT, NYLON

9572R-06300-00

1
Out of stock

8

RUBBER, WATER PROOF

GP7-U5114-00-00

1
Out of stock

9

LID HATCH

F0D-U517H-20-P0

1
Out of stock

10

LOCK

F0D-62875-00-00

1
Out of stock

11

. PLUG

90605-502U2-00

1
Out of stock

12

PIN, HINGE

F0D-6517R-00-00

1
Out of stock

13

JOINT, HINGE

F0D-6517T-00-00

1
Out of stock

14

PACKING CASE

F0D-U519D-01-00

1
Out of stock
