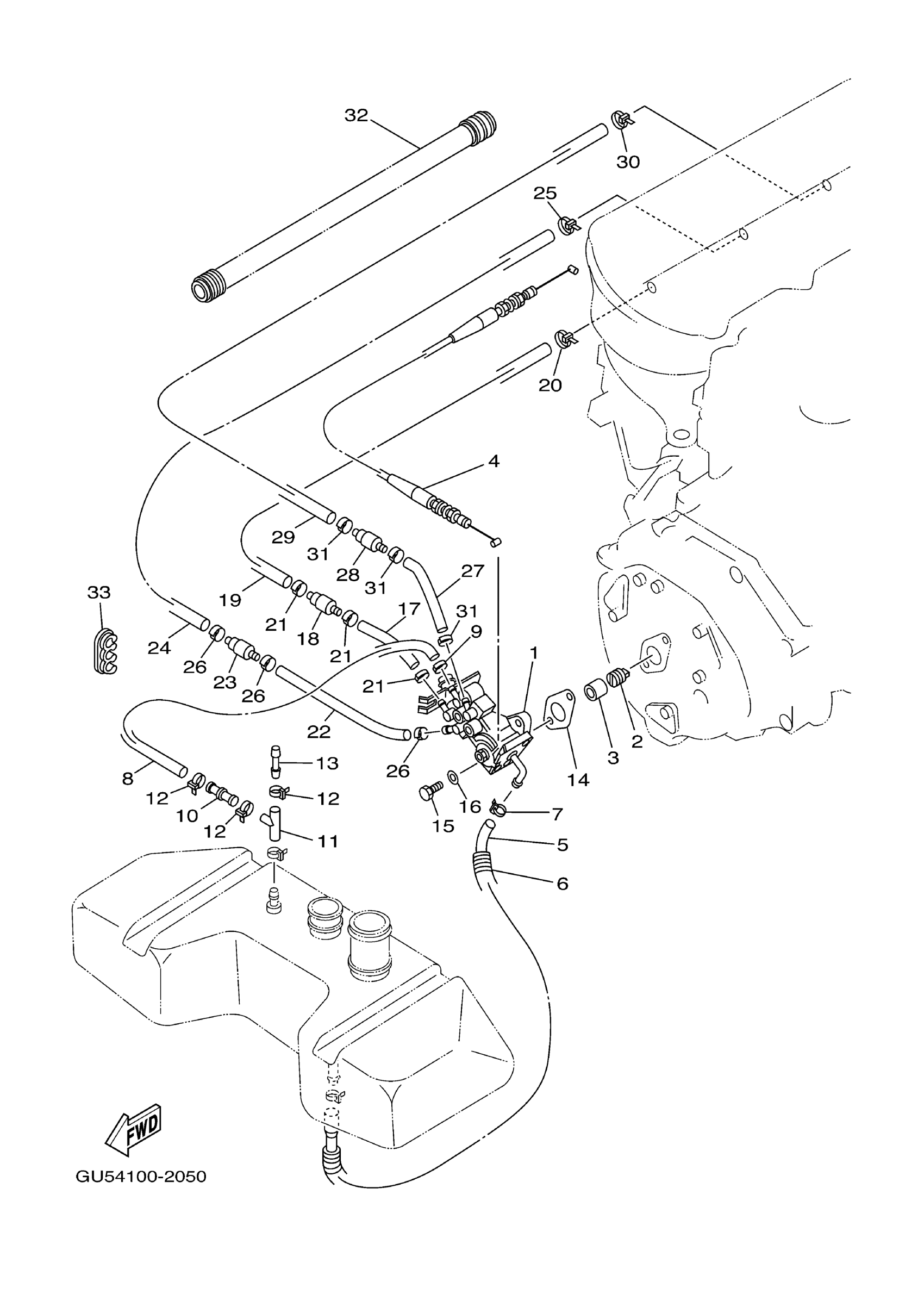

Yamaha SV1200A (SUV1200) GU54 2002 OIL PUMP Diagram

#

Description
Price

1

OIL INJECTION PUMP ASSY

66G-13200-01-00

Unavailable

2

JOINT

65U-13132-00-00

$48.47

3

RING, RUBBER

65U-13554-00-00

Unavailable

4

PUMP, CABLE ASSY

66H-26320-00-00

Unavailable

5

PIPE, OIL 1

66G-13416-00-00

Unavailable

6

HOSE

90446-17M72-00

$7.33

7

CLAMP

90465-10098-00

$1.68

8

HOSE (L770)

90445-07006-00

$24.46

9

CLIP

90468-02001-00

$2.02

10

JOINT

63M-13132-00-00

$13.99

11

PIPE, JOINT 3

63M-24378-00-00

$5.91

12

CLAMP

90465-10098-00

$1.68

13

PIPE, JOINT 1

6G8-24376-00-00

$5.91

14

GASKET, PUMP CASE

63M-13116-00-00

$2.80

15

BOLT(7U8)

97080-06020-00

$3.63

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

HOSE (L110)

90445-07007-00

$27.99

18

VALVE, CHECK

67X-13183-00-00

Unavailable

19

HOSE(62T)

90446-07M48-00

Unavailable

20

CLAMP

90465-10098-00

$1.68

21

CLIP

90468-02001-00

$2.02

22

HOSE (L110)

90445-07007-00

$27.99

23

VALVE, CHECK

67X-13183-00-00

Unavailable

24

HOSE(62T)

90446-07M48-00

Unavailable

25

CLAMP

90465-10098-00

$1.68

26

CLIP

90468-02001-00

$2.02

27

HOSE (L110)

90445-07007-00

$27.99

28

VALVE, CHECK

67X-13183-00-00

Unavailable

29

HOSE

90446-07M74-00

Unavailable

30

CLAMP

90465-10098-00

$1.68

31

CLIP

90468-02001-00

$2.02

32

HOSE

90446-24M83-00

Unavailable

33

CLAMP

90464-07M05-00

$2.80
