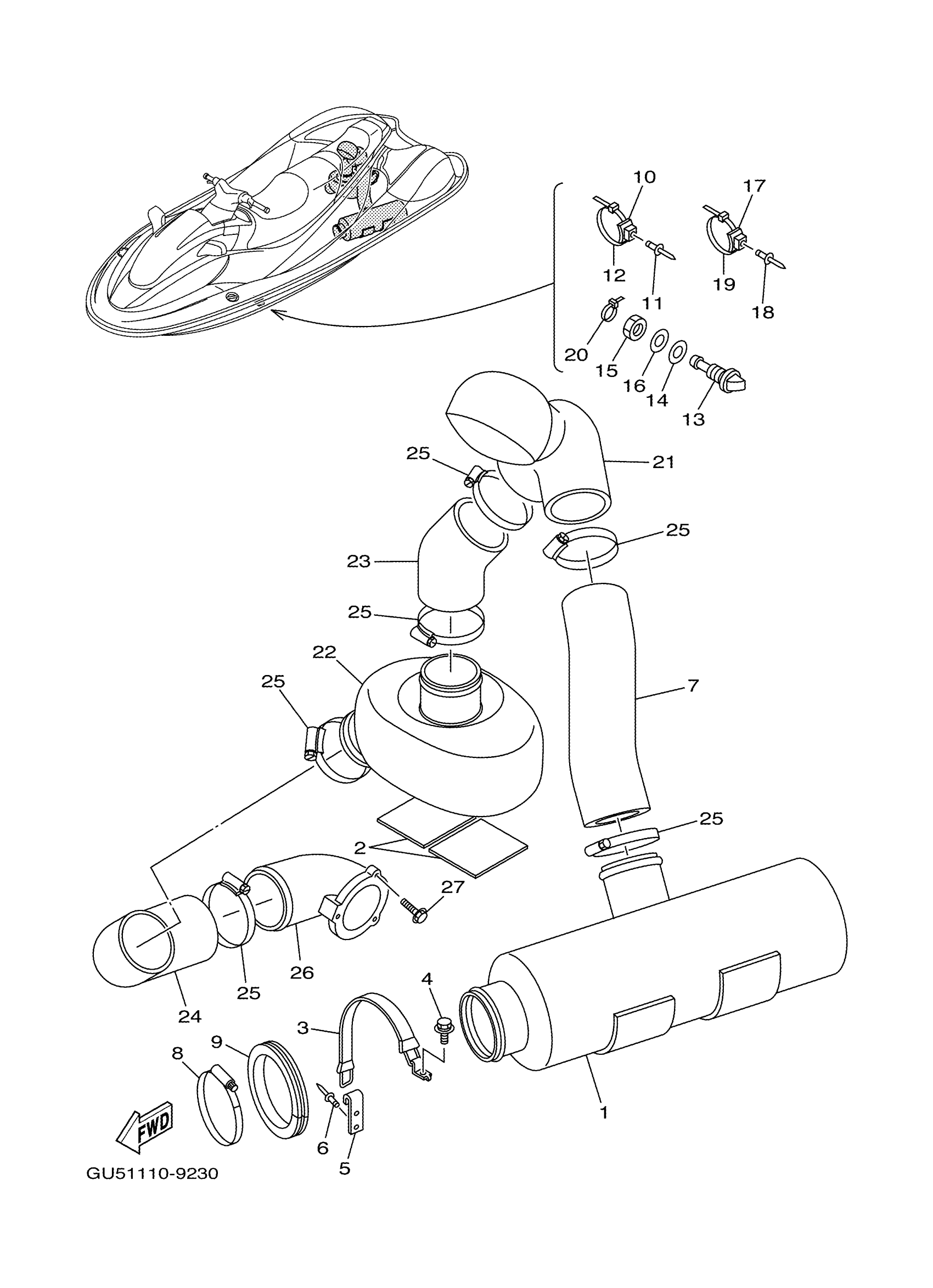

Yamaha SV1200A (SUV1200) GU54 2002 EXHAUST 2 Diagram

#

Description
Price

1

WATER LOCK COMP.

F0D-67550-03-00

Unavailable

2

MAT,WATER LOCK

GJ3-U755J-00-00

$90.89

3

C HOOK COMP.

GU5-U7570-00-00

Unavailable

4

BOLT, WITH WASHER

90119-06830-00

Unavailable

5

HOOK A

GA7-65772-00-00

$9.08

6

RIVET, BLIND

90267-48802-00

$1.98

7

HOSE, EXHAUST 1

F0D-6758B-00-00

$228.77

8

BAND, HOSE 120

90601-B12U2-00

Unavailable

9

TRIM

GU5-U5162-00-00

Unavailable

10

CLAMP COMP (EU0)

90600-91736-00

$6.22

11

RIVET, BLIND

90267-48802-00

$1.98

12

CLAMP

90464-32801-00

$1.23

13

PILOT, WATER

GJ1-6753B-02-00

Unavailable

14

PACKING

GP3-U1438-00-00

Unavailable

15

NUT

GP7-61652-00-00

$10.24

16

WASHER

9299R-14200-00

Unavailable

17

CLAMP COMP (EU0)

90600-91736-00

$6.22

18

RIVET, BLIND

90267-48802-00

$1.98

19

CLAMP

90464-32801-00

$1.23

20

CLAMP

90465-10098-00

$1.68

21

RESONATOR, 2

F0D-6753D-01-00

Unavailable

22

TANK, WATER

F0D-64261-02-00

$304.53

23

HOSE, EXHAUST 2

F0D-6758C-01-00

Unavailable

24

HOSE, EXHAUST 3

F0D-6758D-01-00

$81.80

25

BAND, HOSE 95

90601-195UD-00

Unavailable

26

THRU-HULL,EXHAUST

F0D-67565-01-00

$227.26

27

BOLT, WITH WASHER

90119-06896-00

$5.03
