1969 Yamaha SS396 Shroud Diagram

← All diagrams

Find the part on the Shroud diagram for your 1969 Yamaha SS396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

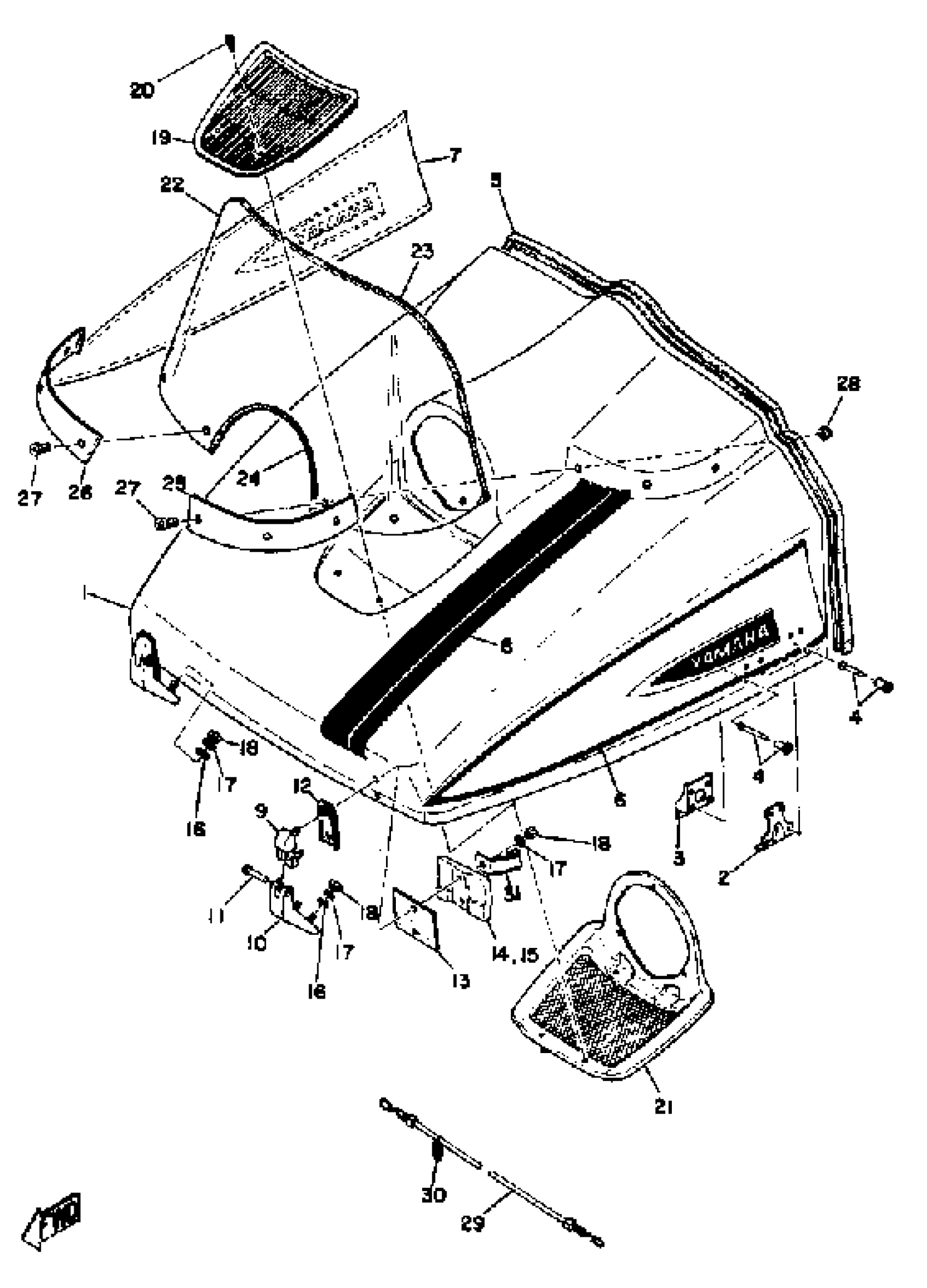

1969 Yamaha SS396 Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

(806-77111-00-00)

1
Out of stock

2

. BODY, LATCH 1

806-77171-00-00

1
Out of stock

3

CLAMP 4

(806-77138-00-00)

1
Out of stock

4

. RIVET, BLIND ()806-77175-00)

90267-40026-00

1
Out of stock

5

TRIM 2

(806-77166-00-00)

1
Out of stock

6

ORNAMENT 1

(806-77163-00-00)

1
Out of stock

7

ORNAMENT 2

(806-77164-00-00)

1
Out of stock

8

ORNAMENT 3

(809-77169-00-00)

1
Out of stock

9

HINGE 1

(806-77145-00-00)

1
Out of stock

10

HINGE 3

806-77147-00-00

1
Out of stock

11

PIN (806-77157-00)

90243-05002-00

1
Out of stock

12

DAMPER 1

(806-77198-00-00)

1
Out of stock

13

DAMPER 2

(806-77199-00-00)

1
Out of stock

14

PLATE, BACK UP 1

810-77153-00-00

1
Out of stock

15

PLATE, BACK UP 2

(806-77154-00-00)

1
Out of stock

16

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

17

WASHER, SPRING

92907-06100-00

—
Out of stock

18

NUT(6TA)

95317-06600-00

—

$2.69

In stock

19

LOUVER 1

(806-77131-00-00)

1
Out of stock

20

SCREW, BINDING

98907-05016-00

—

$6.18

In stock

21

HOLDER, ROD 1

(806-77139-00-00)

1
Out of stock

22

WINDSHIELD

(806-77210-00-00)

1
Out of stock

23

TRIM, UPPER

(806-77213-00-00)

1
Out of stock

24

TRIM 4

(806-77216-00-00)

1
Out of stock

25

TRIM, LOWER

(806-77214-00-00)

1
Out of stock

26

TRIM 3

806-77215-00-00

1
Out of stock

27

SCREW, BIND

98903-05016-00

1
Out of stock

28

NUT, T (802-77217-00)

90180-05004-00

1
Out of stock

29

STOPPER, SHROUD

(809-77118-00-00)

1
Out of stock

30

CLAMP, ROD

(806-77159-00-00)

1
Out of stock

31

CLAMP

90465-06013-00

1
Out of stock
