1969 Yamaha SS396 Engine Bracket Diagram

← All diagrams

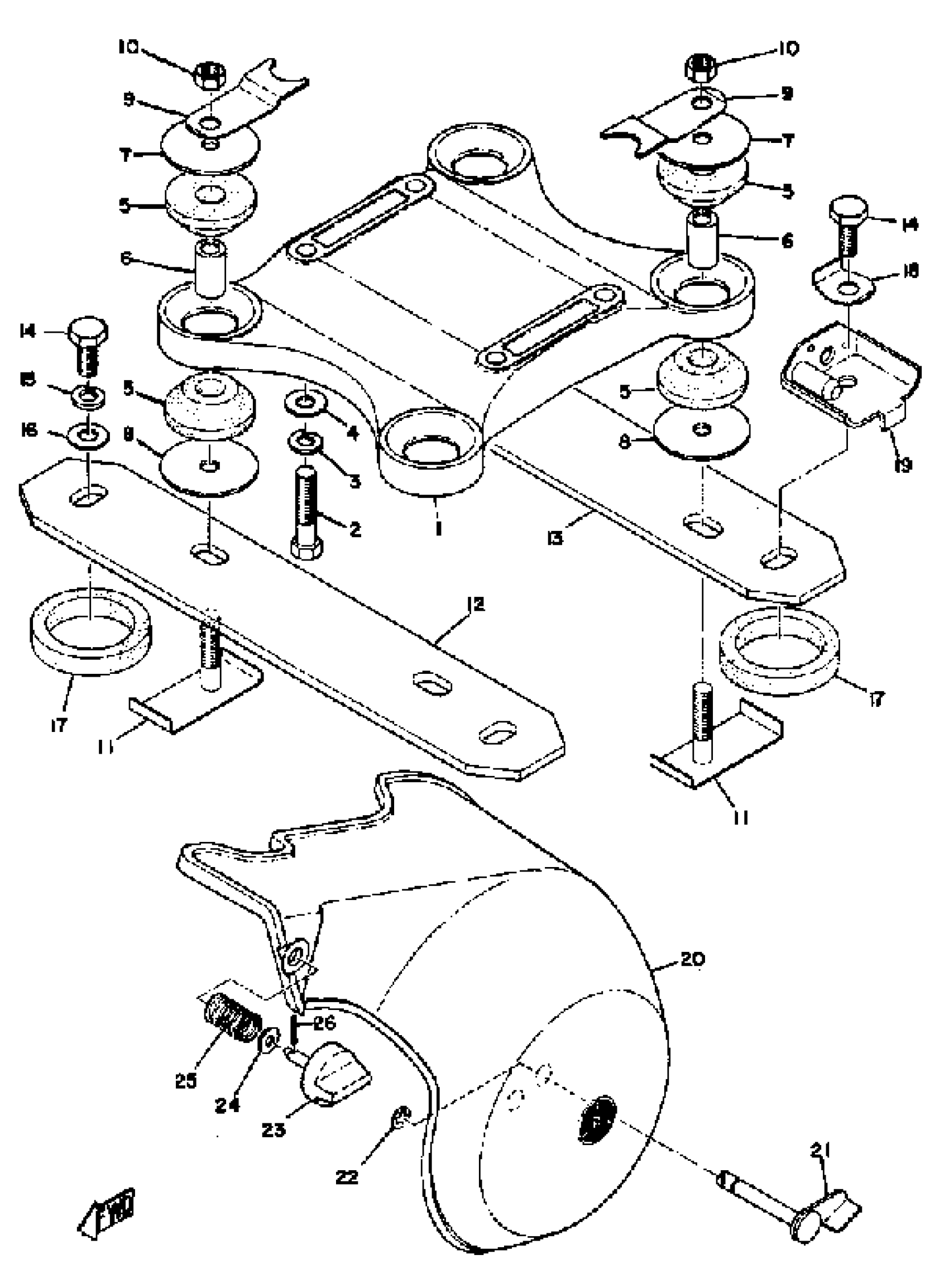

Find the part on the Engine Bracket diagram for your 1969 Yamaha SS396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha SS396 Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

(807-21411-00-00)

1
Out of stock

2

BOLT,HEXAGON(676)

97013-10050-00

1
Out of stock

3

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

4

1

$3.00

In stock

5

DAMPER, ENG MOUNT 1

807-15316-00-00

1
Out of stock

6

SPACER

90560-10020-00

1
Out of stock

7

WASHER, LOCK

(807-21491-00-00)

1
Out of stock

8

WASHER, PLATE (807-21492-00)

90201-10152-00

1
Out of stock

9

WASHER, LOCK

(90215-10074-00)

1
Out of stock

10

NUT (682)

95380-10700-00

1

$5.78

In stock

11

BOLT, ENG MNTNG 2

(807-21482-00-00)

1
Out of stock

12

BRACKET, ENGINE 2

(806-21419-00-00)

1
Out of stock

13

BRACKET, ENGINE 3

(806-21429-00-00)

1
Out of stock

14

BOLT

90101-10055-00

1
Out of stock

15

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

16

1

$3.00

In stock

17

DAMPER, RUBBER 1

806-21485-00-00

1
Out of stock

18

WASHER, LOCK

(806-21491-00-00)

1
Out of stock

19

BRACKET 1

(806-77315-00-00)

1
Out of stock

20

GUARD, DRIVE

(806-77311-00-00)

1
Out of stock

21

ARM, FITTING

806-77314-00-00

1
Out of stock

22

CIRCLIP(53L)

99001-06600-00

—

$0.70

In stock

23

KNOB

(806-77324-00-00)

1
Out of stock

24

WASHER 2

(802-77179-00-00)

1
Out of stock

25

SPRING 1

806-77325-00-00

1
Out of stock

26

PIN, SPRING

91690-25016-00

—
Out of stock
