1969 Yamaha SS396 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1969 Yamaha SS396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

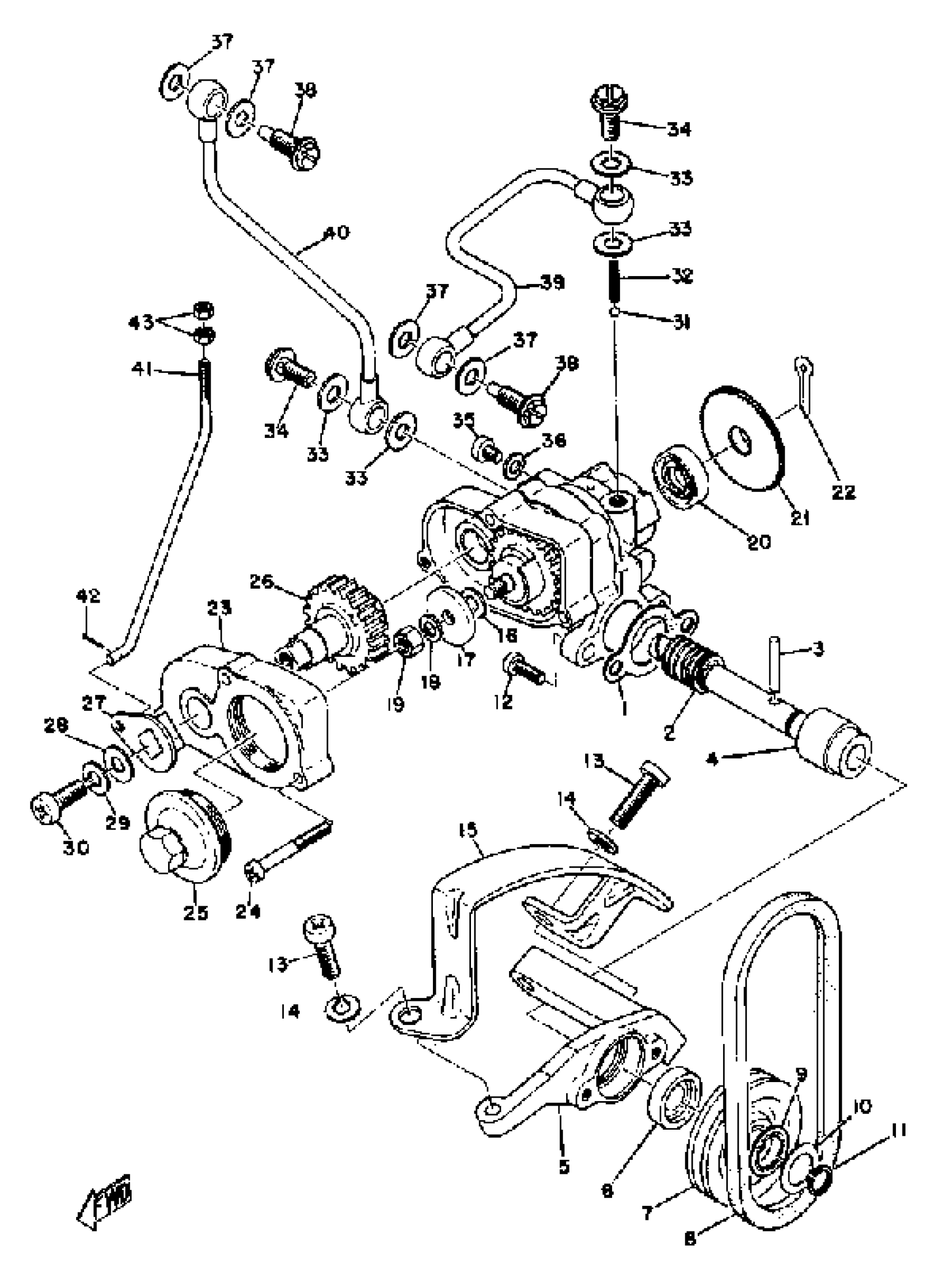

1969 Yamaha SS396 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

1

OIL PUMP ASSEMBLY

(807-13101-01-00)

1
Out of stock

2

SHAFT, WORM

(802-13175-00-00)

1
Out of stock

2

OIL PUMP ASSEMBLY

809-13101-00-00

1
Out of stock

3

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

4

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

5

BRACKET, PUMP

(807-13199-00-00)

1
Out of stock

6

OIL SEAL (10X22X7-137)

93101-10002-00

1

$6.68

In stock

7

GEAR, PUMP DRIVE

807-13178-00-00

1
Out of stock

8

BELT (810-13189-00)

808-13189-00-00

1
Out of stock

9

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

10

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

11

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

12

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

13

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

PROTECTOR, DRIVE

(806-77323-00-00)

1
Out of stock

16

SHIM,PLUNGER

137-13137-00-10

—

$6.43

In stock

17

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

18

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

19

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

20

OIL SEAL (J10)

93101-10090-00

—

$6.17

In stock

21

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

22

. PIN, COTTER

91401-12018-00

1
Out of stock

23

COVER, AJST PULLEY

(807-13146-00-00)

1
Out of stock

24

SCREW, PAN HEAD(MK5)

98507-04035-00

—

$6.69

In stock

25

CAP, PUMP CASE

(807-13143-00-00)

1
Out of stock

26

GEAR, PUMP CONTROL

(807-13154-00-00)

1
Out of stock

27

LEVER, PUMP CONTROL

(807-13156-00-00)

1
Out of stock

28

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

29

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

30

SCREW, PAN

98507-06014-00

—

$6.18

In stock

31

. UNAVAILABLE IN PRICE BOOK (5/32 INCH)

93505-42002-00

1
Out of stock

32

SPRING, COMPRESSION

(90501-02017-00)

1
Out of stock

33

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

34

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

35

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

36

GASKET 137131870000

90430-04004-00

—
Out of stock

37

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

38

BOLT, UNION

90401-06011-00

1
Out of stock

39

PIPE, DELIVERY 1

(807-13161-00-00)

1
Out of stock

40

PIPE, DELIVERY 2

(807-13171-00-00)

1
Out of stock

41

ROD, PUMP CONTROL

(807-13157-00-00)

1
Out of stock

42

. PIN, COTTER

91490-12012-00

1

$2.77

In stock

43

NUT (6G8)

95380-03600-00

—

$1.02

In stock
