1969 Yamaha SS396 Exhaust Diagram

← All diagrams

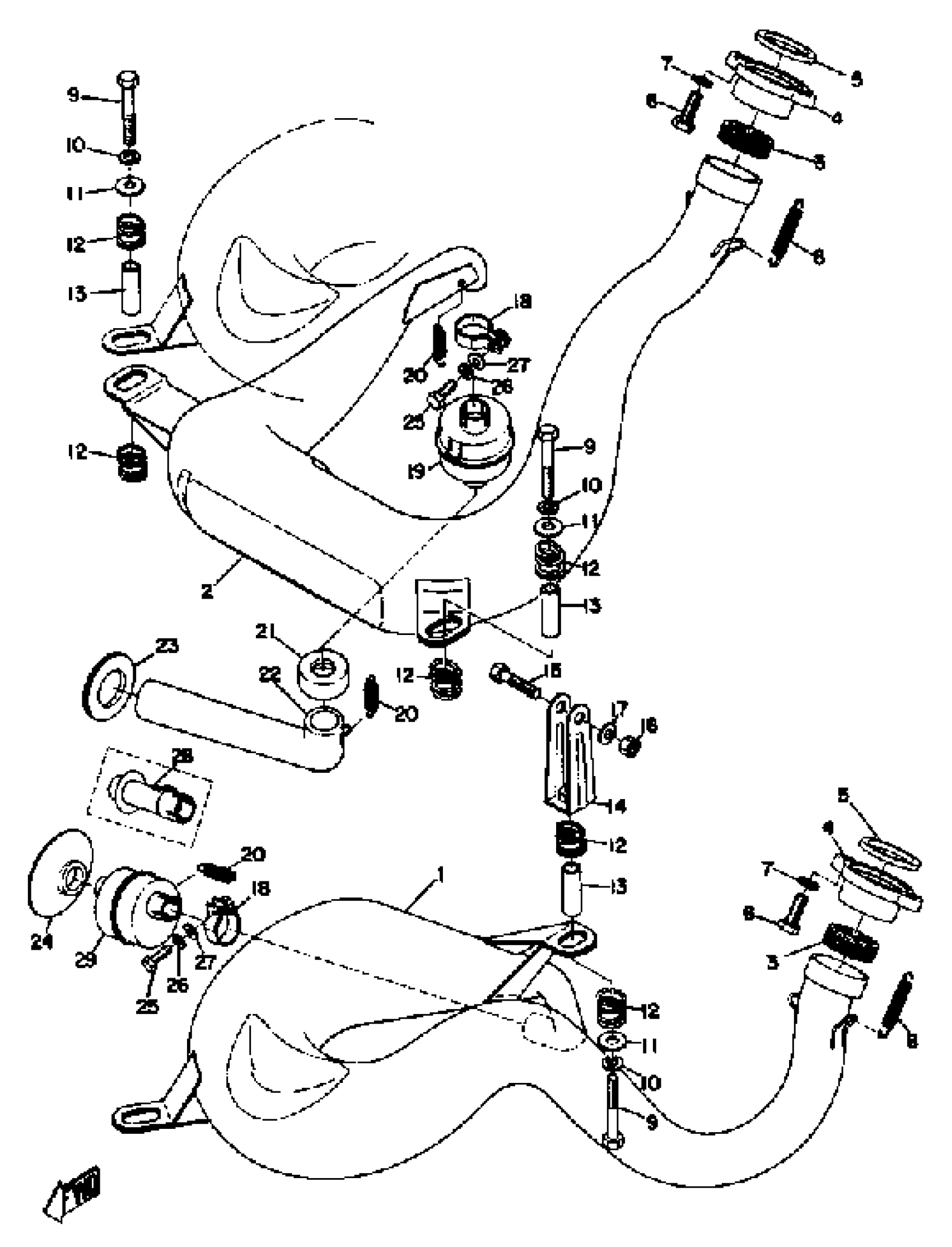

Find the part on the Exhaust diagram for your 1969 Yamaha SS396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha SS396 Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(809-14610-00-00)

1
Out of stock

2

EXHAUST PIPE ASSEMBLY R

(809-14620-00-00)

1
Out of stock

3

GASKET, EXST PIPE

(802-14623-00-00)

1
Out of stock

4

NUT, RING

(802-14612-70-00)

1
Out of stock

5

GASKET, EXST PIPE

(802-14613-00-00)

1
Out of stock

6

BOLT (682)

97013-08025-00

1

$6.80

In stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

8

SPRING, TENSION

90506-12028-00

1
Out of stock

9

BOLT (663)

97013-08060-00

1

$3.25

In stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

WASHER, PLATE (5J0)

90201-085E6-00

1
Out of stock

12

SPRING, COMPRESSION (802-14773-00)

90501-26149-00

1
Out of stock

13

COLLAR (802-14638-00)

90387-09071-00

1
Out of stock

14

STAY, MUFFLER

(809-14791-00-00)

1
Out of stock

15

BOLT

97014-08040-00

1

$5.26

In stock

16

NUT(6L2)

95333-08600-00

—

$3.20

In stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

18

BAND, MUFFLER

(809-14715-00-00)

1
Out of stock

19

SILENCER, EXHAUST

(809-14753-00-00)

1
Out of stock

20

SPRING 214-14683-01

90506-12029-00

—

$6.49

In stock

21

DAMPER, MUFFLER

(809-14737-00-00)

1
Out of stock

22

PIPE, MUFFLER TAIL

(809-14746-00-00)

1
Out of stock

23

PROTECTER, MUFF 2 (2)

809-14728-00-00

1
Out of stock

24

PROTECTOR, MUFF 1 (1)

809-14718-00-00

1
Out of stock

25

BOLT(7U8)

97080-06020-00

1
Out of stock

26

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

27

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

28

PIPE, TAIL

(809-14784-00-00)

1
Out of stock
