1969 Yamaha SS396 Crankcase Diagram

← All diagrams

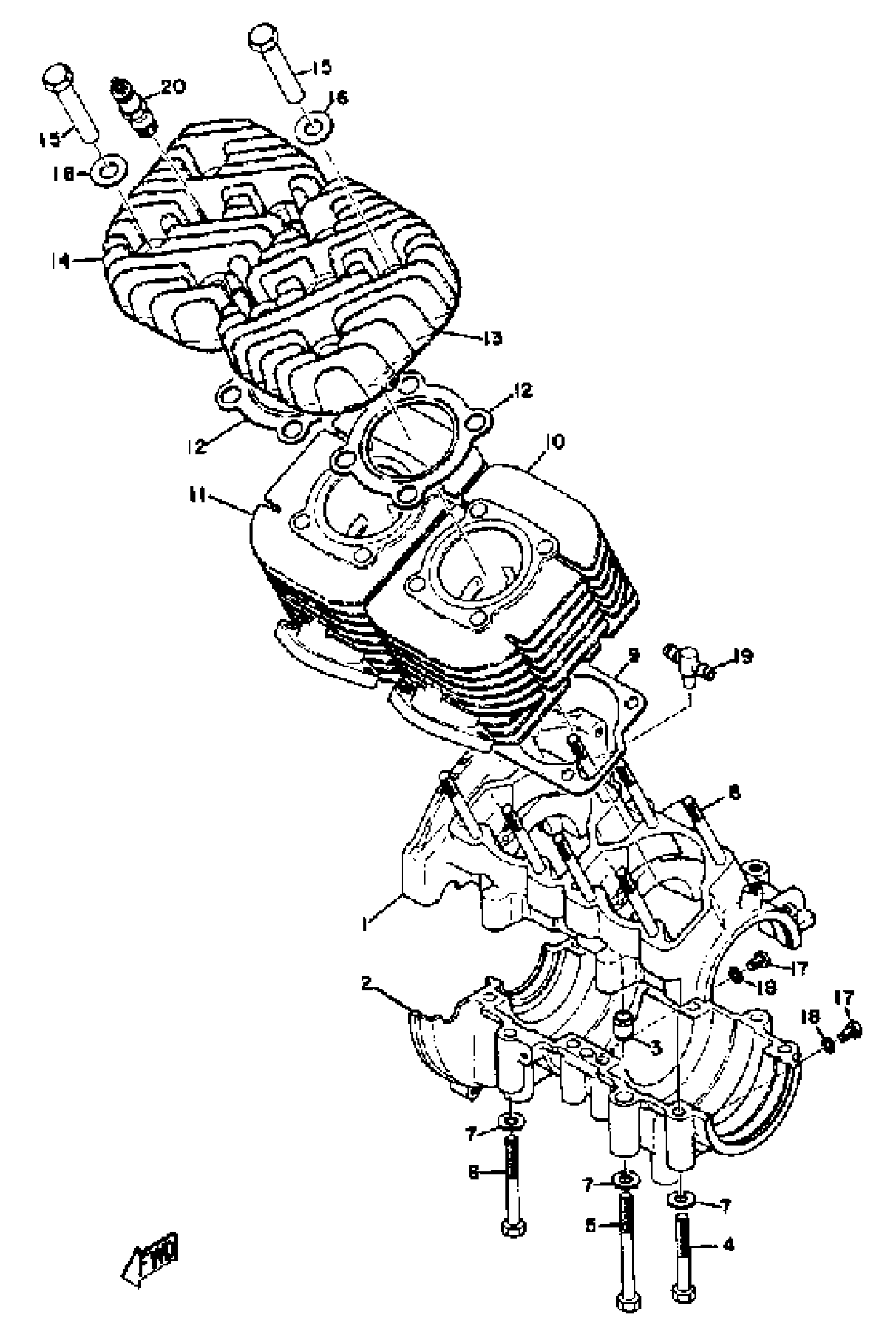

Find the part on the Crankcase diagram for your 1969 Yamaha SS396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha SS396 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, CYLINDER HEAD 1

807-11181-00-00

1
Out of stock

1

CRANKCASE ASSEMBLY

(807-15100-00-00)

1
Out of stock

1

TOOL

UNA-VAILA-BL-EI

1
Out of stock

2

TOOL

UNA-VAILA-BL-EI

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

BOLT (663)

97013-08060-00

1

$3.25

In stock

5

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

6

BOLT,HEXAGON

97013-08085-00

1
Out of stock

7

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

8

BOLT (248-11361-00)

90116-08064-00

1
Out of stock

9

GASKET, CYLINDER

807-11351-09-00

1
Out of stock

10

CYLINDER 1

(806-11311-70-00)

1
Out of stock

10

CYLINDER 1

(809-11311-00-00)

1
Out of stock

11

CYLINDER 2

(806-11321-70-00)

1
Out of stock

11

CYLINDER 2

809-11321-00-00

1
Out of stock

12

GASKET, CYL HEAD 1

8A6-11181-09-00

1
Out of stock

13

HEAD, CYLINDER 1

(806-11111-70-00)

1
Out of stock

13

HEAD, CYLINDER 1

(809-11111-00-00)

1
Out of stock

14

HEAD, CYLINDER 2

(806-11121-70-00)

1
Out of stock

14

HEAD, CYLINDER 2

(809-11121-00-00)

1
Out of stock

15

NUT, SPEC''L SHAPE

90179-08076-00

1
Out of stock

16

YBS66-12 WASHER,PLAIN

92990-12200-00

—

$6.17

In stock

17

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

18

GASKET

90430-06017-00

1
Out of stock

19

PIPE, JOINT

(807-24461-00-00)

1
Out of stock

20

SPARK PLUG B9EN

(94701-00016-00)

1
Out of stock

20

SPARK PLUG B10EN

(94701-00017-00)

1
Out of stock

20

SPARK PLUG B11EN

(94701-00018-00)

1
Out of stock
