1981 Yamaha SRX440E Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

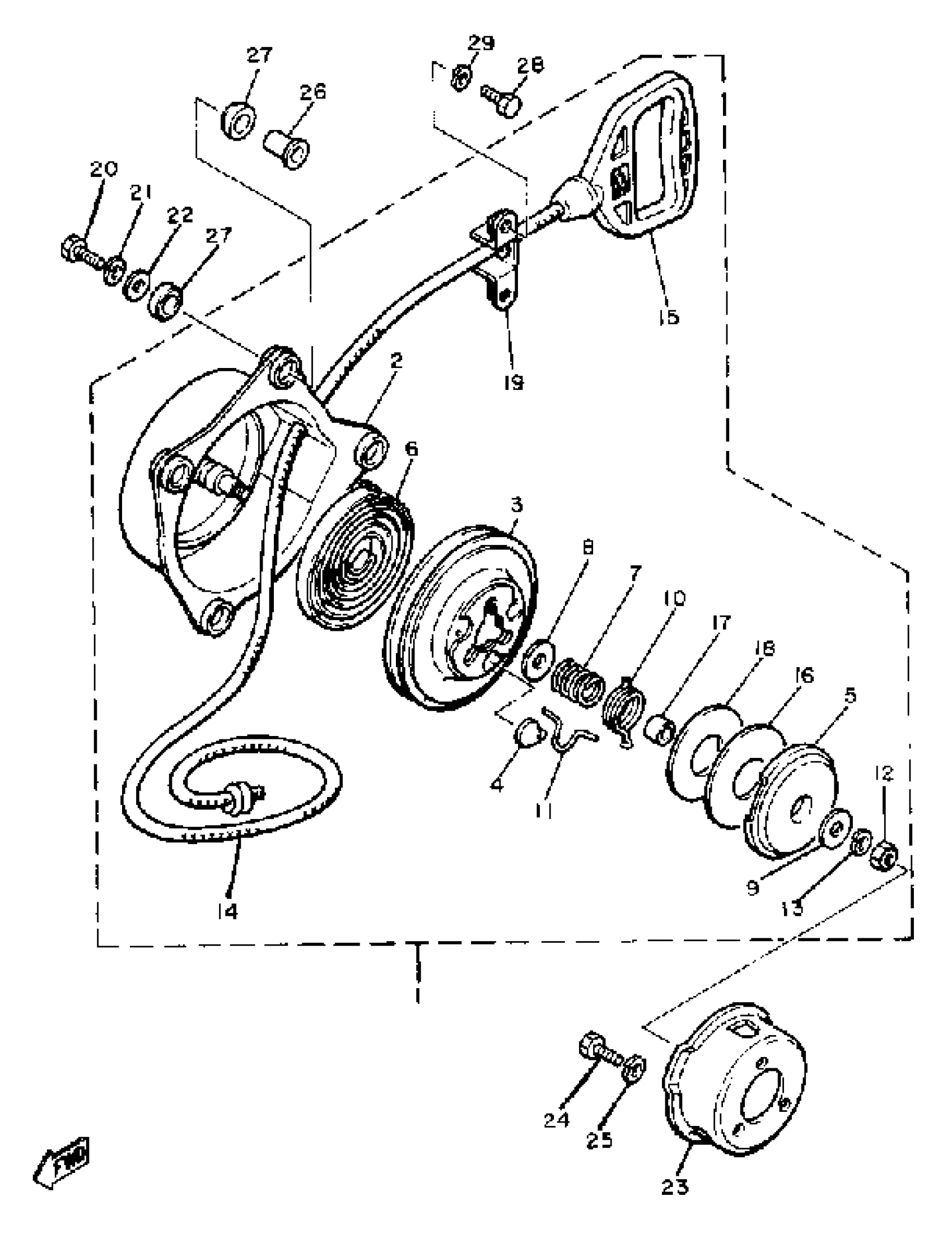

1981 Yamaha SRX440E Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSEMBLY (8M6-15710-02)

8M6-15710-04-00

1
Out of stock

2

. CASE, STARTER (8M6-15711-01)

8M6-15711-04-00

1
Out of stock

3

. DRUM, SHEAVE

857-15714-00-00

1
Out of stock

4

. PAWL, DRIVE

616-15741-01-00

1
Out of stock

5

. PLATE, DRIVE

8A7-15716-00-00

1
Out of stock

6

SPRING, STARTER

8F3-15713-01-00

1

$41.31

In stock

7

SPRING,DRIVE PLATE

626-15715-01-00

—

$2.42

In stock

8

WASHER, FLAT

(802-15726-00-00)

1
Out of stock

9

WASHER,FLAT

807-15726-01-00

—

$3.54

In stock

10

. SPRING, RETURN

811-15734-00-00

1
Out of stock

11

. SPRING, RETURN

811-15784-00-00

1
Out of stock

12

. NUT

95380-08700-00

1

$3.07

In stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

14

WIRE, STARTER (BRAIDED)

89A-15751-00-00

1

$27.50

In stock

15

HANDLE, STARTER

8F3-15755-00-00

1

$23.00

In stock

16

WASHER,THRUST

8A7-15719-00-00

1
Out of stock

17

. BUSH

8A7-15753-00-00

1
Out of stock

18

WASHER,THRUST

8A7-15719-00-00

1
Out of stock

19

HOLDER, HANDLE

8F3-15788-01-00

—

$13.48

In stock

20

BOLT (682)

97095-06040-00

—

$2.36

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

23

PULLEY, STARTER

8M6-15723-01-00

1
Out of stock

24

BOLT, HEXAGON

97017-08016-00

—
Out of stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

26

COLLAR

90387-063E9-00

1
Out of stock

27

BUSH (8M6)

90385-12036-00

—

$7.80

In stock

28

BOLT, HEXAGON

97017-06012-00

—

$2.62

In stock

29

WASHER, SPRING

92907-06100-00

—
Out of stock
