1981 Yamaha SRX440E Instrument Panel Diagram

← All diagrams

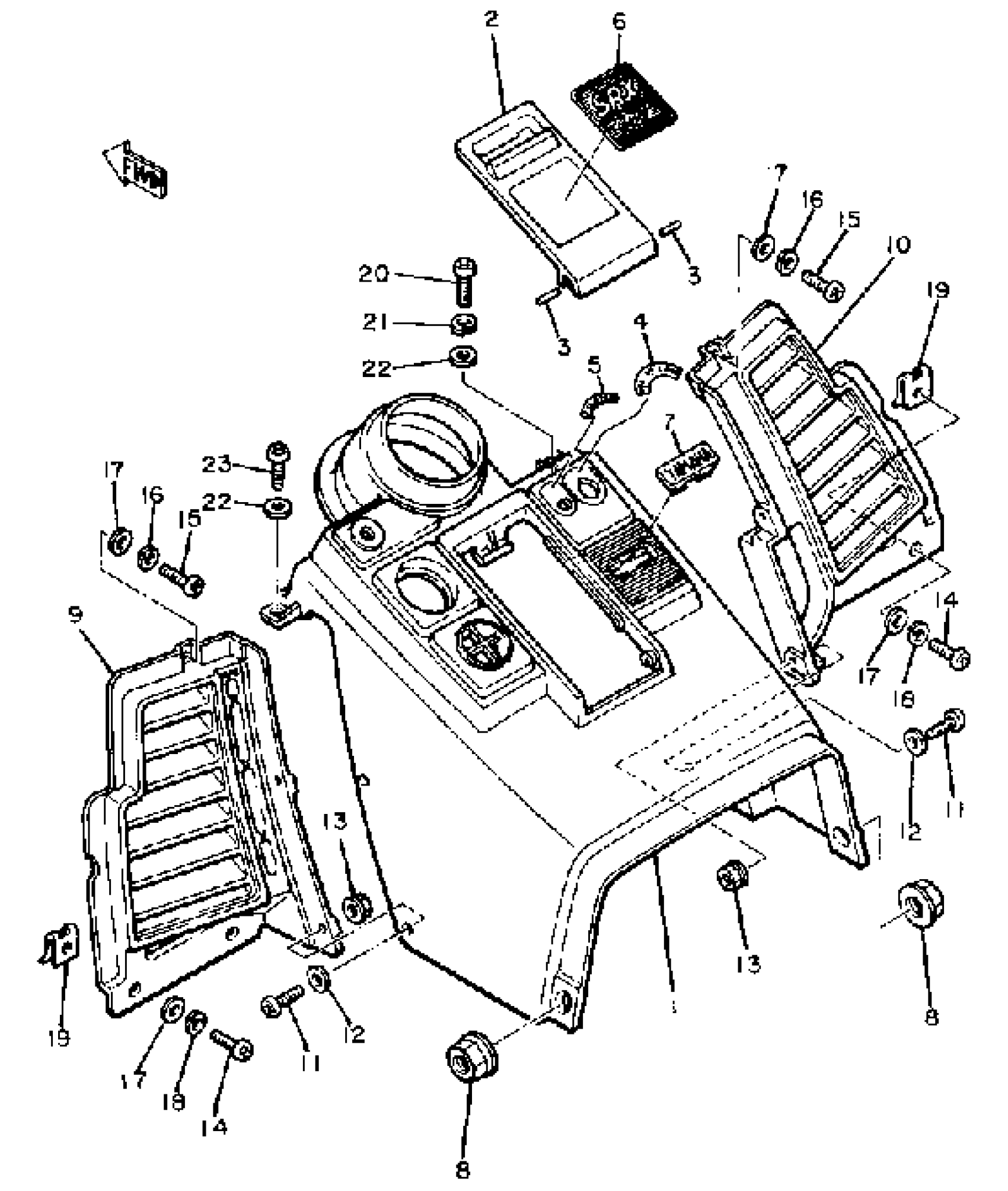

Find the part on the Instrument Panel diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SRX440E Instrument Panel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL, INSTRUMENT

(8M6-77711-00-00)

1
Out of stock

2

PANEL, INSTRUMENT

8M6-77712-00-00

1
Out of stock

3

PIN, HINGE

8K4-77477-00-00

1
Out of stock

4

INDICATOR 1

8K2-77741-01-00

1
Out of stock

5

INDICATOR 2

8K4-77742-00-00

1
Out of stock

6

ORMNT, INSTR PNL 1

(8M6-77715-00-00)

1
Out of stock

7

EMBLEM 1

8M6-77725-00-00

1
Out of stock

8

NUT, SPEC''L SHAPE

90179-16251-00

1
Out of stock

9

LOUVER 1

8M6-77131-00-00

1
Out of stock

10

LOUVER 2

8M6-77132-00-00

1
Out of stock

11

SCREW, PAN

98517-05012-00

1

$3.91

In stock

12

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

13

NUT, NYLON

95707-05300-00

1

$2.74

In stock

14

SCREW, TAPPING

90167-05007-00

1
Out of stock

15

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

16

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

17

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

18

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

19

NUT, SPRING (2E9)

90183-05013-00

—

$7.23

In stock

20

SCREW, PAN HEAD(3TJ)

98507-06016-00

—

$2.43

In stock

21

WASHER, SPRING

92907-06100-00

—
Out of stock

22

WASHER, PLATE (4L0)

90201-062A8-00

—

$6.23

In stock

23

SCREW, PAN

98517-06012-00

—

$3.14

In stock
