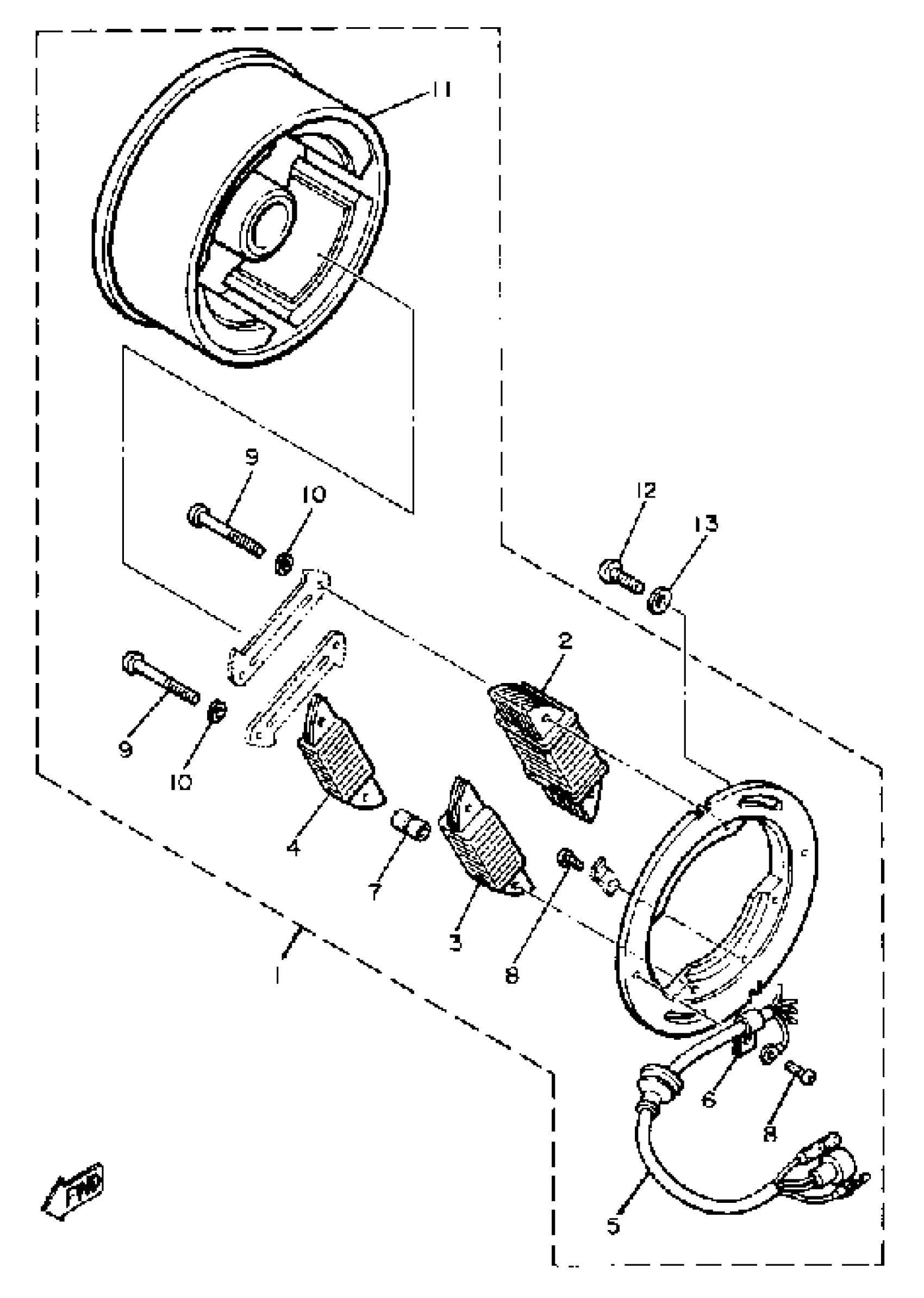

Find the part on the C - D - I - Magneto diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SRX440E C - D - I - Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI MAGNETO ASSEMBLY

(8R9-85500-10-00)

1
Out of stock

2

. COIL, LIGHTING 1

8K4-85513-10-00

1
Out of stock

3

. COIL, CHARGE

482-85520-10-00

1
Out of stock

4

. COIL, CHARGE

8G9-85541-10-00

1
Out of stock

5

LEAD WIRE ASSEMBLY

(8M6-85515-10-00)

1
Out of stock

6

. CLAMP

109-81328-11-00

1
Out of stock

7

SPACER

(8M6-81318-10-00)

1
Out of stock

8

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

9

SCREW, PAN

98507-05040-00

1

$6.68

In stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

ROTOR ASSEMBLY

(8M6-85550-10-00)

1
Out of stock

12

SCREW, BIND (705)

98980-06016-00

1
Out of stock

13

WASHER, PLATE 6261117600

90201-06043-00

1
Out of stock
