1981 Yamaha SRX440E Electrical 1 Diagram

← All diagrams

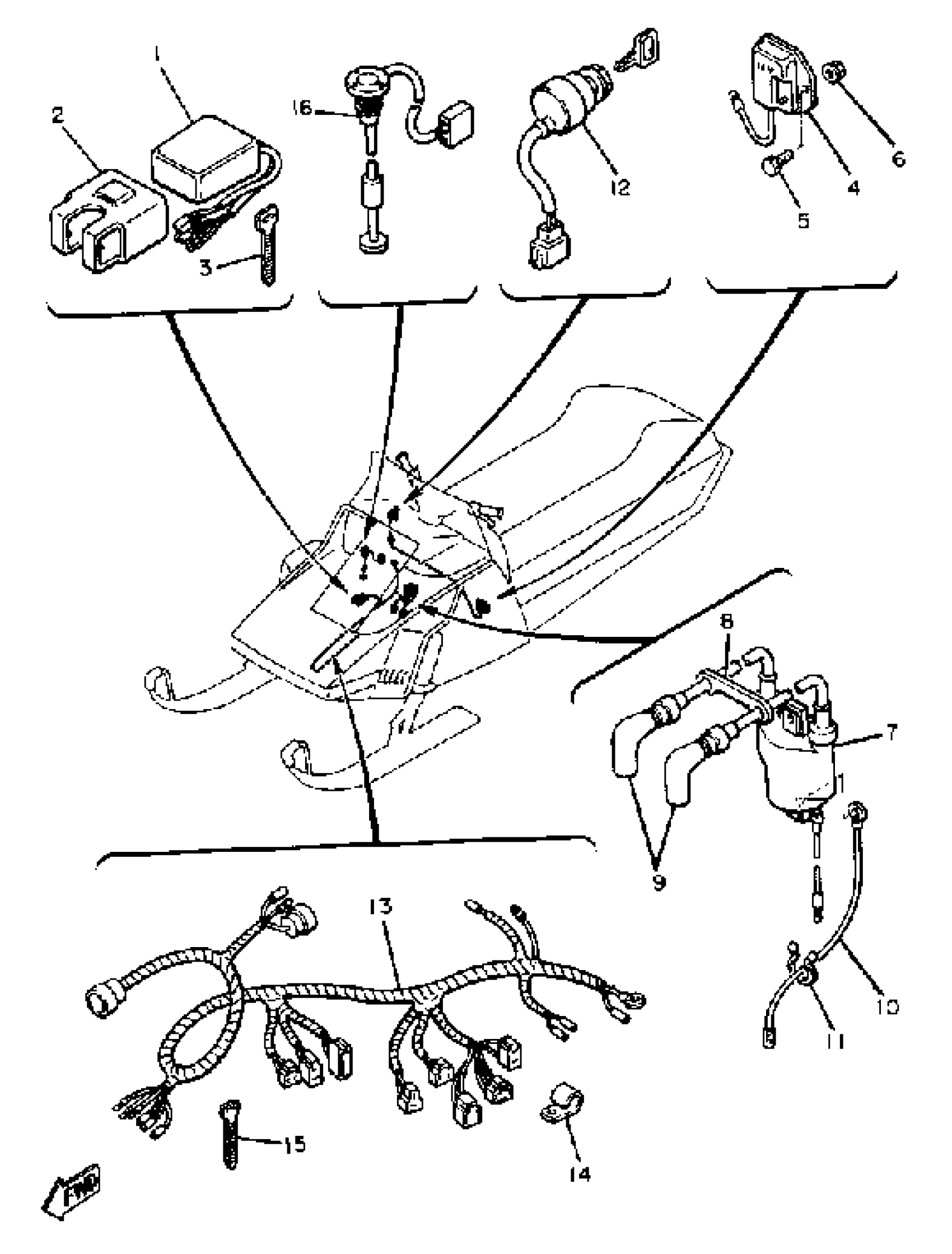

Find the part on the Electrical 1 diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SRX440E Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

8K4-85540-10-00

1
Out of stock

2

BAND

2A7-85546-00-00

—

$20.40

In stock

3

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

4

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

1

$50.55

In stock

5

BOLT(8CP)

97017-06014-00

1

$5.12

In stock

6

NUT, NYLON

95707-06300-00

1

$3.20

In stock

7

IGNITION COIL ASSEMBLY

8M6-82310-T0-00

1
Out of stock

8

CLAMP(664)

90464-07015-00

—

$3.80

In stock

9

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

10

WIRE, SUB-LEAD

J42-82318-00-00

1

$4.15

In stock

11

CLAMP

90465-18147-00

1

$5.78

In stock

12

MAIN SWITCH ASSY

8K4-82510-20-00

1
Out of stock

13

WIRE HARNESS ASSEMBLY

(8R9-82590-20-00)

1
Out of stock

14

CLAMP

90465-08028-00

1

$4.62

In stock

15

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

16

OIL LVL GAUGE ASSEMBLY

8M6-85720-00-00

1
Out of stock
