1981 Yamaha SRX440E Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

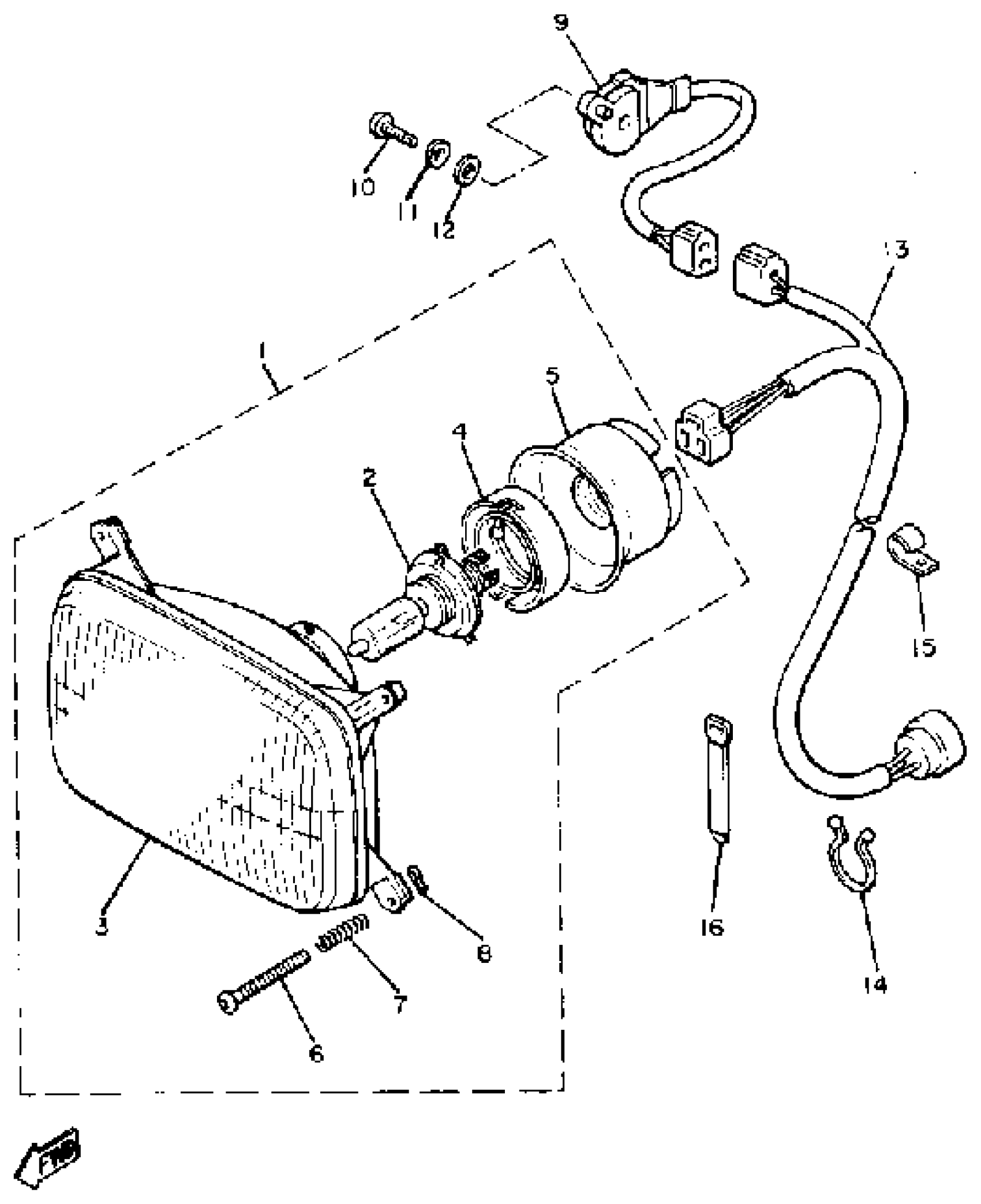

1981 Yamaha SRX440E Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

8M6-84310-00-00

1
Out of stock

2

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

3

LENS ASSY

8A7-84320-00-00

—

$49.02

In stock

4

HOLDER, SOCKET

8A7-84312-00-00

1
Out of stock

5

COVER, SOCKET

8A7-84397-01-00

—

$20.35

In stock

6

SCREW, ADJUSTING

8M6-84331-00-00

1

$14.80

In stock

7

SPRING, ADJUST SCREW

8A5-84332-00-00

1

$7.40

In stock

8

CLIP

8K4-84374-00-00

1

$6.82

In stock

9

LIGHT SWITCH ASSEMBLY (8M6-82520-00)

8M6-82520-01-00

1
Out of stock

10

SCREW, PANHEAD (A93)

98580-05525-00

1

$1.54

In stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

13

CORD, HEADLIGHT

8X6-84359-00-00

1
Out of stock

14

CLAMP (3Y2)

90464-16039-00

1
Out of stock

15

CLAMP

90465-06013-00

1
Out of stock

16

BAND

341-26397-01-00

1
Out of stock
