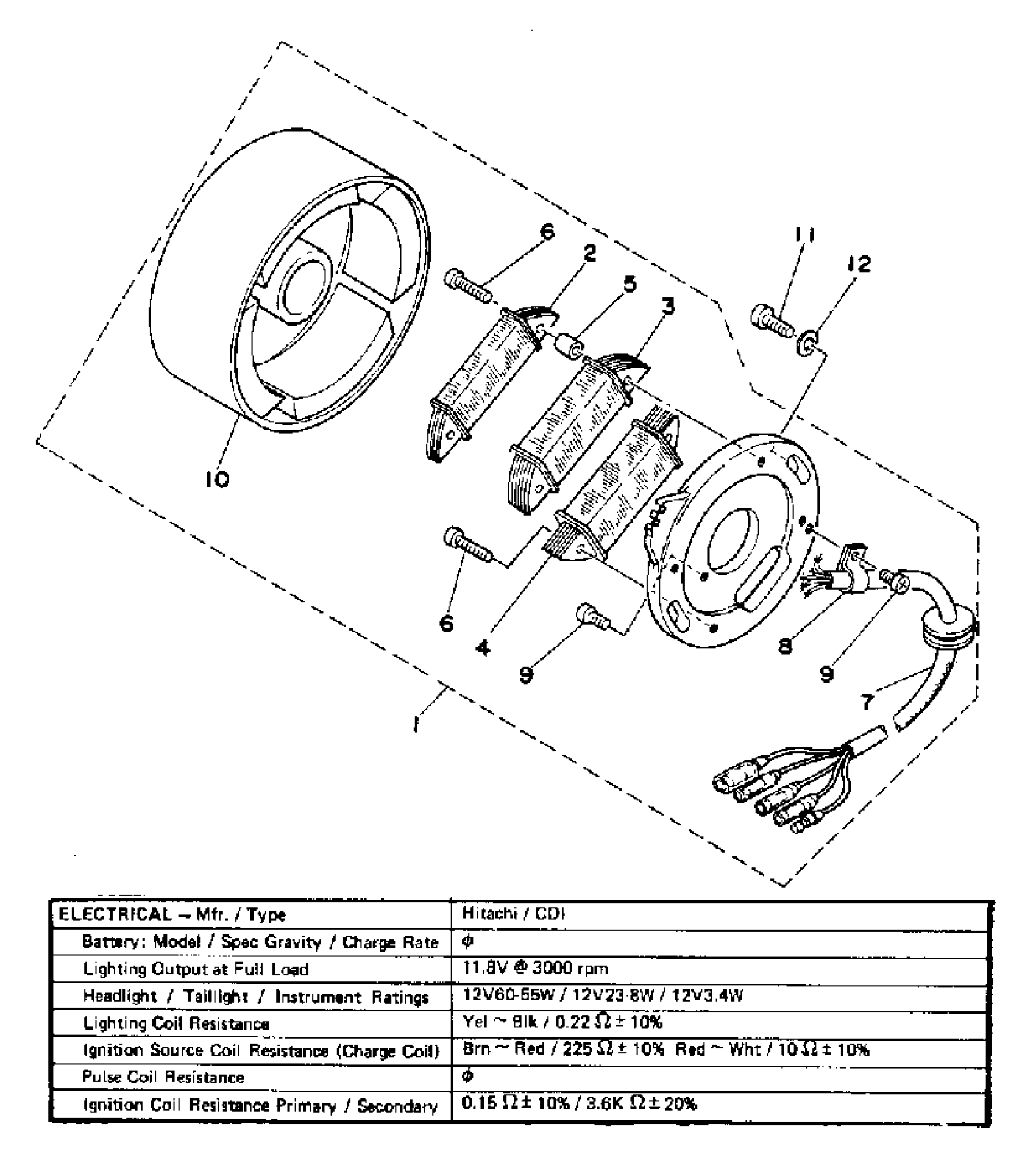

Find the part on the CDI Magneto diagram for your 1980 Yamaha SRX440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SRX440D CDI Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI MAGNETO ASSEMBLY

(8K2-85500-10-00)

1
Out of stock

2

. COIL, CHARGE

8G9-85541-10-00

1
Out of stock

3

. COIL SOURCE 2

8G9-85512-10-00

1
Out of stock

4

. COIL, LIGHTING 1

8F2-85513-10-00

1
Out of stock

5

. SPACER

647-81318-10-00

1
Out of stock

6

SCREW, PAN

98507-05035-00

1

$6.69

In stock

7

LEAD WIRE ASSEMBLY

(8G9-85515-10-00)

1
Out of stock

8

. CLAMP

109-81328-11-00

1
Out of stock

9

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

10

ROTOR ASSEMBLY

(8K2-85550-10-00)

1
Out of stock

11

SCREW(3JM)

90149-06306-00

1

$2.80

In stock

12

WASHER, PLATE 6261117600

90201-06043-00

1
Out of stock
