1980 Yamaha SRX440D Electrical 1 Diagram

← All diagrams

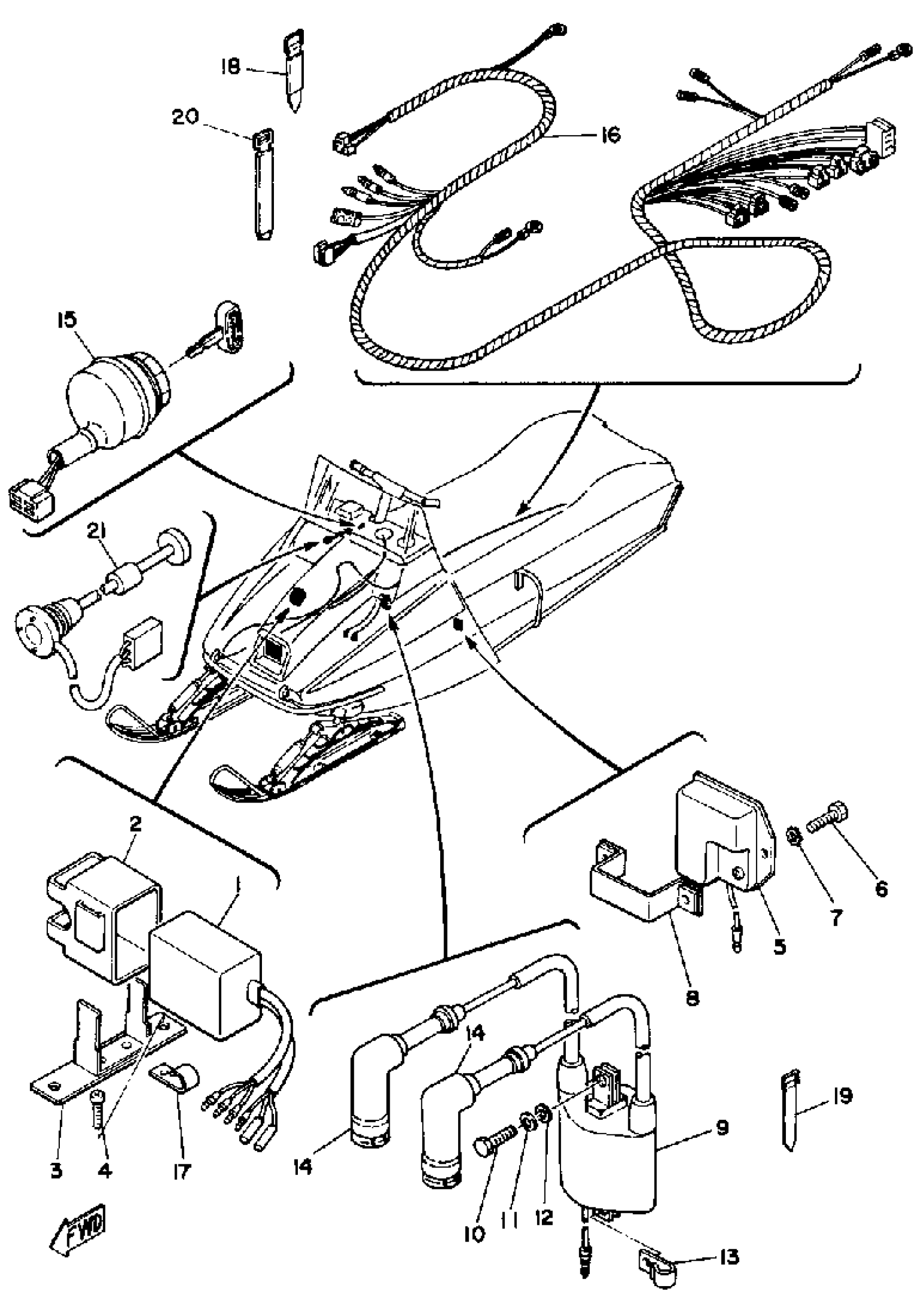

Find the part on the Electrical 1 diagram for your 1980 Yamaha SRX440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SRX440D Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

8K2-85540-10-00

1
Out of stock

2

BAND

2A7-85546-00-00

—

$20.40

In stock

3

BRACKET

(8K2-85542-00-00)

1
Out of stock

4

SCREW, BIND

98903-05010-00

1
Out of stock

5

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

1

$50.55

In stock

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

7

WASHER, TOOTH

92901-06400-00

1
Out of stock

8

PLATE, REG FITTING

8G6-81915-00-00

1
Out of stock

9

IGNITION COIL ASSEMBLY

8G9-82310-11-00

1
Out of stock

10

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

13

CLAMP(4MX)

90465-06376-00

1

$7.08

In stock

14

PLUG CAP ASSEMBLY

8J0-82370-10-00

1
Out of stock

15

MAIN SWITCH ASSY

8R4-82510-20-00

1

$109.02

In stock

16

WIRE HARNESS ASSEMBLY

8K2-82590-20-00

1
Out of stock

17

CLAMP

90465-06013-00

1
Out of stock

18

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

19

BAND

341-26397-01-00

1
Out of stock

20

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

21

OIL LEVEL GAUGE ASSY

4HV-85720-03-00

—

$36.15

In stock
