1980 Yamaha SRX440D Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1980 Yamaha SRX440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

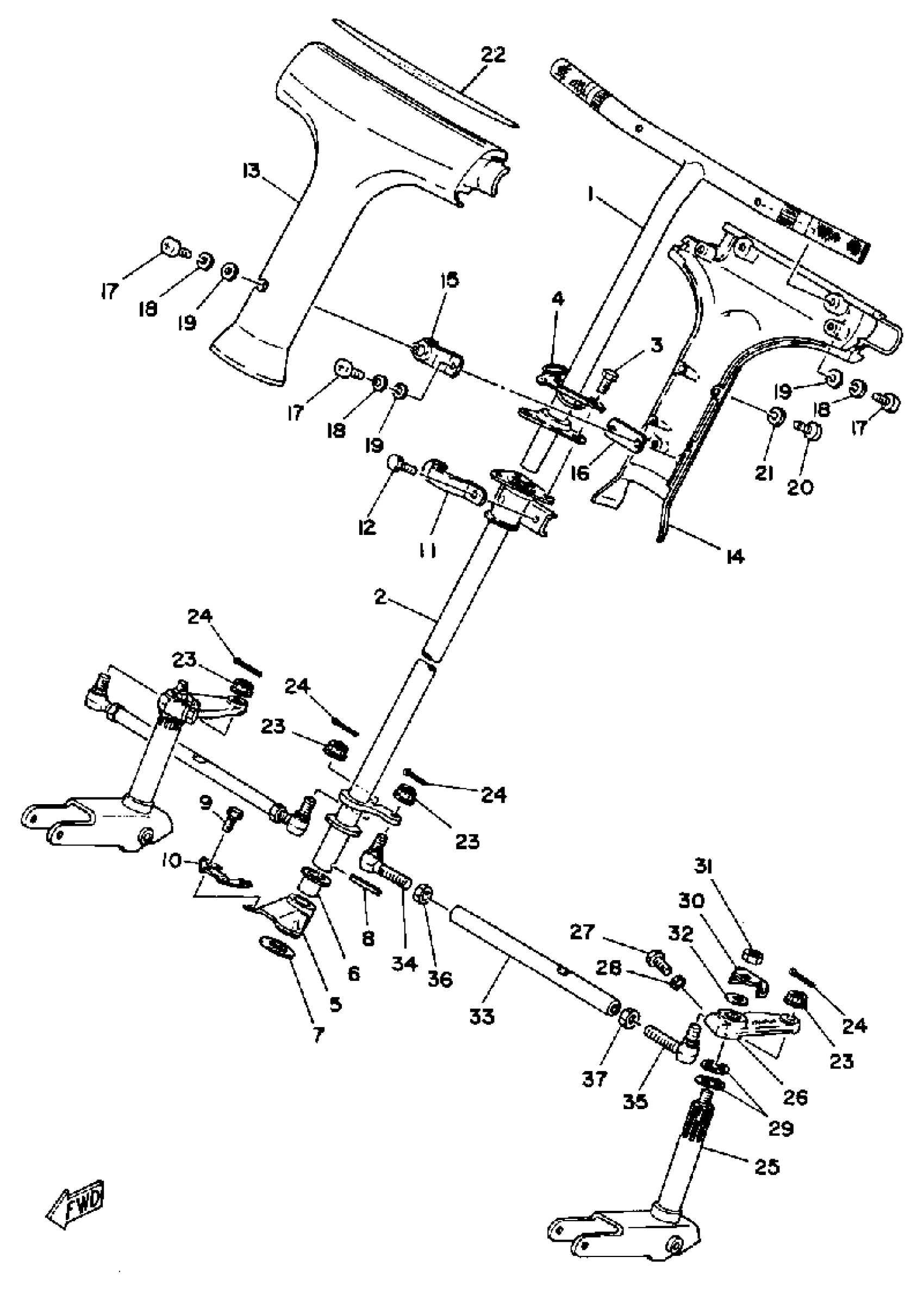

1980 Yamaha SRX440D Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

8G9-23811-00-00

1
Out of stock

2

COLUMN, STEERING 2

8E7-23813-00-00

1
Out of stock

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

4

WASHER, LOCK 1

(888-23894-00-00)

1
Out of stock

5

BRACKET, STRG LOWERLOWER

8E7-23868-00-00

1
Out of stock

6

BEARING, STRG LOWERLOWER

8E7-23875-00-00

1
Out of stock

7

BEARING, STEERING

(856-23812-00-00)

1
Out of stock

8

PIN, SPRING

91609-60040-00

1
Out of stock

9

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

10

WASHER, LOCK 2

(8E7-23895-00-00)

1
Out of stock

11

WASHER, LOCK

90215-06054-00

1
Out of stock

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

13

PAD, STEERING

(8G9-23815-00-00)

1
Out of stock

14

PAD, STEERING

8G9-23817-00-00

1
Out of stock

15

BRACKET 1

8G9-23881-00-00

1
Out of stock

16

BRACKET 2

(8G9-23882-01-00)

1
Out of stock

17

SCREW, PAN

98517-05012-00

—

$3.91

In stock

18

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

19

WASHER(1RW)

92907-05600-00

—
Out of stock

20

SCREW, PAN HEAD

98517-04012-00

—

$3.28

In stock

21

WASHER(6TA)

92907-04100-00

—

$5.98

In stock

22

EMBLEM

(8K2-23819-00-00)

1
Out of stock

23

NUT, CASTLE

90171-10018-00

1
Out of stock

24

PIN, COTTER(6L5)

91490-25030-00

—

$2.85

In stock

25

COLUMN, SKI 1

8G9-23853-00-00

1
Out of stock

26

ARM, OUTSIDE 1

(8F2-23851-00-00)

1
Out of stock

27

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

28

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

29

WASHER, WAVE (878)

90206-20037-00

—
Out of stock

30

WASHER, LOCK

90215-10096-00

1
Out of stock

31

NUT(3BM)

95314-10600-00

—

$1.74

In stock

32

WASHER, PLATE (3J6)

90201-100A1-00

—

$6.71

In stock

33

ROD, STEERING RELAY

8BF-23821-00-00

1
Out of stock

34

JOINT, UNIVERSAL 1

888-23841-91-00

1
Out of stock

35

JOINT, UNIVERSAL 2

888-2345-91-00

1
Out of stock

36

NUT (682)

95380-10700-00

1

$5.78

In stock

37

NUT, HEXAGON (8A5)

90170-10186-00

—

$7.60

In stock
