1980 Yamaha SRX440D Speedometer Gear Unit Diagram

← All diagrams

Find the part on the Speedometer Gear Unit diagram for your 1980 Yamaha SRX440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

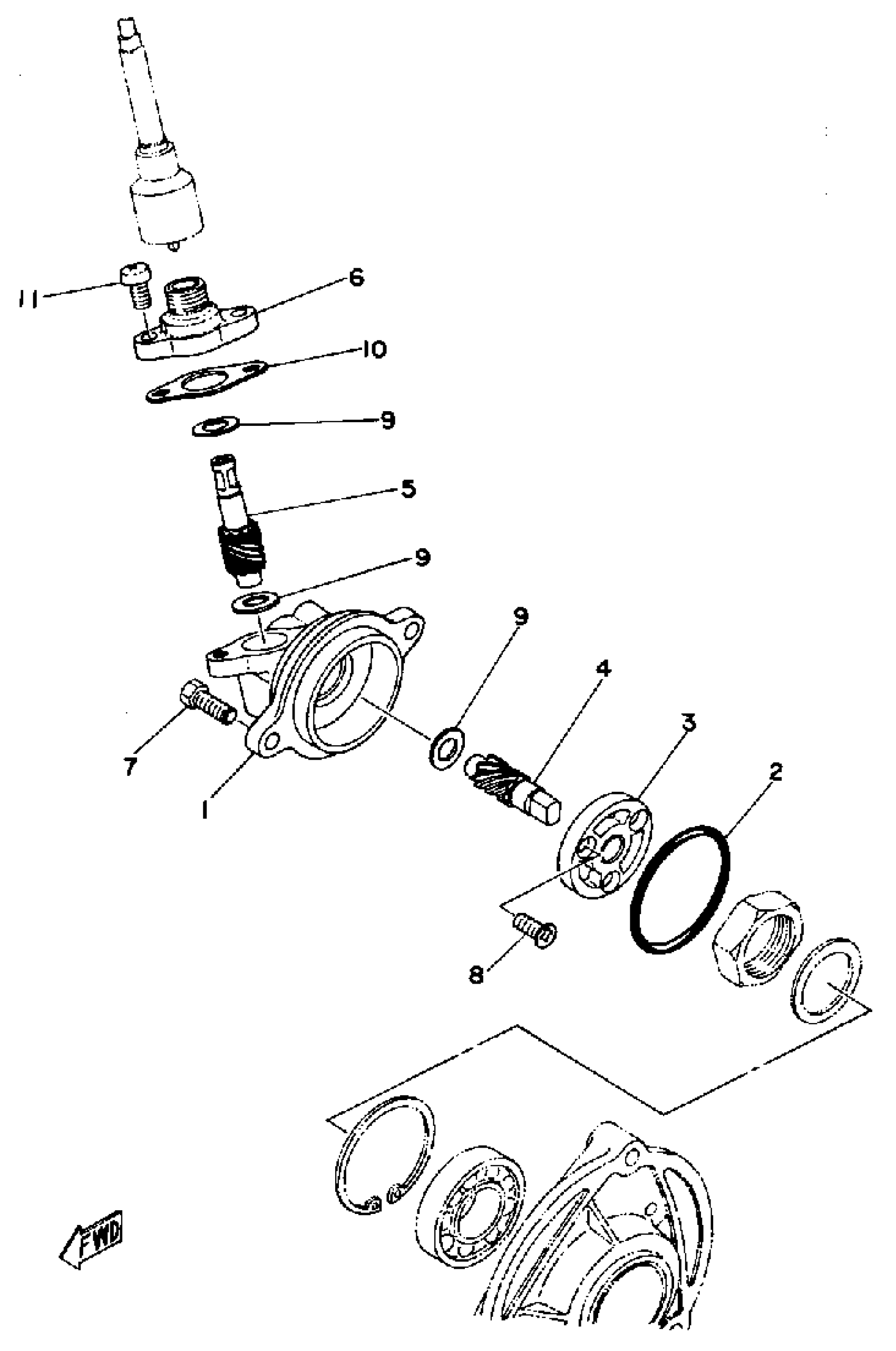

1980 Yamaha SRX440D Speedometer Gear Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING

8E6-47711-10-00

1
Out of stock

2

O-RING

93210-43141-00

1
Out of stock

3

JOURNAL

853-47712-10-00

1
Out of stock

4

GEAR, DRIVE

8A5-47731-00-00

1
Out of stock

5

GEAR, DRIVEN

8A5-47741-00-00

1
Out of stock

6

COVER, METER HOUSING

8E3-47721-10-00

—

$18.34

In stock

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

8

SCREW, FLAT

98707-04012-00

1

$1.43

In stock

9

SHIM

810-47717-10-00

1
Out of stock

10

GASKET

810-47727-11-00

1
Out of stock

11

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock
