1976 Yamaha SRX440 Front Axle Diagram

← All diagrams

Find the part on the Front Axle diagram for your 1976 Yamaha SRX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

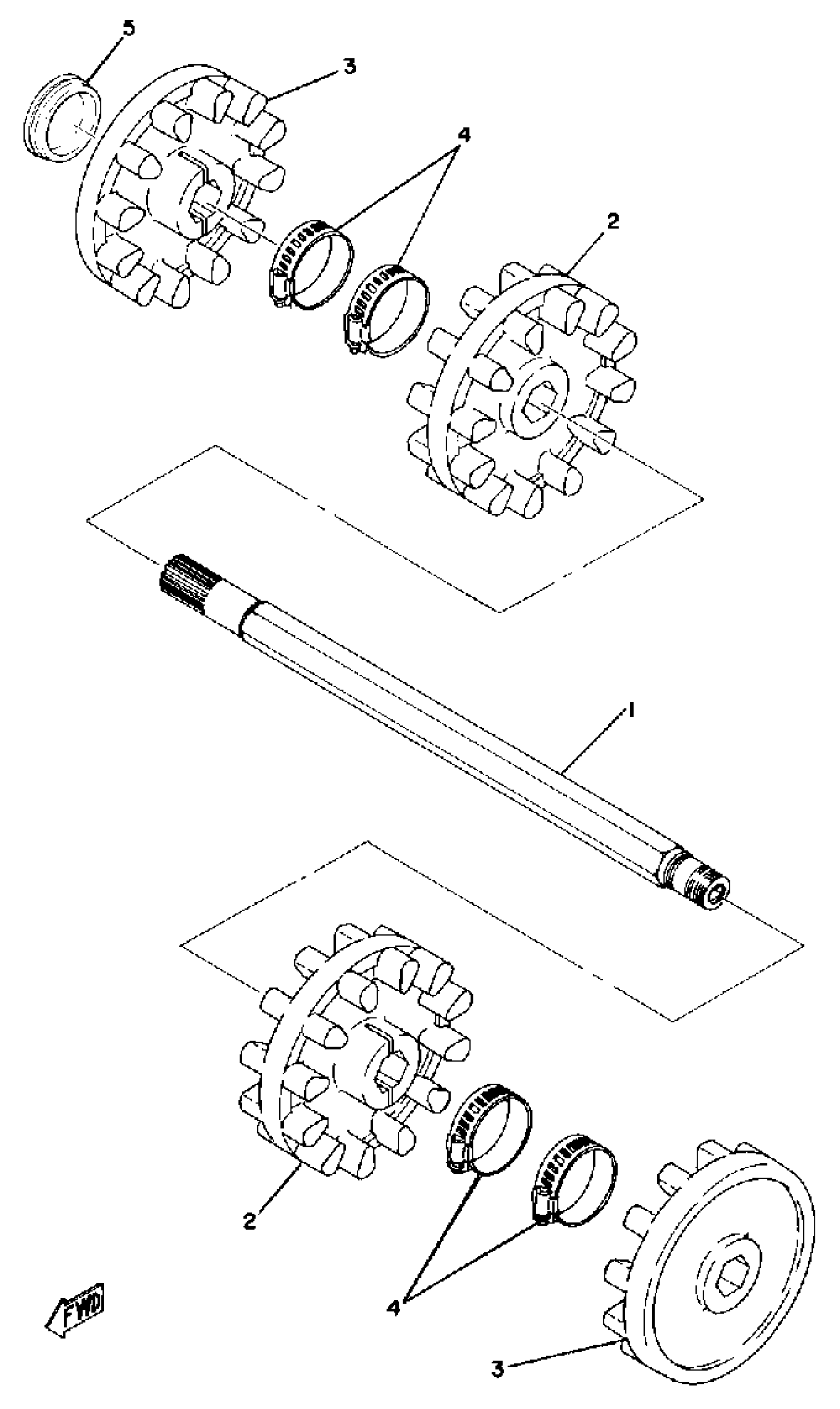

1976 Yamaha SRX440 Front Axle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, FRONT

8A5-W4751-00-00

1
Out of stock

2

WHEEL, SPROCKET 2

8A7-47532-00-00

1
Out of stock

3

WHEEL, SPROCKET 2

8A7-47532-00-00

1
Out of stock

4

BAND (MADE IN CANADA)

90460-50079-00

—
Out of stock

5

CAP (NOT AVAIL)

810-47552-00-00

1
Out of stock
