1976 Yamaha SRX440 Secondary Sheave Diagram

← All diagrams

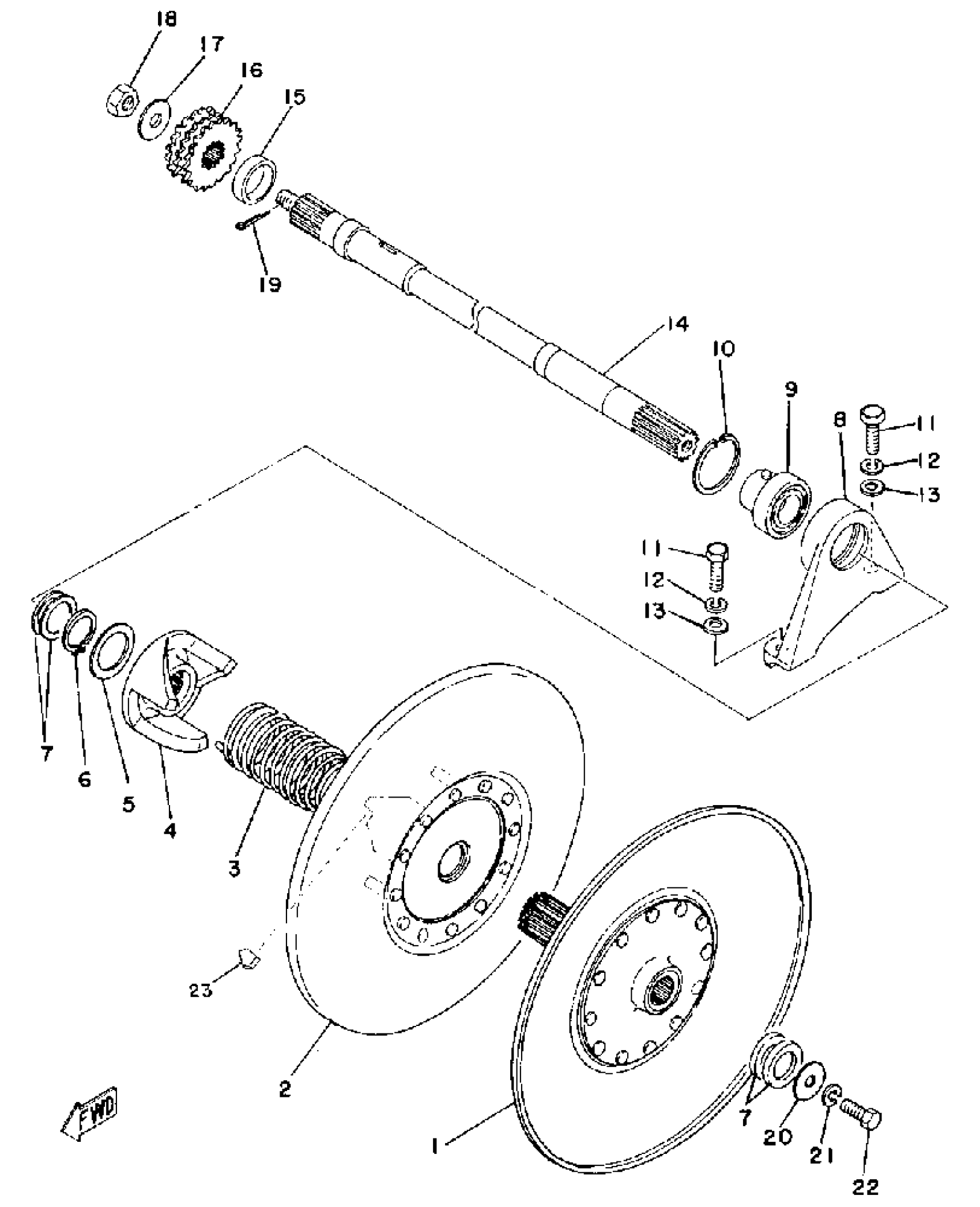

Find the part on the Secondary Sheave diagram for your 1976 Yamaha SRX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha SRX440 Secondary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEC FXD SHVSHEAVE COMP.

8A5-17660-01-00

1
Out of stock

2

SEC SLIDING SHEAVE

(8F2-17670-00-00)

1
Out of stock

3

SPRING, TORSION

90508-45286-00

1
Out of stock

4

SEAT, SEC SPRINGSPRING

8A5-17684-01-00

1
Out of stock

4

SEAT, SEC SPRING

8A7-17684-00-00

1
Out of stock

5

SHIM (856-17687-00)

90564-34003-00

1
Out of stock

6

CIRCLIP(86F)

93440-34170-00

1

$6.86

In stock

7

WASHER, PLATE (888)

90201-25526-00

1
Out of stock

7

WASHER, PLATE (888)

90201-25527-00

1

$7.60

In stock

7

SPACER (25-36-5.0)

99999-01011-00

1
Out of stock

8

HOUSING, BEARING

878-47631-00-00

1
Out of stock

9

BEARING

888-17678-00-00

1
Out of stock

10

CIRCLIP(26H)

99009-52500-00

1

$10.74

In stock

11

BOLT (8J7)

97013-10030-00

1

$8.91

In stock

12

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

13

WASHER, PLATE 3711117500

90201-10124-00

—

$6.58

In stock

14

SHAFT, SECONDARY

(8A7-17680-00-00)

1
Out of stock

15

COLLAR

90387-25259-00

1
Out of stock

16

SPRKT, CHAIN DR 15T

(8A8-17682-50-00)

1
Out of stock

16

SPRKT, CHAIN DR 16T

(8A8-17682-60-00)

1
Out of stock

16

SPRKT, CHAIN DR 16T

(8A8-17682-60-00)

1
Out of stock

16

SPRKT, CHAIN DR 17T

(8A8-17682-70-00)

1
Out of stock

16

SPRKT, CHAIN DR 18T

(8A8-17682-80-00)

1
Out of stock

16

SPRKT, CHAIN DR 18T

(8A8-17682-80-00)

1
Out of stock

16

SPRKT, CHAIN DR 19T

8A8-17682-90-00

1
Out of stock

17

WASHER, PLATE

90201-14319-00

1
Out of stock

18

NUT(6TC)

95337-14600-00

—

$10.25

In stock

19

PIN, COTTER

91490-30030-00

—

$7.15

In stock

20

WASHER, PLATE (856)

90201-10321-00

—

$5.43

In stock

21

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

22

BOLT(6TD)

97017-10025-00

—

$6.82

In stock

23

SHOE, RAMP

8A5-17688-00-00

1
Out of stock
