1976 Yamaha SRX440 Primary Sheave Diagram

← All diagrams

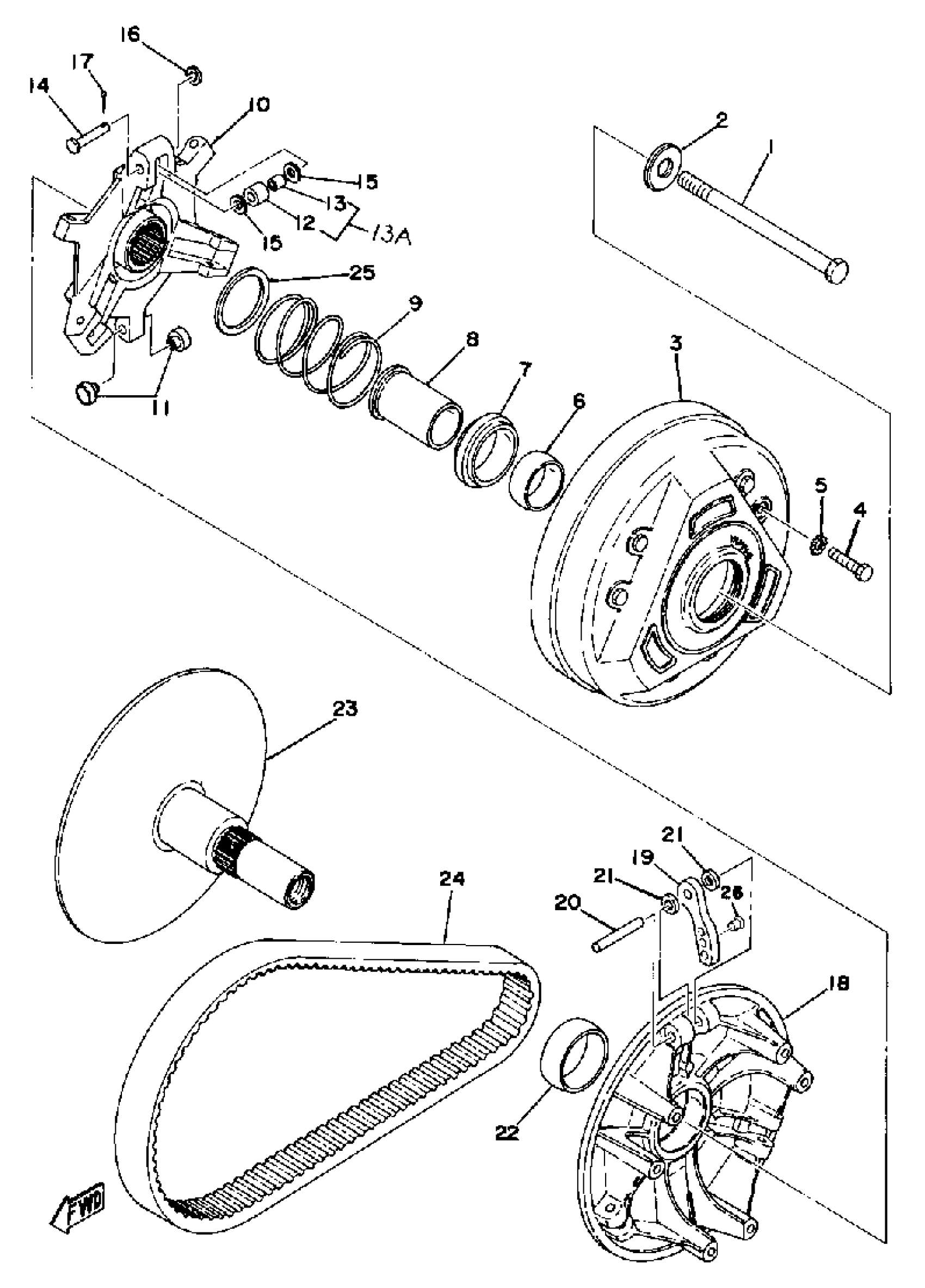

Find the part on the Primary Sheave diagram for your 1976 Yamaha SRX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha SRX440 Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT

90101-13406-00

1
Out of stock

2

SPACER 1

8J0-17654-00-00

—

$6.58

In stock

3

PRI. SHEAVE CAP

8E7-W1762-00-00

1
Out of stock

4

BOLT(62J)

97013-06070-00

—

$3.37

In stock

5

WASHER, TOOTH

92901-06400-00

1
Out of stock

6

COLLAR (90387-28590)

99999-00949-00

1
Out of stock

7

SEAT, SPRING

8E7-17644-02-00

1
Out of stock

8

COLLAR (90387-28590)

99999-00949-00

1
Out of stock

9

SPRING, COMPRESSION

90501-50396-00

1
Out of stock

9

SPRING, COMPRESSION

(90501-55397-00)

1
Out of stock

9

SPRING, COMPRESSION

(90501-55404-00)

1
Out of stock

9

SPRING, COMPRESSION

90501-55419-00

1
Out of stock

10

SPIDER

8J0-17627-00-00

1
Out of stock

11

COLLAR

13A--

1
Out of stock

11

SLIDER

8F2-17653-00-00

1

$10.03

In stock

14

PIN, CLEVIS

90240-06056-00

1
Out of stock

15

WASHER (8J0)

90202-06113-00

—

$3.32

In stock

16

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

17

PIN, COTTER

91490-20025-00

—

$1.31

In stock

18

SHEAVE, PRI SLIDING

8E7-17621-01-00

1
Out of stock

19

WEIGHT, CLUTCH

8A7-17632-11-00

1
Out of stock

19

WEIGHT, CLUTCH

(8A8-17632-10-00)

1
Out of stock

20

PIN, DOWEL (8V8)

93607-44190-00

—
Out of stock

21

SPACER

90560-07157-00

1
Out of stock

22

BUSH, SPEC''L SHAPE

90389-41018-00

1
Out of stock

23

PRI FIXED SHEAVE

8F2-17610-00-00

1
Out of stock

24

V-BELT

89X-17641-01-00

1

$48.52

In stock

25

WASHER, PLATE

90201-45592-00

1
Out of stock

26

RIVET, CNTRSNK HD

90261-06016-00

1
Out of stock
