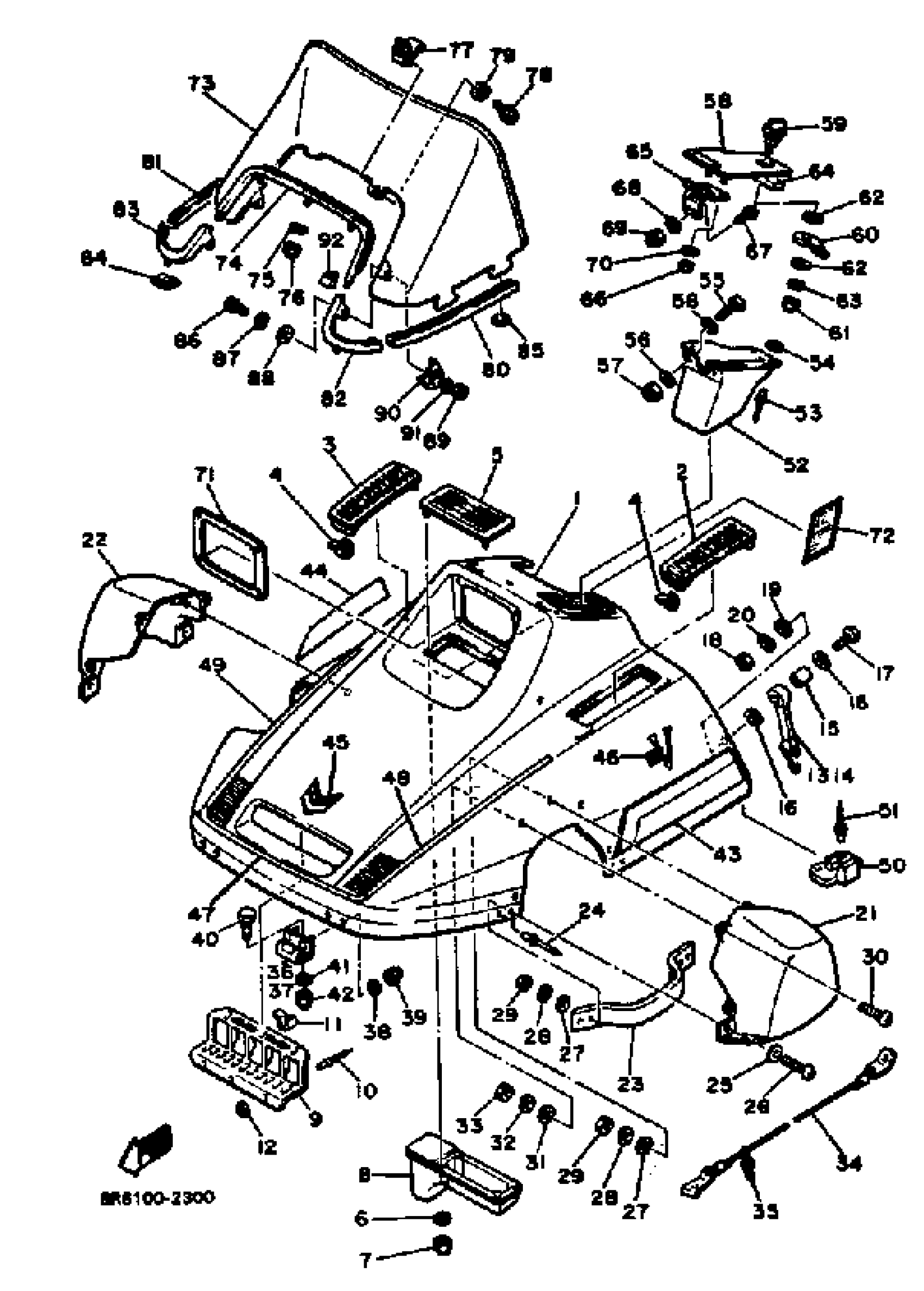

Find the part on the Shroud - Windshield SR540F diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR540D Shroud - Windshield SR540F Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASY

81G-W7711-00-00

1
Out of stock

2

LOUVER 3

8L9-77133-00-00

1
Out of stock

3

LOUVER 4

8L9-77134-00-00

1
Out of stock

4

CLIP

90468-05094-00

1
Out of stock

5

LOUVER 5 (83W-77109-00)

8L9-77109-00-00

1
Out of stock

6

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

7

NUT, NYLON

95707-05300-00

1

$2.74

In stock

8

INSULATOR

8K4-7712E-00-00

1
Out of stock

9

DUCT

8K4-77194-00-00

1
Out of stock

10

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

11

CLIP(80V)

90468-05176-00

—

$14.92

In stock

12

WASHER, PLATE

90201-04027-00

1
Out of stock

13

LATCH ASSEMBLY

8N8-77170-00-00

1
Out of stock

14

LATCH ASSEMBLY

8G5-77170-00-00

1
Out of stock

15

SPACER

90560-07007-00

1
Out of stock

16

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

17

SCREW, BINDING

98907-06030-00

—

$5.94

In stock

18

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

19

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

HOOD 1

8L0-77121-00-00

1
Out of stock

22

HOOD 2

8L0-77122-00-00

1
Out of stock

23

STAY 1

8L0-77125-00-00

1
Out of stock

24

RIVET (856)

90267-48014-00

—
Out of stock

25

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

26

SCREW, BINDING (8J0)

90154-05005-00

—
Out of stock

27

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

28

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

29

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

30

SCREW, BINDING

98907-06016-00

—

$7.14

In stock

31

WASHER, PLATE

90201-06M08-00

1
Out of stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

34

STOPPER, SHROUD

8K4-77118-00-00

1
Out of stock

35

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

36

HINGE ASSEMBLY

8L8-77140-00-00

1
Out of stock

37

HINGE ASSEMBLY 2

8L8-7714A-00-00

1
Out of stock

38

WASHER, PLATE

90201-067A6-00

1
Out of stock

39

NUT, NYLON

95707-06300-00

—

$3.20

In stock

40

BOLT(8CP)

97017-06014-00

—

$5.12

In stock

41

WASHER, PLATE (4L0)

90201-062A8-00

—

$6.23

In stock

42

NUT, NYLON

95707-06300-00

—

$3.20

In stock

43

ORNAMENT 1

8R6-77163-00-00

1
Out of stock

44

ORNAMENT 2

8R6-77164-00-00

1
Out of stock

45

EMBLEM 7

(8R6-77357-00-00)

1
Out of stock

46

EMBLEM 8

(8R6-77358-00-00)

1
Out of stock

47

STRIPE 1

(8R6-77281-00-00)

1
Out of stock

48

STRIPE 2

(8R6-77282-00-00)

1
Out of stock

49

STRIPE 3

(8R6-77283-00-00)

1
Out of stock

50

STOPPER

8K4-77188-00-00

1
Out of stock

50

GRAPHIC SET

(8R6-W0070-00-00)

1
Out of stock

51

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

52

LUGGAGE BOX

8K4-77391-00-00

1
Out of stock

53

RIVET, BLIND

90267-489UJ-00

1
Out of stock

54

WASHER, PLATE

90201-04027-00

1
Out of stock

55

SCREW, PAN

98517-06020-00

—
Out of stock

56

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

57

NUT, NYLON

95707-06300-00

—

$3.20

In stock

58

COVER, LUGGAGE BOX

8L9-77392-00-00

1
Out of stock

59

KNOB

8L9-77324-00-00

1
Out of stock

60

LEVER, ARM FITTING

8K4-77328-00-00

1
Out of stock

61

NUT, NYLON

95707-05300-00

1

$2.74

In stock

62

WASHER, PLAIN(735)

90201-10119-00

—
Out of stock

63

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

64

DAMPER 2

8K4-77374-00-00

1
Out of stock

65

HINGE ASSEMBLY

8K4-77470-00-00

1
Out of stock

66

NUT, CAP

95307-05800-00

—

$5.62

In stock

67

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

68

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

69

NUT, NYLON

95707-05300-00

1

$2.74

In stock

70

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

71

TRIM 1

8K4-77165-00-00

1
Out of stock

72

INDICATOR 3

8R6-77743-00-00

1
Out of stock

73

WINDSHIELD (8L0-77210-00)

8L0-77210-00-XX

1
Out of stock

74

TRIM, LOWER

8L0-77214-00-00

1
Out of stock

75

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

76

NUT, NYLON

95707-05300-00

1

$2.74

In stock

77

BRACKET, WNDSHLD R

8K4-77222-00-00

1
Out of stock

78

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

79

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

80

TRIM 3

8L0-77215-00-00

1
Out of stock

81

TRIM 4

8L0-77216-00-00

1
Out of stock

82

TRIM 5

8L0-77225-00-00

1
Out of stock

83

TRIM 6

8L0-77226-00-00

—

$62.00

In stock

84

NUT, SPRING(8AJ)

90183-05068-00

—

$7.46

In stock

85

FASTNER

82H-77223-00-00

—

$7.63

In stock

86

BOLT, HEXAGON

97313-05016-00

1
Out of stock

87

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

88

WASHER PLATE 829771780000

90201-05033-00

—
Out of stock

89

NUT, CAP

95307-05800-00

—

$5.62

In stock

90

WASHER, SPECIAL

8L9-77116-00-00

1
Out of stock

91

WASHER, PLATE

90201-06045-00

—

$6.18

In stock

92

CLAMP 2

8L0-77136-00-00

1
Out of stock
