1980 Yamaha SR540D Carburetor SR540D-E-F Diagram

← All diagrams

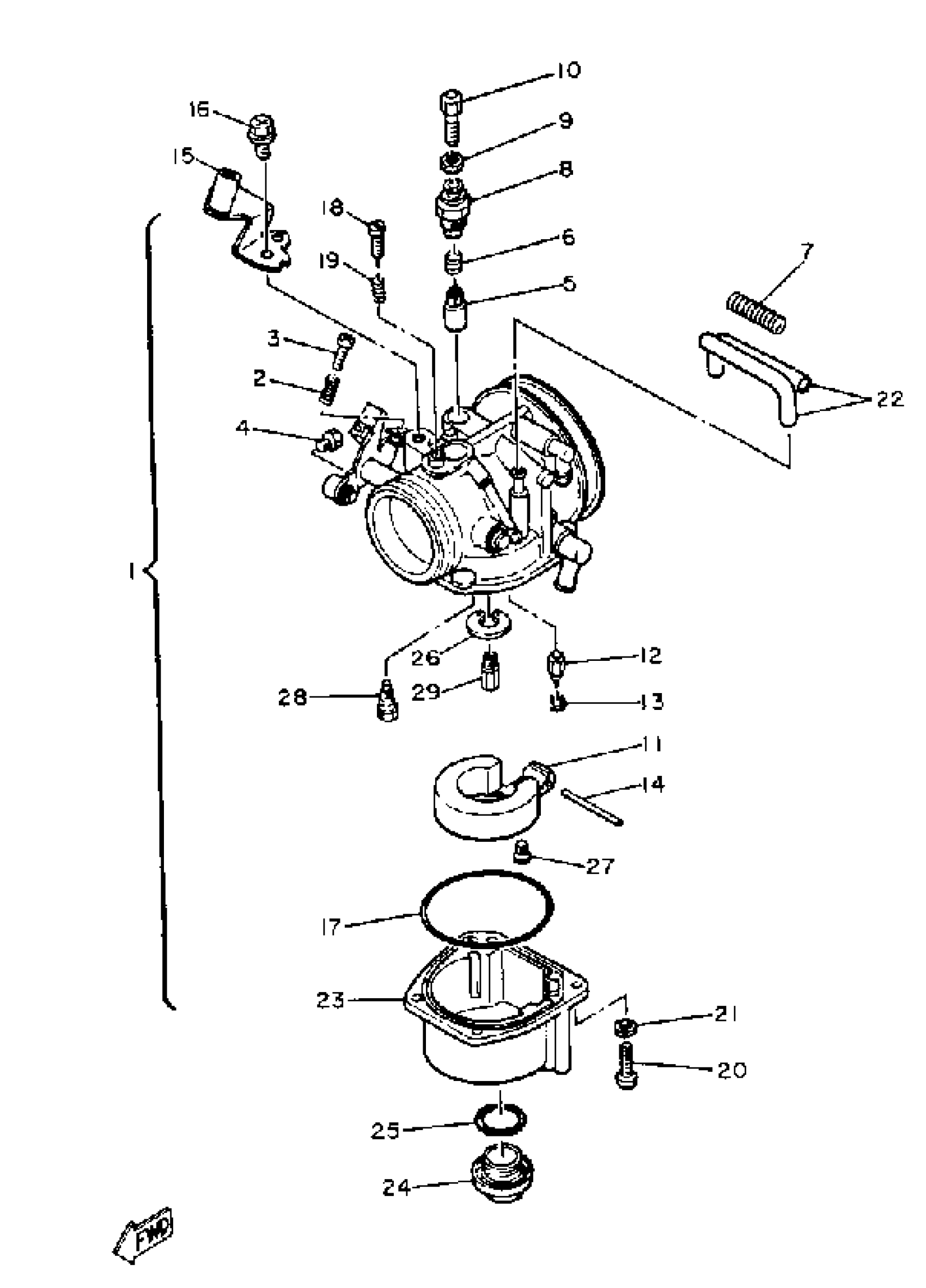

Find the part on the Carburetor SR540D-E-F diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR540D Carburetor SR540D-E-F Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(8L0-14101-00-00)

1
Out of stock

1

CARBURETOR ASSEMBLY 1

8L9-14101-00-00

1
Out of stock

1

CARBURETOR ASSEMBLY 1

8R6-14101-01-00

1
Out of stock

2

. SPRING, COMPRESSION

90501-12229-00

1
Out of stock

3

. SCREW, PAN HEAD

90157-04010-00

1
Out of stock

4

SCREW

(8F3-14591-00-00)

1
Out of stock

4

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

5

PLUNGER, STARTER

371-14993-60-00

1

$31.14

In stock

6

SPRING (8E7)

90501-08443-00

1

$8.63

In stock

7

. SPRING, COMPRESSION

90501-08535-00

1
Out of stock

8

CAP, PLUNGER

8A6-14969-00-00

1

$23.14

In stock

9

. NUT, CABLE ADJUSTING

8E7-14161-00-00

1
Out of stock

10

1

$19.06

In stock

11

FLOAT

8G6-14985-01-00

1

$32.43

In stock

12

VALVE,FLOAT

8E7-14546-01-00

1

$57.49

In stock

13

CLIP

633-14159-00-00

—

$13.88

In stock

14

. PIN, FLOAT ARM

663-14548-00-00

1

$5.34

In stock

15

. PLATE, STAY

8G6-14572-00-00

1
Out of stock

15

. PLATE, STAY

8R6-14572-00-00

1
Out of stock

16

. SCREW

8G6-14592-00-00

1
Out of stock

17

WASHER, FLOAT CHAMBER

8G6-14984-00-00

—

$16.62

In stock

18

SCREW, ADJUST

8G6-14521-00-00

—

$11.28

In stock

19

SPRING, COMPRESSION

90501-08214-00

—

$5.74

In stock

20

SCREW, PN/HD.W/WSHR

(97602-04114-00)

1
Out of stock

21

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

22

. NET, FILTER

8G6-14994-01-00

1
Out of stock

23

. BODY, FLOAT CHAMBER

8K4-14980-00-00

1
Out of stock

24

. ROD

8M7-14992-00-00

1
Out of stock

25

O-RING (8A6)

93210-19309-00

—

$4.91

In stock

26

CLIP

(8A5-14159-00-00)

1
Out of stock

27

SCREW, FLAT

98707-04008-00

1
Out of stock

28

. JET, main (#115)

8A6-14516-15-00

1
Out of stock

28

. JET, MAIN #120

8A6-14516-20-00

1
Out of stock

28

. JET #90

8G6-14948-23-00

1
Out of stock

29

. JET, MAIN #125

8A6-14516-25-00

1
Out of stock

29

. JET, MAIN #130

8A6-14516-30-00

1
Out of stock

29

. JET, MAIN #135

8A6-14516-35-00

1
Out of stock

29

. JET, MAIN #140

8A6-14516-40-00

1
Out of stock

29

. JET, MAIN #145

8A6-14516-45-00

1
Out of stock

29

. JET, MAIN #150

8A6-14516-50-00

1
Out of stock

29

. JET, MAIN #155

8A6-14516-55-00

1
Out of stock
