1980 Yamaha SR540D Crankshaft - Piston SR540D-E Diagram

← All diagrams

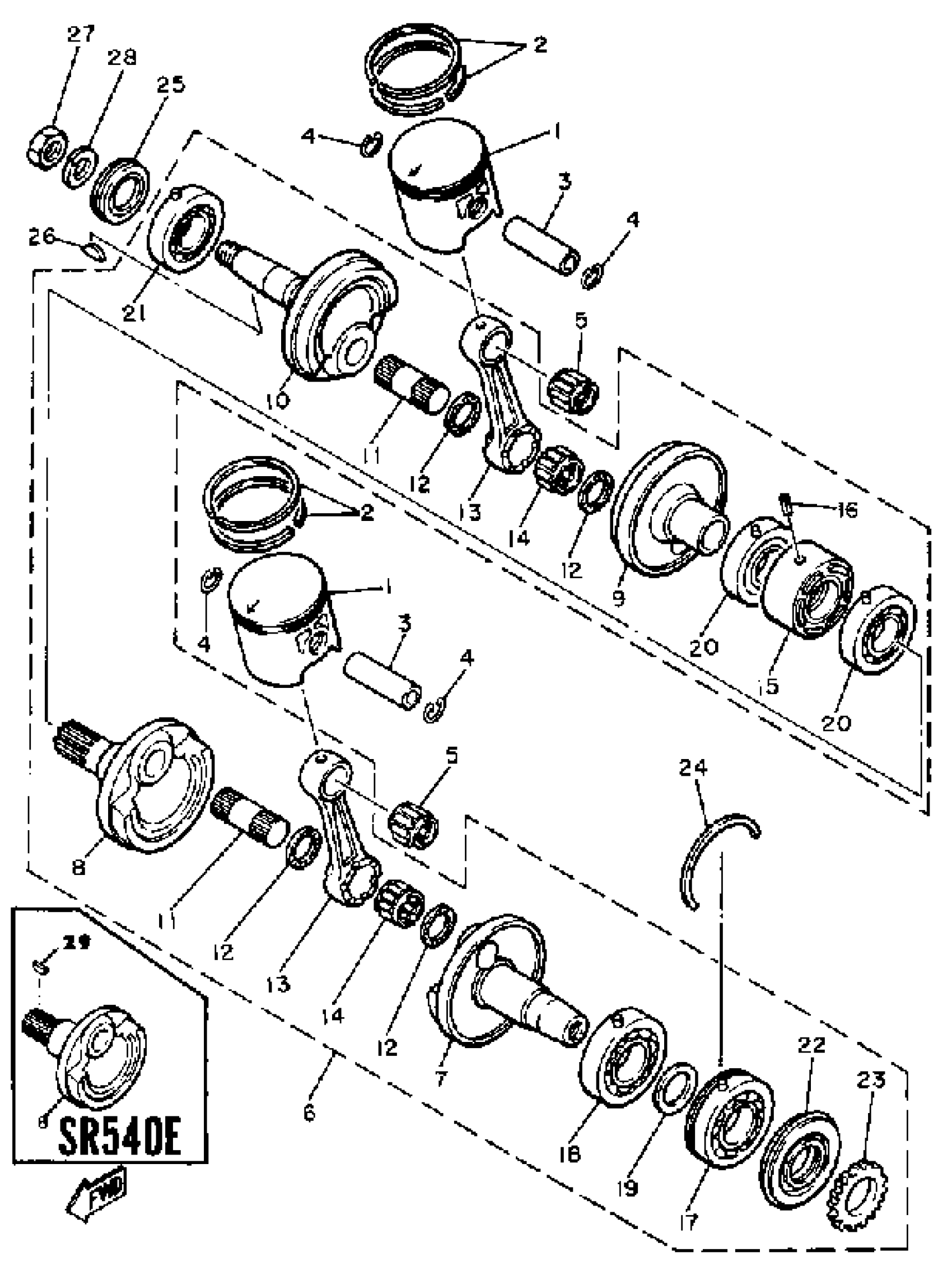

Find the part on the Crankshaft - Piston SR540D-E diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR540D Crankshaft - Piston SR540D-E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON (STD)

8R6-11631-00-95

1

$158.29

In stock

1

PISTON 1 O/S 0.25

8H8-11635-00-00

1
Out of stock

1

PISTON 2 O/S 0.50

8H8-11636-00-00

1
Out of stock

1

PISTON 3 O/S 0.75

8H8-11637-00-00

1
Out of stock

1

PISTON 4 O/S 1.00

8H8-11638-00-00

1
Out of stock

2

PISTON RINGSET STD

8F3-11601-00-00

1
Out of stock

2

PISTON RINGSET 1ST

8F3-11601-10-00

1
Out of stock

2

PISTON RINGSET 2ND

8F3-11601-20-00

1
Out of stock

2

PISTON RINGSET 3RD

8F3-11601-30-00

1
Out of stock

2

PISTON RINGSET 4TH

8F3-11601-40-00

1
Out of stock

3

PIN, PISTON

8H8-11633-00-00

1

$30.72

In stock

4

CIRCLIP, INNER

93450-20058-00

1
Out of stock

5

BRG,CYL-CAL ROLLER 25G KY

93310-320G0-00

1

$40.32

In stock

6

CRANKSHAFT ASSEMBLY

8R6-11400-01-00

1
Out of stock

7

. CRANK 1

8L0-11412-02-00

1
Out of stock

8

. CRANK 2

8H8-11422-00-00

1
Out of stock

8

CRANK 2

8H8-11422-01-00

—

$228.08

In stock

9

CRANK 3

(8H8-11432-00-00)

1
Out of stock

9

CRANK 3

8H8-11432-01-00

—

$223.88

In stock

10

. CRANK 4

8H8-11442-00-00

1
Out of stock

11

. PIN, CRANK 1

8H8-11681-00-00

1
Out of stock

12

WASHER (152-11685-00)

90209-24073-00

—

$10.08

In stock

13

ROD, CONNECTING

8R6-11651-00-00

—

$117.28

In stock

14

BRG,CYL-CAL ROLLER (8R6)

93310-524K4-00

—

$110.95

In stock

15

SEAL, LABYRINTH 1

8H8-11515-00-00

—

$35.92

In stock

16

PIN, SPRING (663)

91690-30010-00

1

$5.46

In stock

17

BEARING (8R6)

93306-30625-00

—

$76.42

In stock

18

BEARING (8R6)

93306-30625-00

—

$76.42

In stock

19

WASHER (8H0)

90201-34683-00

—
Out of stock

20

BEARING (8G8)

93306-20617-00

—

$69.94

In stock

21

BEARING (8G8)

93306-20617-00

—

$69.94

In stock

22

OIL SEAL (878).

93103-32095-00

—

$30.09

In stock

23

GEAR, PUMP DRIVE

8K2-13178-00-00

—

$36.28

In stock

24

CIRCLIP (8H8)

93440-78069-00

—

$5.72

In stock

25

OIL SEAL(83R)

93103-32156-00

—

$26.08

In stock

26

KEY, WOOD RUFF (324)

90280-05014-00

—

$7.82

In stock

27

NUT

90170-16425-00

—
Out of stock

28

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

29

KEY, WOOD RUFF (324)

90280-05014-00

—

$7.82

In stock
