1980 Yamaha SR540D Engine Bracket SR540D-E-F Diagram

← All diagrams

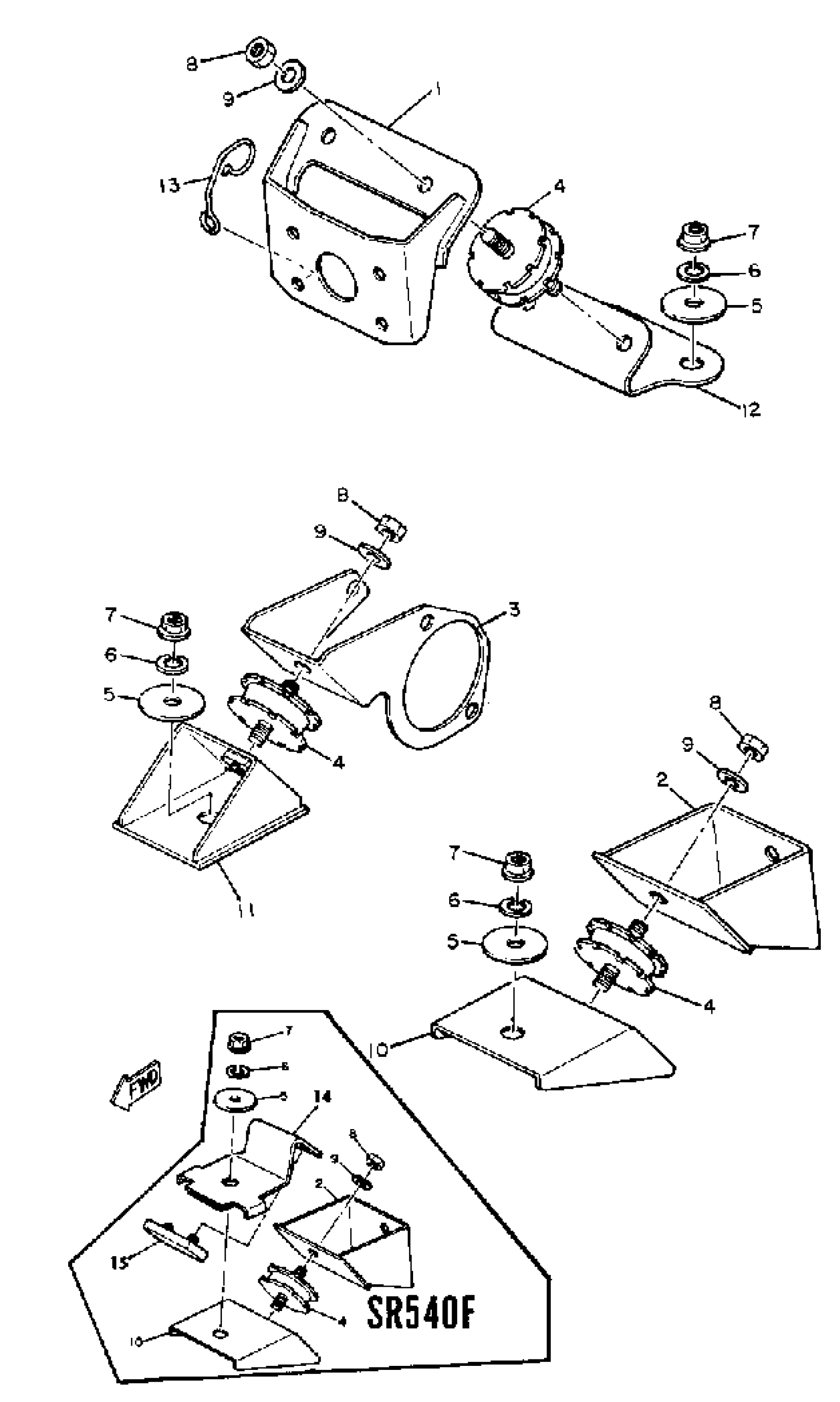

Find the part on the Engine Bracket SR540D-E-F diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR540D Engine Bracket SR540D-E-F Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

8K4-21411-00-00

1
Out of stock

2

BRACKET, ENGINE 2

8K4-21419-00-00

1
Out of stock

2

BRACKET, ENGINE 2

8R6-21419-00-00

1
Out of stock

3

BRACKET, ENGINE 3

8K4-21429-00-00

1
Out of stock

4

DAMPER 2

8K4-21486-00-00

1
Out of stock

4

DAMPER 2

8N8-21486-00-00

1
Out of stock

5

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

6

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

7

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

8

NUT(3BM)

95314-10600-00

1

$1.74

In stock

9

WASHER, PLATE

92990-10600-00

1

$2.61

In stock

10

BRACKET, FRONT LOWER 1

85L-21417-00-00

—

$14.48

In stock

11

BRACKET, FRONT UNDER 2

8H8-21418-01-00

—

$16.71

In stock

12

BRACKET, REAR LWR 1

8K4-21427-00-00

1
Out of stock

13

CLAMP (706)

90465-06100-00

1
Out of stock

14

STOPPER

8R6-2149E-00-00

1
Out of stock

15

DAMPER, STOPPER

8R6-2140A-00-00

1
Out of stock
