INTAKE SR540F

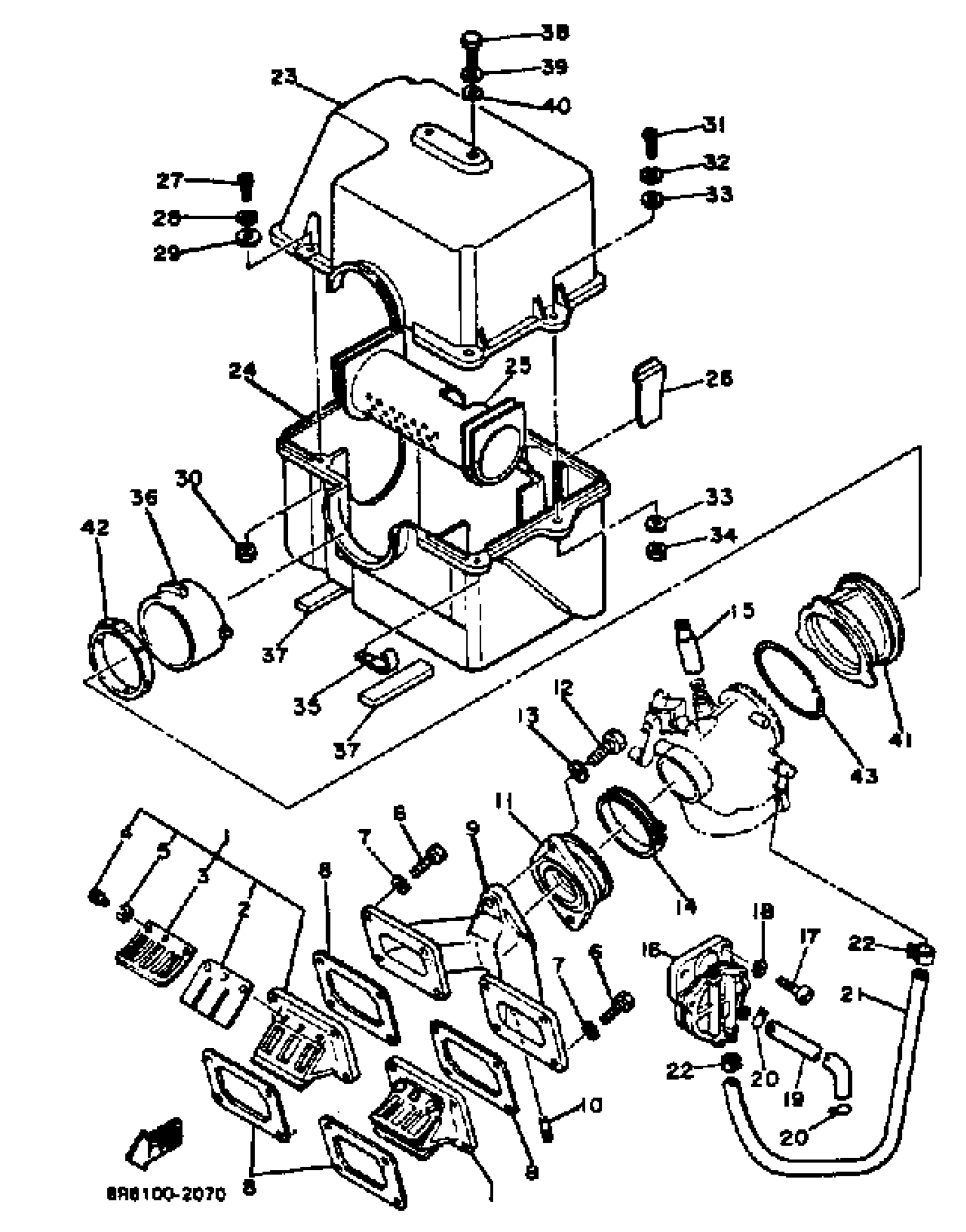

1980 Yamaha SR540D Intake SR540F Diagram
Find the part on the Intake SR540F diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
REED VALVE ASSEMBLY
3R5-13610-00-00
3
. STOPPER, REED VALVE
2X5-13616-00-00
9
JOINT, CARBURETOR
8R6-13565-00-00
10
NOZZLE
824-13552-00-00
11
MANIFOLD, INTAKE
8H8-13555-01-00
14
CLAMP, HOSE
90460-60084-00
15
BOOT
8J5-26352-00-00
16
FUEL PUMP ASSY
8K4-24410-01-00
21
HOSE
90446-11326-00
23
SILENCER, INTAKE 1
8K4-14431-00-00
24
SILENCER, INTAKE 2
8K4-14441-01-00
25
PIPE
8L0-14466-00-00
26
PLATE
8K4-14477-00-00
28
YBS67-5 WASHER, SPRING
92990-05100-00
29
WASHER, PLAIN (646)
92990-05600-00
36
PIPE
8N8-14465-00-00
37
DAMPER 1
8K4-14425-00-00
41
JOINT, AIR CLEANER1
8N8-14453-01-00
