1980 Yamaha SR540D Primary Sheave SR540D-E Diagram

← All diagrams

Find the part on the Primary Sheave SR540D-E diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

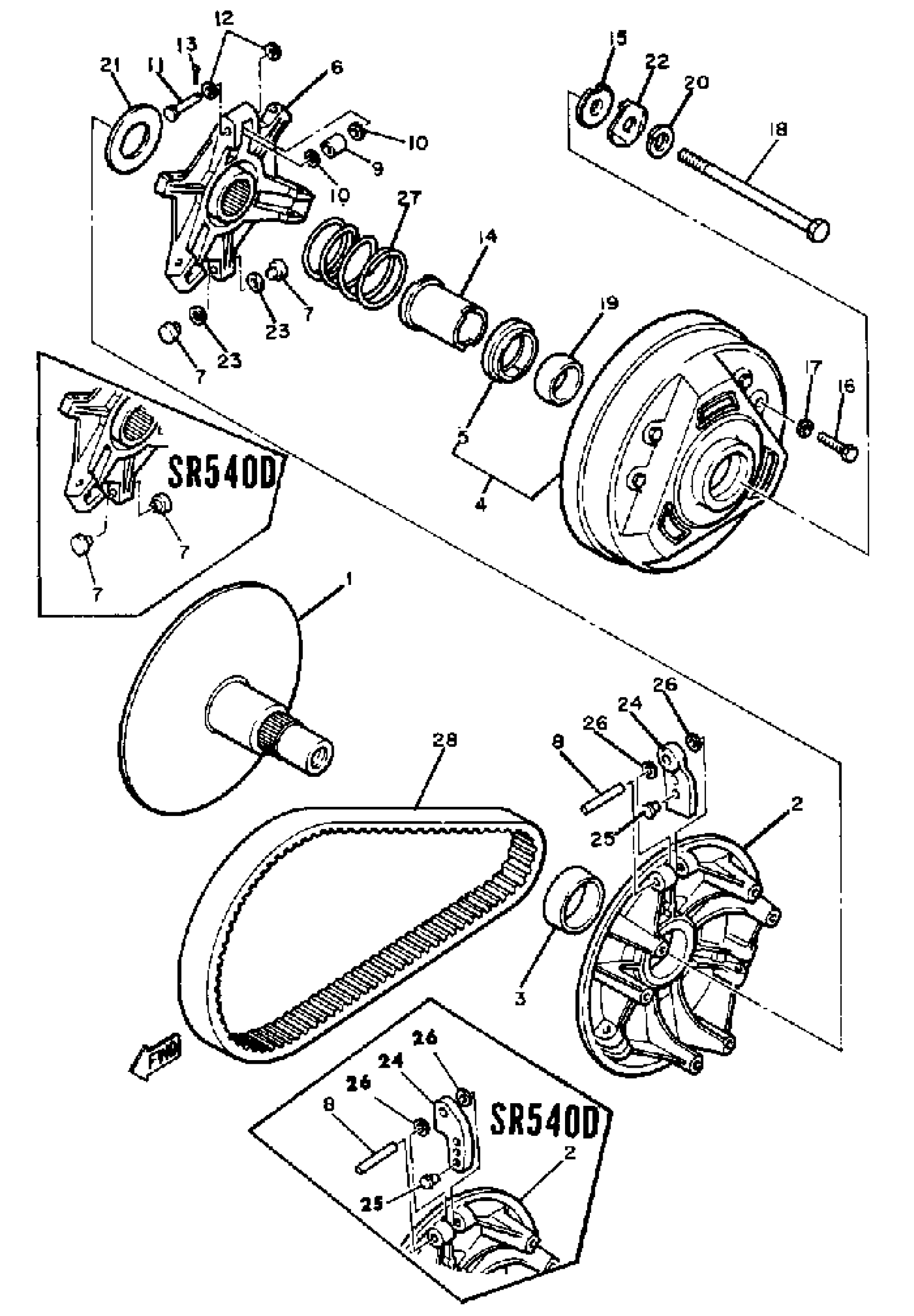

1980 Yamaha SR540D Primary Sheave SR540D-E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI FIXED SHEAVE

8J0-17610-01-00

1
Out of stock

2

SHEAVE, PRI SLIDING

8E7-17621-01-00

1
Out of stock

3

BUSH, SPEC''L SHAPE

90389-41021-00

1
Out of stock

4

PRI. SHEAVE CAP

8E7-W1762-00-00

1
Out of stock

5

SEAT, SPRING

8E7-17644-02-00

1
Out of stock

6

SPIDER

8J0-17627-00-00

1
Out of stock

7

SLIDER

8F2-17653-00-00

1

$10.03

In stock

8

PIN, DOWEL (8V8)

93607-44190-00

1
Out of stock

9

COLLAR

8K2-17645-00-00

1
Out of stock

9

COLLAR (8A7)

90387-06560-00

1

$6.32

In stock

10

WASHER (8J0)

90202-06113-00

1

$3.32

In stock

11

PIN, W/HOLE (8G6)

90240-06062-00

1

$8.97

In stock

12

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

13

PIN, COTTER

91490-25020-00

1

$2.94

In stock

14

COLLAR

90387-28721-00

1
Out of stock

15

SPACER 1

8J0-17654-00-00

—

$6.58

In stock

16

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

BOLT

90101-13406-00

1
Out of stock

19

BUSH, SPEC''L SHAPE

90389-34020-00

1
Out of stock

20

WASHER, SPRING

90204-13010-00

1
Out of stock

21

WASHER, PLATE

90201-32710-00

1
Out of stock

22

WASHER, LOCK

90215-13047-00

1
Out of stock

23

WASHER, PLATE (8K2)

90201-090A4-00

—

$1.05

In stock

24

WEIGHT, CLUTCH

8L0-17632-00-00

1
Out of stock

24

WEIGHT, CLUTCH

8L9-17632-00-00

1
Out of stock

25

—

$7.55

In stock

25

—

$6.82

In stock

26

WASHER, PLATE(8E7)

90201-07641-00

—

$3.32

In stock

27

SPRING, COMPRESSION

90501-50500-00

1
Out of stock

27

SPRING, COMPRESSION

90501-55345-00

1
Out of stock

28

V-BELT

89X-17641-01-00

1

$48.52

In stock

28

CLUTCH SUB ASSEMBLY

8K2-17602-09-00

1
Out of stock

28

CLTCH TUNE UP KIT

8L9-00000-50-00

1
Out of stock

28

CLUTCH WEIGHT KIT

8L9-17000-10-00

1
Out of stock
