1978 Yamaha SR500E (SR500E) Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 1978 Yamaha SR500E (SR500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

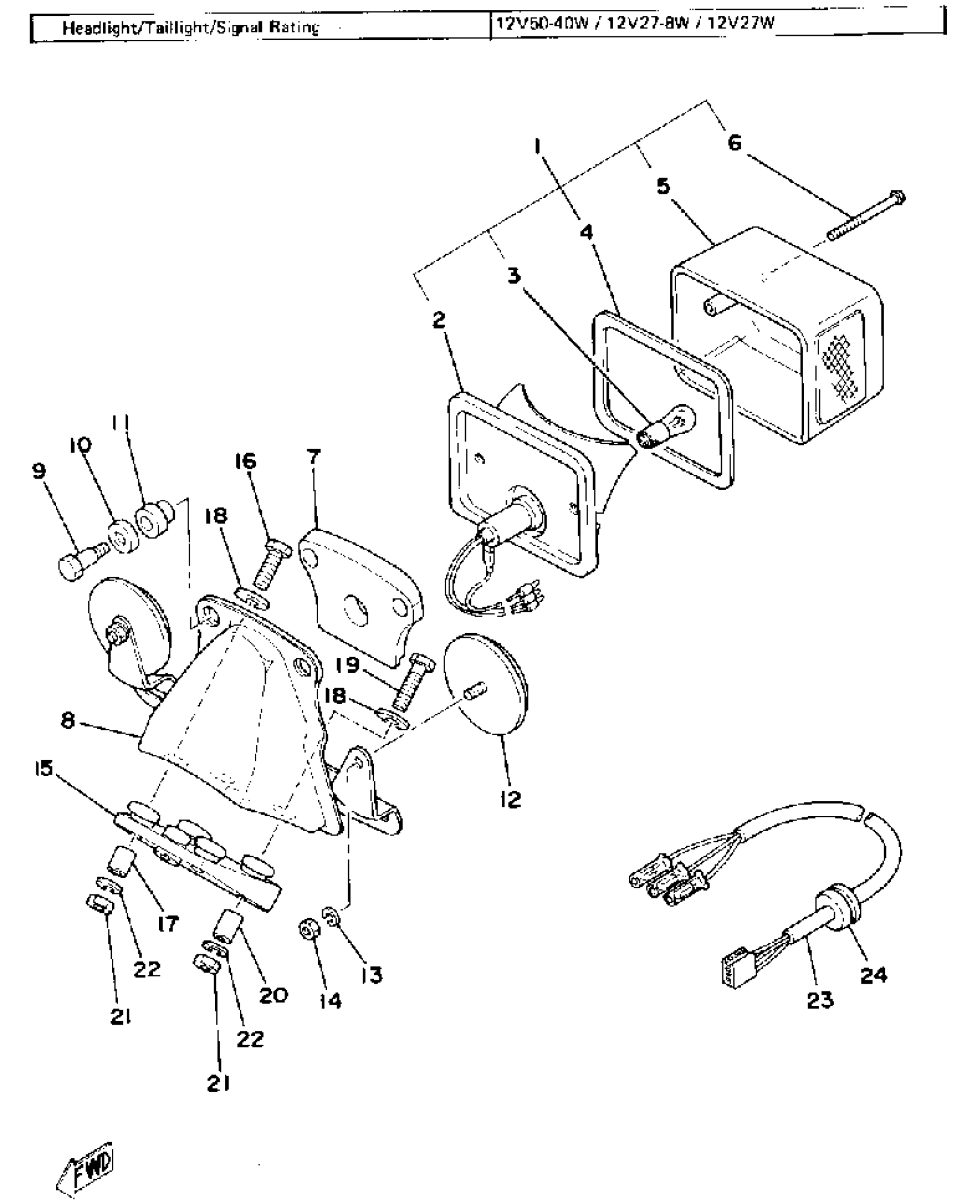

1978 Yamaha SR500E (SR500E) Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSY

1W9-84710-61-00

1

$96.22

In stock

2

TAILLIGHT UNIT ASSY

1W9-84710-61-00

1

$96.22

In stock

3

1

$10.02

In stock

4

GASKET, TAIL LENS

1M1-84523-60-00

1

$11.03

In stock

5

LENS, TAIL LAMP

1M1-84521-60-00

1

$35.69

In stock

6

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

7

SEAT, BASE

1M1-84512-60-00

—
Out of stock

8

BRACKET, LICENSE

2J2-84751-00-93

1
Out of stock

9

BOLT 337847520000

90109-06005-00

1

$6.29

In stock

10

WASHER, SPECIAL

2H7-84754-00-00

1
Out of stock

11

DAMPER

1M1-84527-60-00

1
Out of stock

12

REFLECTOR, REAR 1

449-85131-02-00

1

$25.74

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

15

DAMPER, TAIL LAMP.

2J2-84753-00-00

—
Out of stock

16

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

17

COLLAR

90387-07020-00

—

$6.17

In stock

18

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

19

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

20

COLLAR(2UJ)

90387-061V1-00

—

$6.46

In stock

21

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

CORD, TAILLIGHT

3Y3-84517-00-00

1
Out of stock

24

GROMMET 152845180000

90480-12013-00

—
Out of stock
