1978 Yamaha SR500E (SR500E) A - C - Magneto Diagram

← All diagrams

Find the part on the A - C - Magneto diagram for your 1978 Yamaha SR500E (SR500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

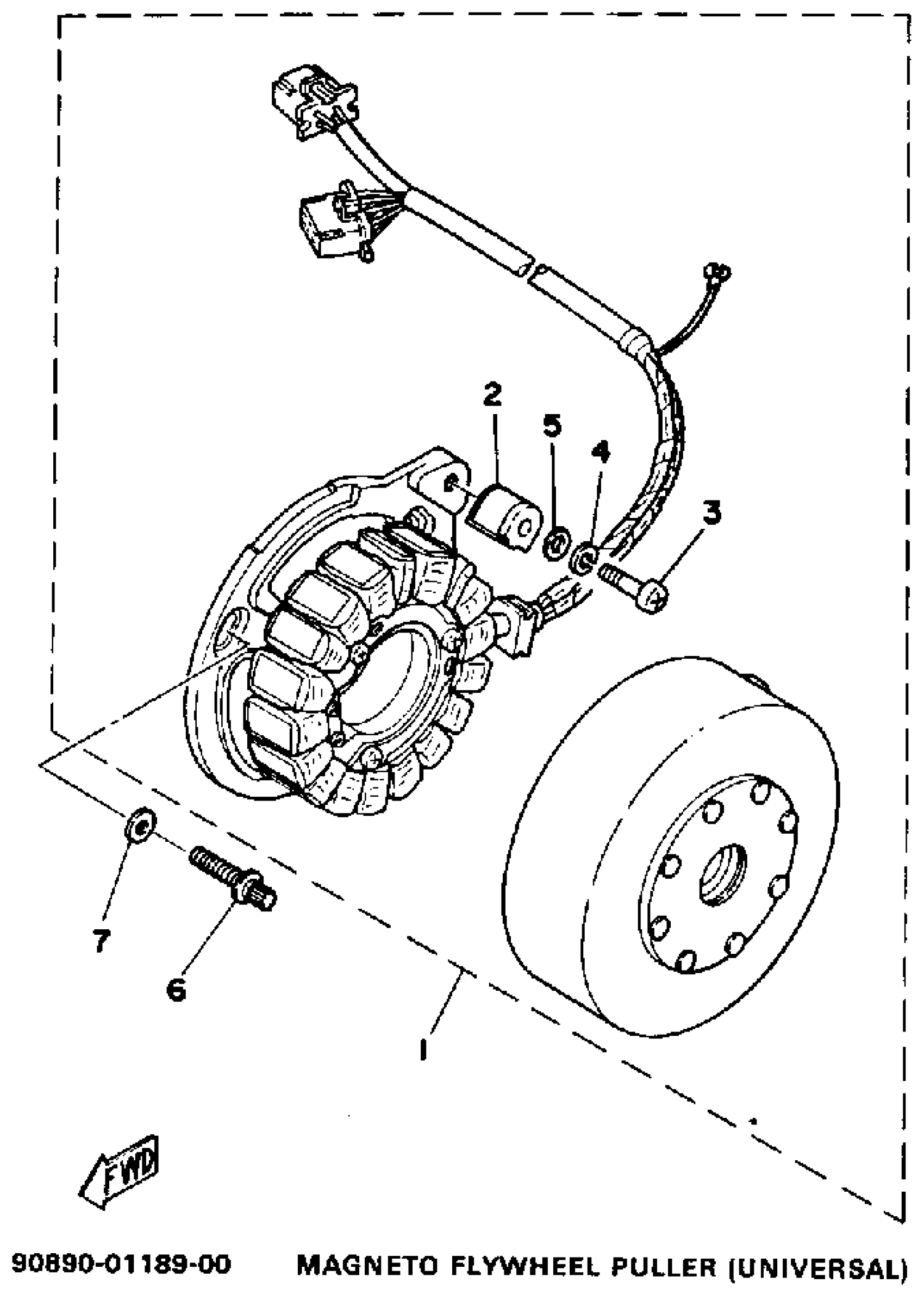

1978 Yamaha SR500E (SR500E) A - C - Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AC MAGNET GENERATOR ASSY

4R8-81400-50-00

1
Out of stock

2

. COIL, PULSER

2J2-81416-50-00

1
Out of stock

3

SCREW, PAN HEAD (686)

98580-05035-00

1

$9.22

In stock

4

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

5

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

6

BOLT

3J3-81674-00-00

1
Out of stock

7

WASHER, PLATE

90201-06045-00

1

$6.18

In stock
