1978 Yamaha SR500E (SR500E) Handle - Wire Diagram

← All diagrams

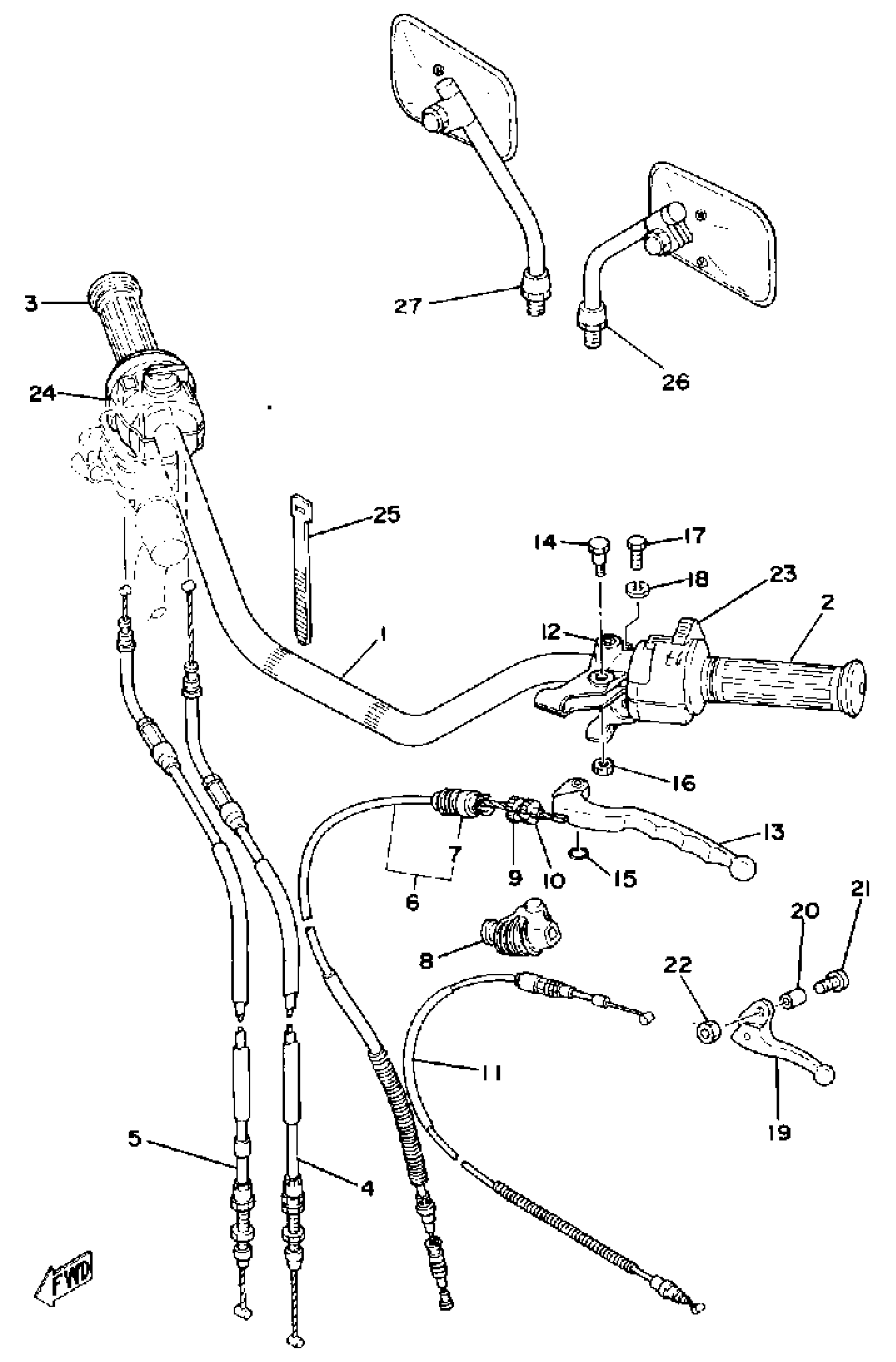

Find the part on the Handle - Wire diagram for your 1978 Yamaha SR500E (SR500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha SR500E (SR500E) Handle - Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE

1J7-26111-00-00

1

$135.22

In stock

2

GRIP LH

2H7-26241-01-00

1
Out of stock

3

GRIP ASSY

2J2-26240-01-00

1
Out of stock

4

CABLE, THROTTLE 1

2J2-26311-10-00

1
Out of stock

5

CABLE, THROTTLE 2

2J2-26312-10-00

1
Out of stock

6

CABLE, CLUTCH

2J2-26335-01-00

1
Out of stock

7

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

8

COVER, LEVER

1E6-26372-00-00

1

$19.91

In stock

9

BOLT

90123-08002-00

1

$8.93

In stock

10

NUT

90179-08030-00

1

$3.78

In stock

11

CABLE, STARTER 1

2J2-26331-01-00

1
Out of stock

12

HOLDER, LEVER (L.H)

583-82911-02-00

—

$67.22

In stock

13

LEVER L

2H0-83912-31-00

1

$26.37

In stock

14

BOLT(1FG)

90109-06798-00

1
Out of stock

15

O-RING (2H7)

93210-11368-00

1

$4.80

In stock

16

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

17

BOLT, HEXAGON

97013-06022-00

—

$1.20

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

LEVER, DECOMPRESSION

583-83981-00-00

—
Out of stock

20

COLLAR, LEVER 1

5BE-83913-00-00

—
Out of stock

21

SCREW, PAN HEAD(4MY)

98507-05018-00

—

$2.48

In stock

22

NUT, U

95617-05100-00

—

$6.68

In stock

23

SWITCH, HANDLE 3

2J3-83973-60-98

1
Out of stock

24

SWITCH, HANDLE 1

2J2-83976-00-98

1
Out of stock

25

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

26

REAR VIEW MIRROR ASSY (LEFT)

2G2-26290-11-00

—
Out of stock

27

REAR VIEW MIRROR ASSY (RIGHT)

2G2-26290-01-00

—
Out of stock
