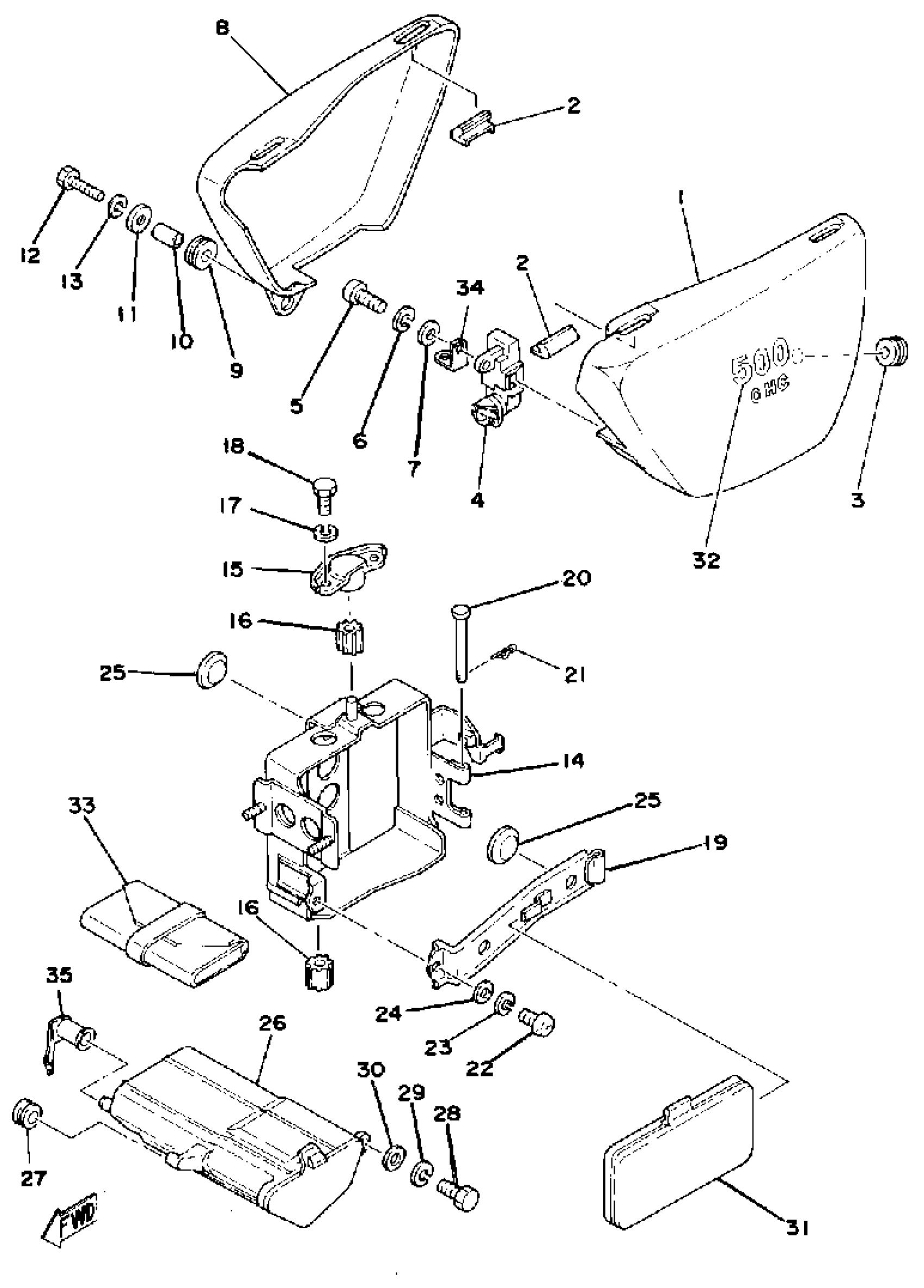

Find the part on the Side Cover - Battery Box diagram for your 1978 Yamaha SR500E (SR500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha SR500E (SR500E) Side Cover - Battery Box Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

2J2-21711-01-33

1
Out of stock

1

COVER, SIDE 1

2J2-21711-01-H8

1
Out of stock

2

DAMPER, SIDE COVER

466-21717-00-00

1
Out of stock

3

GROMMET (2J2)

90480-12236-00

1
Out of stock

4

SIDE COVER LOCK ASSY

4R8-21708-01-00

—
Out of stock

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1
Out of stock

6

WASHER, SPRING

92995-06100-00

1
Out of stock

7

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

8

COVER, SIDE 2

2J2-21721-01-H8

1
Out of stock

8

COVER, SIDE 2

2J2-21721-01-H9

1
Out of stock

9

GROMMET 260845590000

90480-14105-00

1
Out of stock

10

COLLAR 260845570000

90387-06028-00

—
Out of stock

11

WASHER, PLATE

90201-06380-00

1
Out of stock

12

BOLT, HEXAGON

97017-06030-00

1
Out of stock

13

WASHER, SPRING

92995-06100-00

1
Out of stock

14

BOX, BATT.

2J2-21170-00-00

1
Out of stock

15

BRACKET, BATT BOX

2J2-21149-01-00

1
Out of stock

16

DAMPER, SIDE COVER

2J2-21729-00-00

—
Out of stock

17

WASHER, SPRING

92995-06100-00

1
Out of stock

18

BOLT(3JP)

97017-06010-00

—
Out of stock

19

PLATE

(2J2-2176E-00-00)

1
Out of stock

20

PIN, CLEVIS

91701-05055-00

—
Out of stock

21

CLIP (156-83525-00)

90468-10050-00

—
Out of stock

22

SCREW, PAN HEAD(62J)

97885-06012-00

1
Out of stock

23

WASHER, SPRING

92995-06100-00

1
Out of stock

24

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

25

PAD, BATTERY

371-82121-00-00

—
Out of stock

26

BOX, TOOL

2J2-21240-01-00

1
Out of stock

27

GROMMET (1E6)

90480-15058-00

—
Out of stock

28

BOLT(8CP)

97017-06014-00

—
Out of stock

29

WASHER, SPRING

92995-06100-00

1
Out of stock

30

WASHER, PLATE

90201-06M08-00

1
Out of stock

31

BOX

(2J2-21245-00-00)

1
Out of stock

32

EMBLEM 1

(2J2-21781-00-00)

1
Out of stock

33

TOOL KIT (1E6-28100-10)

1JN-W2810-00-00

1
Out of stock

34

HOLDER, KNOB

(2J2-21794-00-00)

1
Out of stock

35

STOPPER, BOX

(2J2-21172-00-00)

1
Out of stock
