2016 Yamaha SR400 CA (SR400GCB) Taillight Diagram

← All diagrams

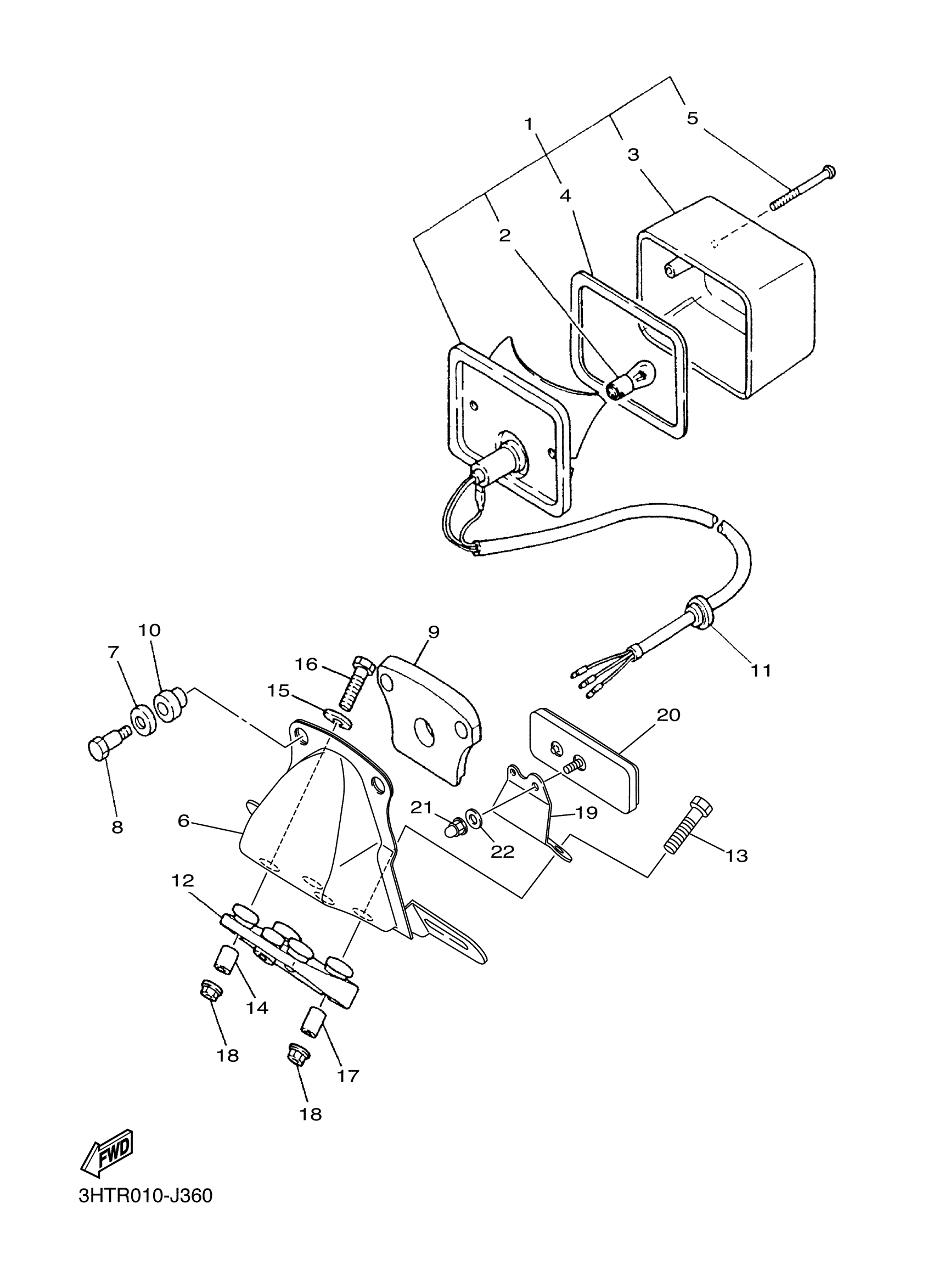

Find the part on the Taillight diagram for your 2016 Yamaha SR400 CA (SR400GCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha SR400 CA (SR400GCB) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASS

2RD-84710-10-00

—
Out of stock

2

1

$10.02

In stock

3

LENS, TAIL LAMP

1M1-84521-60-00

1

$35.69

In stock

4

GASKET, TAIL LENS

1M1-84523-60-00

1

$11.03

In stock

5

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

6

BRACKET, LICENSE

3HT-84751-20-00

1
Out of stock

7

WASHER, SPECIAL

2H7-84754-00-00

1
Out of stock

8

SCREW

3HT-84526-00-00

1
Out of stock

9

SEAT, BASE

1M1-84512-60-00

—
Out of stock

10

DAMPER

1M1-84527-60-00

1
Out of stock

11

GROMMET 152845180000

90480-12013-00

1
Out of stock

12

DAMPER, TAIL LAMP.

2J2-84753-00-00

—
Out of stock

13

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

14

COLLAR

90387-07020-00

1

$6.17

In stock

15

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

16

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

17

COLLAR

90387-0714A-00

—
Out of stock

18

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock

19

BRACKET, REFLECTOR

3HT-21641-00-00

—
Out of stock

20

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

21

NUT, CROWN

90176-05003-00

—

$3.09

In stock

22

WASHER, PLATE

90201-05039-00

—

$5.19

In stock
