2016 Yamaha SR400 CA (SR400GCB) Meter Diagram

← All diagrams

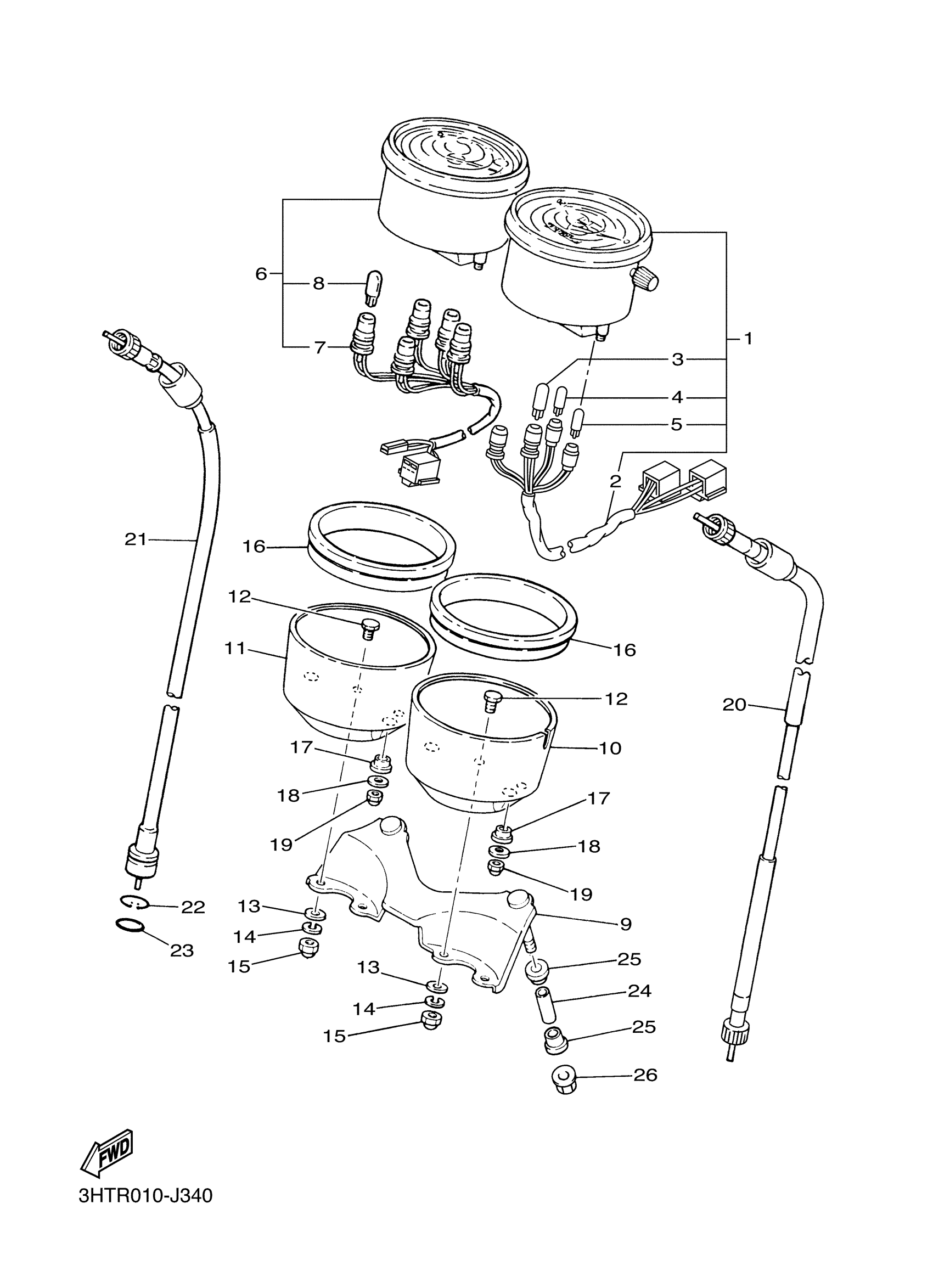

Find the part on the Meter diagram for your 2016 Yamaha SR400 CA (SR400GCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha SR400 CA (SR400GCB) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

2RD-83570-11-00

—
Out of stock

2

SOCKET CORD ASSY

3HT-83520-50-00

—
Out of stock

3

BULB (12V-1.7W)

3GM-83517-00-00

1
Out of stock

4

BULB (T6.5 12V-3W)

42X-83517-00-00

1

$6.48

In stock

5

BULB (12V-1.7W)

3FV-83517-00-00

1

$6.30

In stock

6

TACHOMETER ASSY

2RD-83540-01-00

—
Out of stock

7

SOCKET CORD ASSY

3HT-83509-50-00

—
Out of stock

8

BULB (12V-1.7W)

3GM-83517-00-00

1
Out of stock

9

BRACKET, METER

3HT-83519-00-00

—
Out of stock

10

COVER, SPEEDOMETER

2J2-83507-00-00

1
Out of stock

11

COVER, TACHOMETER

2J2-83508-00-00

1
Out of stock

12

BOLT

584-83546-00-00

1
Out of stock

13

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

NUT (J17)

95380-06800-00

1

$6.74

In stock

16

DAMPER

3H3-83513-00-00

—
Out of stock

17

DAMPER, METER COVER FITTING

584-83523-00-00

—
Out of stock

18

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

19

NUT (CROWN)

95303-05800-00

1
Out of stock

20

SPEEDOMETER CABLE ASSY

3HT-83550-01-00

—
Out of stock

21

TACHOMETER CABLE ASSY

2J2-83560-10-00

—
Out of stock

22

RING, STOP

102-25137-00-00

—
Out of stock

23

O-RING (26H)

93210-14579-00

—

$5.69

In stock

24

COLLAR (877)

90387-06249-00

—
Out of stock

25

DAMPER

1JK-83541-00-00

—
Out of stock

26

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock
