2016 Yamaha SR400 CA (SR400GCB) Handle Switch Lever Diagram

← All diagrams

Find the part on the Handle Switch Lever diagram for your 2016 Yamaha SR400 CA (SR400GCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

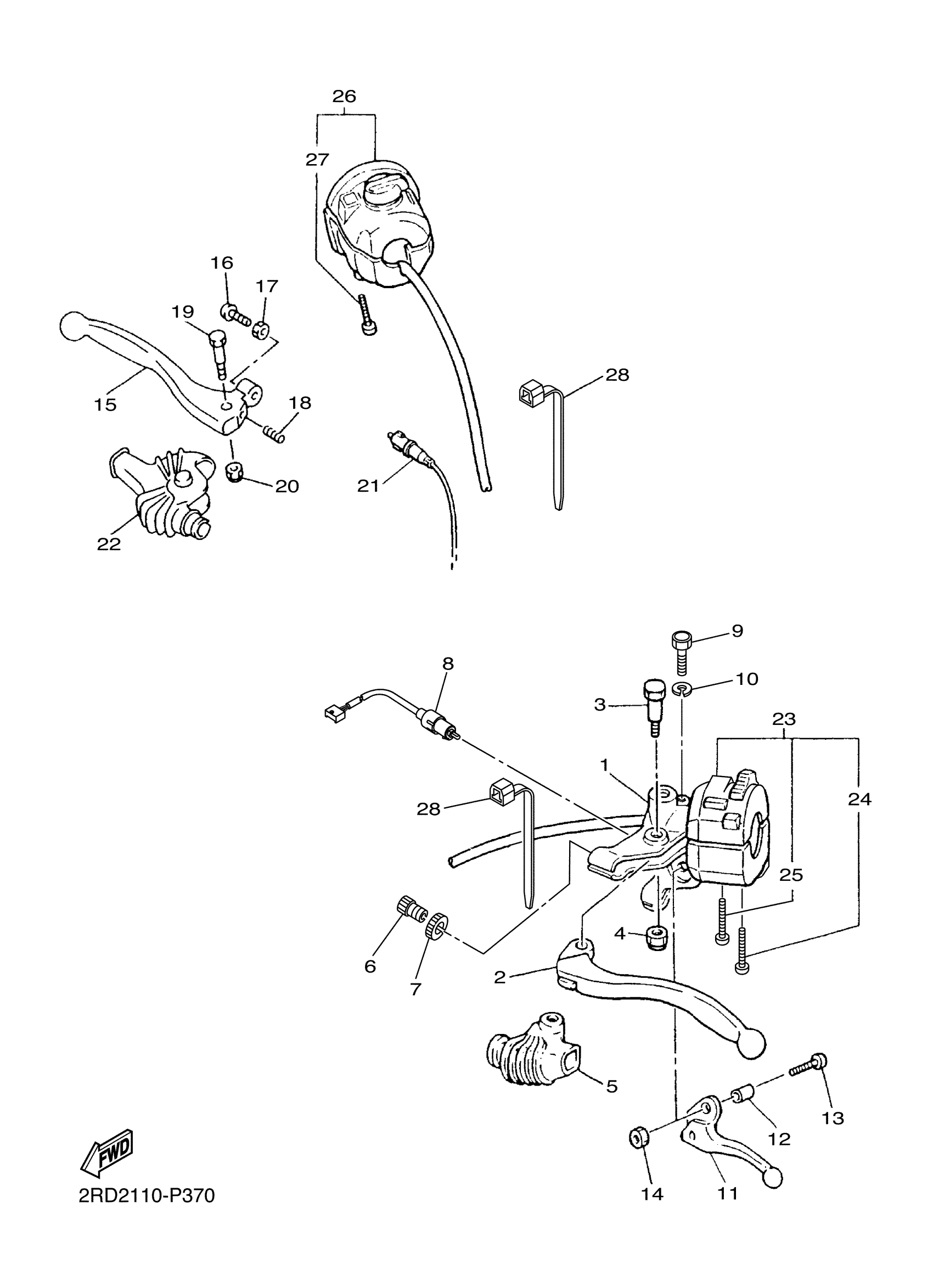

2016 Yamaha SR400 CA (SR400GCB) Handle Switch Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, LEVER 1

3HT-82911-00-00

1
Out of stock

2

LEVER 1

2HT-83912-01-00

1
Out of stock

3

BOLT, LEVER

3HT-83945-00-00

1
Out of stock

4

NUT, SELF-LOCKING

95617-06100-00

1
Out of stock

5

COVER, LEVER

1E6-26372-00-00

1
Out of stock

6

BOLT

90123-08002-00

1
Out of stock

7

NUT

90179-08030-00

1
Out of stock

8

SWITCH

3HT-82917-00-00

—
Out of stock

9

BOLT, HEXAGON

97007-06022-00

—
Out of stock

10

WASHER, SPRING

92907-06100-00

1
Out of stock

11

LEVER, DECOMPRESSION

583-83981-00-00

1
Out of stock

12

COLLAR, LEVER 1

5BE-83913-00-00

1
Out of stock

13

SCREW, PAN HEAD

98517-05020-00

1
Out of stock

14

NUT, U

95617-05100-00

1
Out of stock

15

LEVER 2

38W-83922-01-00

1
Out of stock

16

SCREW (2L0)

90149-06131-00

—
Out of stock

17

NUT

90170-06021-00

—
Out of stock

18

SPRING COMPRESSION306839240000

90501-10312-00

—
Out of stock

19

BOLT (4L0)

90109-06577-00

—
Out of stock

20

NUT, SELF-LOCKING

95617-06100-00

1
Out of stock

21

FRONT STOP SWITCH ASSY

3HT-83980-00-00

—
Out of stock

22

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

—
Out of stock

23

SWITCH, HANDLE 4

2RD-83972-00-00

—
Out of stock

24

SCREW, PAN HEAD

98517-05030-00

—
Out of stock

25

SCREW, PAN

98507-05035-00

—
Out of stock

26

SWITCH, HANDLE 1

2RD-83976-00-00

—
Out of stock

27

SCREW, PAN HEAD

98517-05030-00

—
Out of stock

28

CLAMP(4FM)

90464-15195-00

—
Out of stock
