2016 Yamaha SR400 CA (SR400GCB) Headlight Diagram

← All diagrams

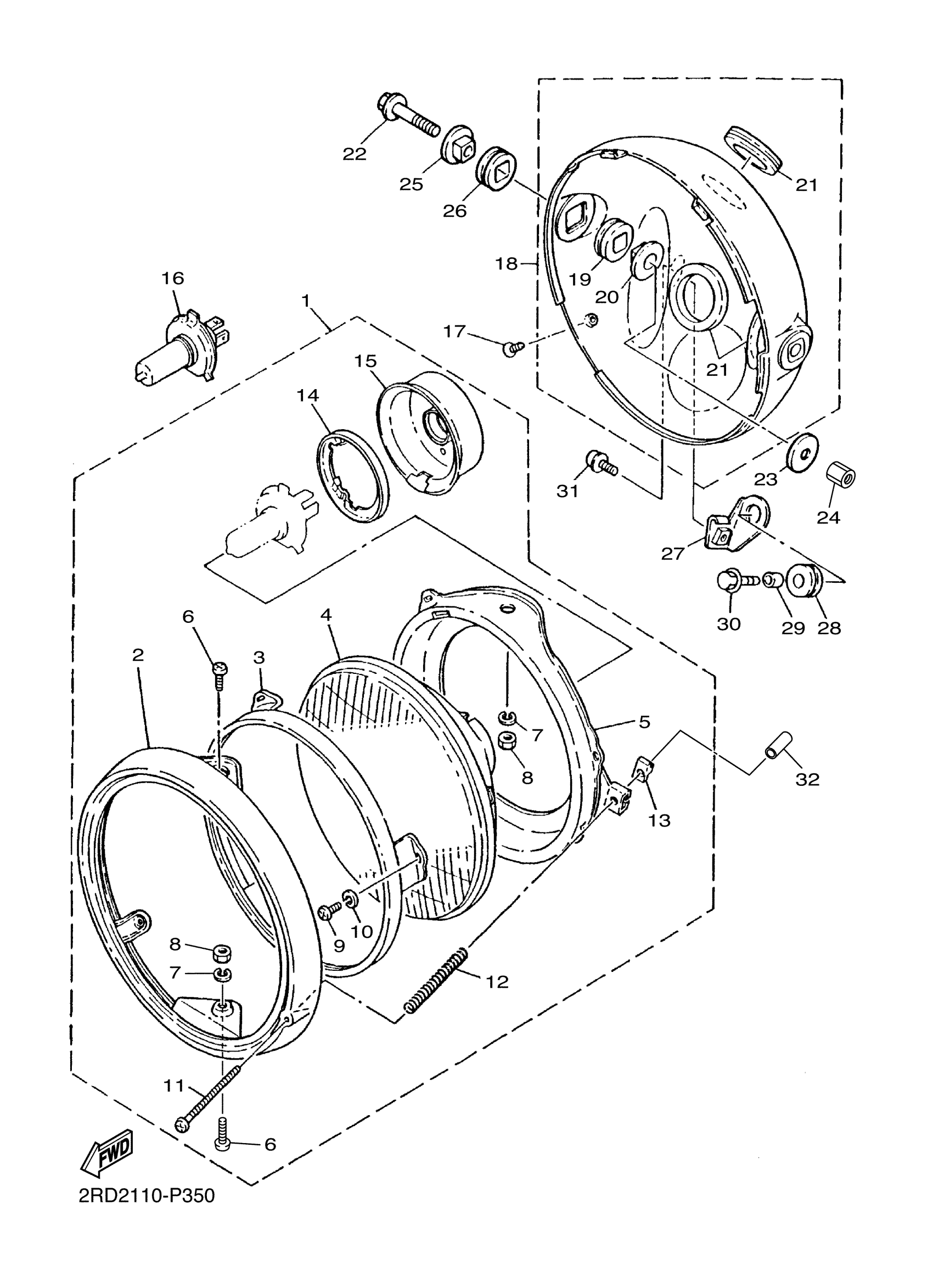

Find the part on the Headlight diagram for your 2016 Yamaha SR400 CA (SR400GCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha SR400 CA (SR400GCB) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD LAMP UNIT ASSY

2F3-84303-A0-00

—
Out of stock

2

RIM, HEAD LAMP

341-84315-40-00

1
Out of stock

3

RING, RETAINING

2F9-84395-00-00

1
Out of stock

4

LENS ASSY

2F3-84321-A0-00

—
Out of stock

5

RING, MOUNTING

2F9-84394-00-00

—
Out of stock

6

SCREW

1JK-84365-09-00

—
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

. NUT, HEXAGON

95302-04600-00

1
Out of stock

9

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

10

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

11

SCREW, PANHEAD (4G7)

98580-04055-00

—

$7.02

In stock

12

SPRING, ADJUST

341-84332-60-00

1

$8.54

In stock

13

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

14

SETTING PLATE, BULB

2F9-84375-00-00

—

$12.66

In stock

15

COVER, SOCKET

2F9-84397-01-00

1

$27.82

In stock

16

BULB, HEADLIGHT

8V0-84314-10-00

—
Out of stock

17

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

18

B0DY ASSY

1JK-84330-00-93

—
Out of stock

19

DAMPER, HEAD LAMP

584-84345-60-00

—
Out of stock

20

COLLAR 2

584-84338-60-00

—
Out of stock

21

GROMMET, WIREHARNESS

214-84153-60-00

—
Out of stock

22

BOLT, FLANGE

95814-08040-00

—

$3.15

In stock

23

WASHER

90209-08008-00

—
Out of stock

24

NUT

90170-08009-00

—
Out of stock

25

COLLAR, FLASHER 1

341-83316-02-00

—
Out of stock

26

DAMPER, FLASHER (371)

341-83321-01-00

—
Out of stock

27

STAY, HEADLIGHT 1

3HT-84318-00-00

—
Out of stock

28

GROMET (3X3)

90480-14229-00

—

$6.17

In stock

29

COLLAR

90387-07020-00

—

$6.17

In stock

30

BOLT, WITH WASHER

90119-06038-00

—
Out of stock

31

SCREW, WITH WASHER(3BN)

90159-06160-00

—
Out of stock

32

CAP,1

3HT-84385-00-00

—

$6.38

In stock
