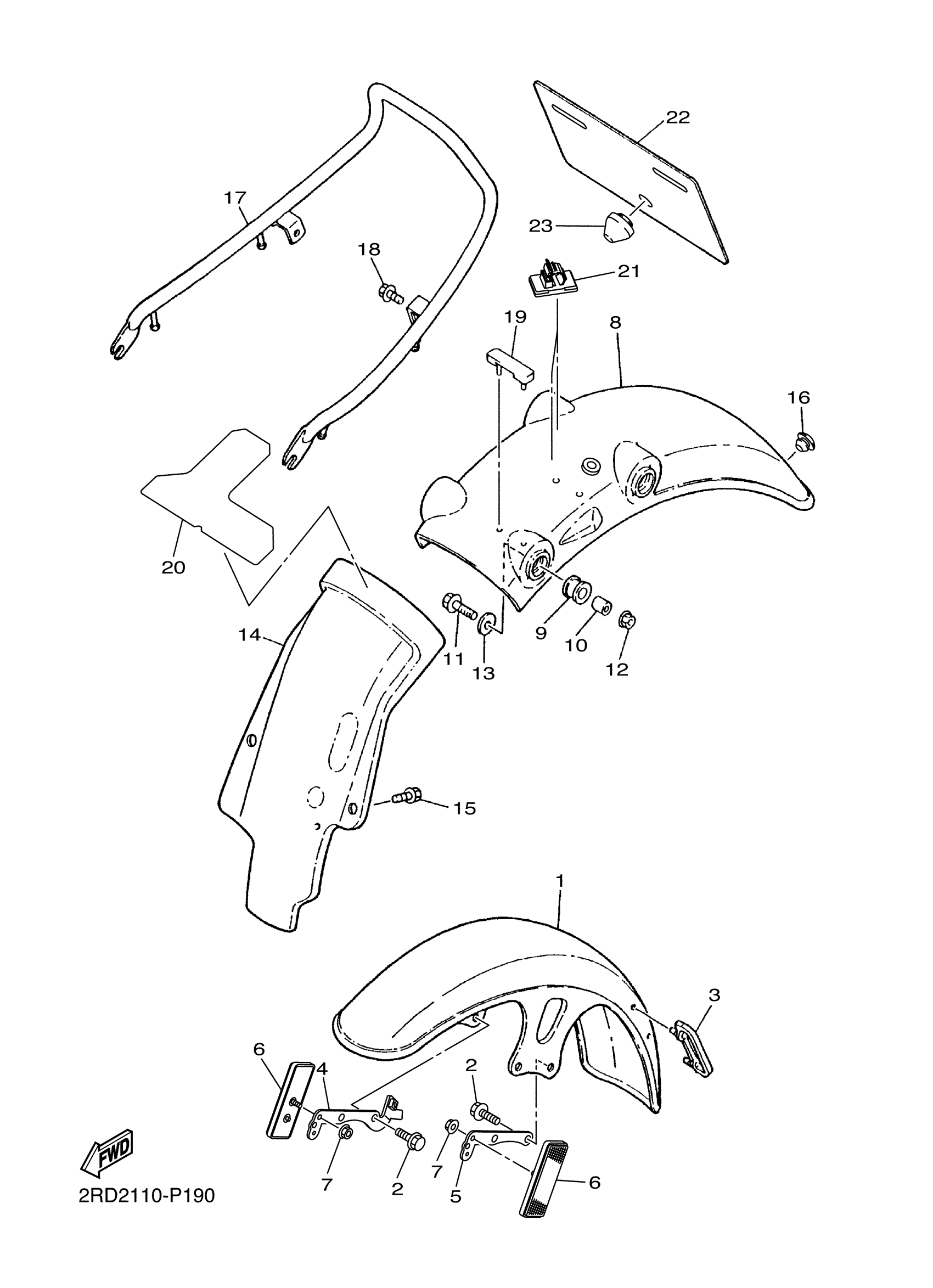

Find the part on the Fender diagram for your 2016 Yamaha SR400 CA (SR400GCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha SR400 CA (SR400GCB) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FENDER COMP.

1JN-21510-20-93

—
Out of stock

2

BOLT, FLANGE(JN5)

95817-08016-00

1
Out of stock

3

HOLDER, CABLE

3Y6-21518-00-00

—
Out of stock

4

HOLDER, BRAKE HOSE

2RD-25887-00-00

—
Out of stock

5

HOLDER, BRAKE HOSE

2RD-2588F-00-00

—
Out of stock

6

FRONT REFLECTOR ASSY

11H-85110-01-00

1
Out of stock

7

NUT, FLANGE(3GM)

95707-05500-00

1
Out of stock

8

REAR FENDER COMP.

2J2-21610-11-93

—
Out of stock

9

DAMPER, REAR

168-21639-00-00

1
Out of stock

10

COLLAR (437)

90387-08258-00

1
Out of stock

11

BOLT, FLANGE

95817-08035-00

1
Out of stock

12

NUT, FLANGE(JN5)

95707-08500-00

1
Out of stock

13

WASHER, PLATE (5J0)

90201-085E6-00

1
Out of stock

14

GUARD, MUD

2J2-21629-01-00

—
Out of stock

15

BOLT, WITH WASHER

90119-06152-00

1
Out of stock

16

PLUG 288833190000

90338-07043-00

—
Out of stock

17

STAY, REAR

3GW-21645-01-00

—
Out of stock

18

BOLT, FLANGE(JN5)

95817-08016-00

1
Out of stock

19

CLAMP, WIRE

3HT-21637-00-00

—
Out of stock

20

SEAL

3HT-21669-00-00

—
Out of stock

21

CLAMP(1NL)

90464-62085-00

—
Out of stock

22

PLATE, NUMBER SUPP

2RD-28189-00-00

—
Out of stock

23

DAMPER

3HT-21649-00-00

—
Out of stock
