1981 Yamaha SR250TH (SR250TH) Stand Footrest Diagram

← All diagrams

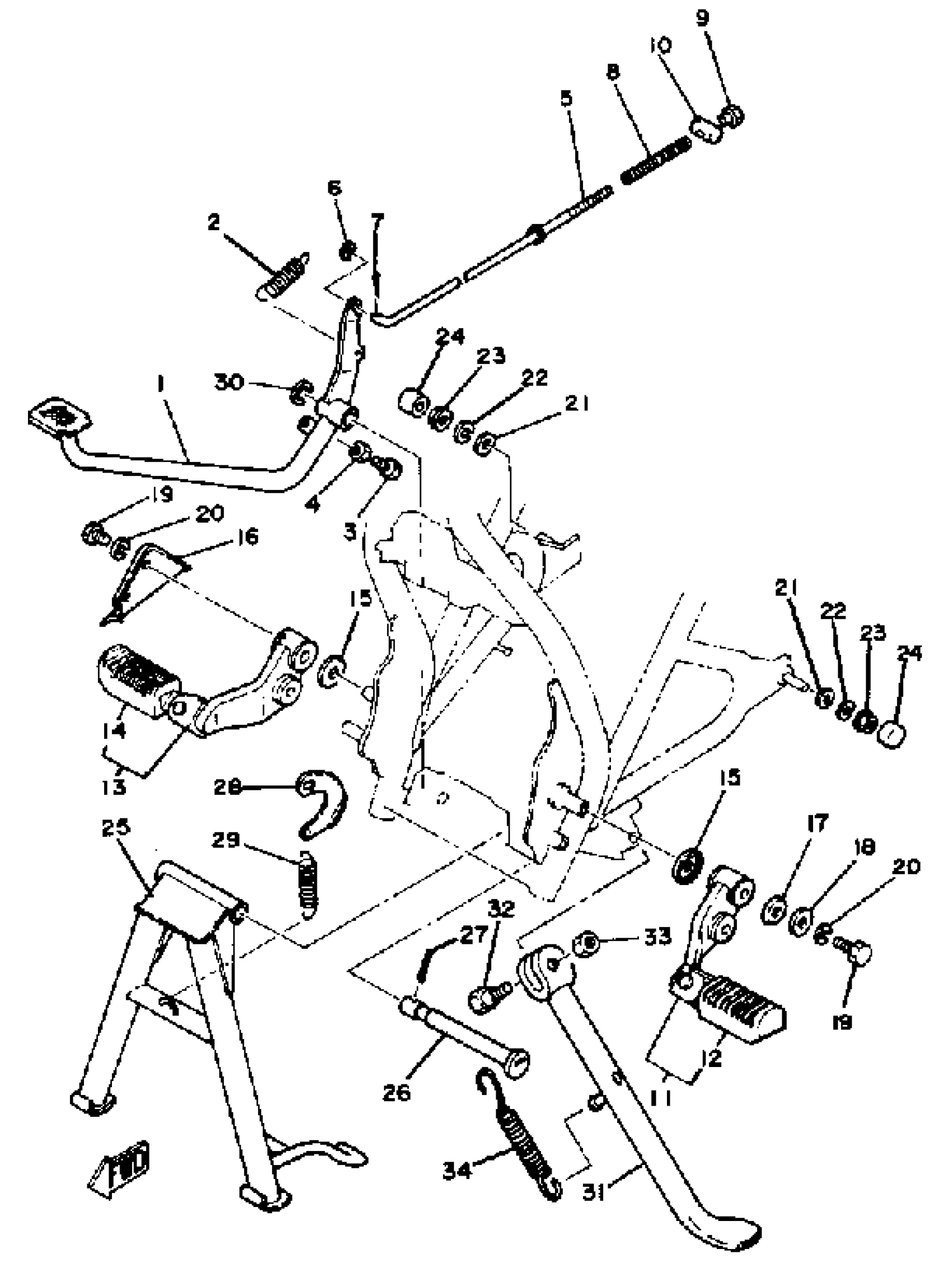

Find the part on the Stand Footrest diagram for your 1981 Yamaha SR250TH (SR250TH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SR250TH (SR250TH) Stand Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

3Y6-27211-00-93

—

$40.68

In stock

2

1

$3.57

In stock

3

SCREW 341272170000

90153-06008-00

1

$5.75

In stock

4

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

5

ROD, BRAKE

3Y6-27231-00-00

1
Out of stock

6

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

7

PIN, COTTER

91490-20025-00

1

$1.31

In stock

8

SPRING, (180-27236-00)

90501-10245-00

1

$6.17

In stock

9

NUT (25K)

90179-06411-00

1

$5.10

In stock

10

PIN 1562723700

90249-12008-00

1

$4.70

In stock

11

FRONT FOOTREST ASSY (L.H)

3Y6-27410-00-R4

1
Out of stock

12

COVER, FOOTREST

4L0-27423-00-00

1

$43.04

In stock

13

FRONT FOOTREST ASSY (R.H)

3Y6-27420-00-R4

—

$76.57

In stock

14

COVER, FOOTREST

4L0-27423-00-00

1

$43.04

In stock

15

WASHER, PLATE (1L9)

90209-12157-00

—

$6.71

In stock

16

PROTECTOR

(3Y6-27491-00-00)

1
Out of stock

17

WASHER, PLATE

90209-08150-00

1
Out of stock

18

WASHER, PLATE (1A0)

90201-08612-00

—

$6.68

In stock

19

BOLT, HEXAGON

97013-08016-00

—

$1.32

In stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

21

WASHER PLATE 256111740000

90201-10131-00

—

$6.97

In stock

22

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

23

NUT, FLANGE(3BM)

95704-10500-00

—

$1.71

In stock

24

CAP, TOOL BOX

262-21399-00-00

1
Out of stock

25

STAND, MAIN

3Y6-27111-01-R4

—

$69.03

In stock

26

SHAFT, MAIN STAND

3Y6-27112-00-00

—
Out of stock

27

PIN, COTTER

91490-30030-00

—

$7.15

In stock

28

LINK, MAIN STAND

3Y6-27115-00-00

—

$4.65

In stock

29

—

$3.89

In stock

30

WASHER (3XVC)

90201-153A1-00

—

$6.71

In stock

31

STAND, SIDE

3Y6-27311-01-00

—

$47.03

In stock

32

BOLT 122273170100

90109-08032-00

—
Out of stock

33

NUT

90185-08055-00

—

$8.31

In stock

34

SPRING (460)

90507-29009-00

—
Out of stock
