1981 Yamaha SR250TH (SR250TH) Seat Diagram

← All diagrams

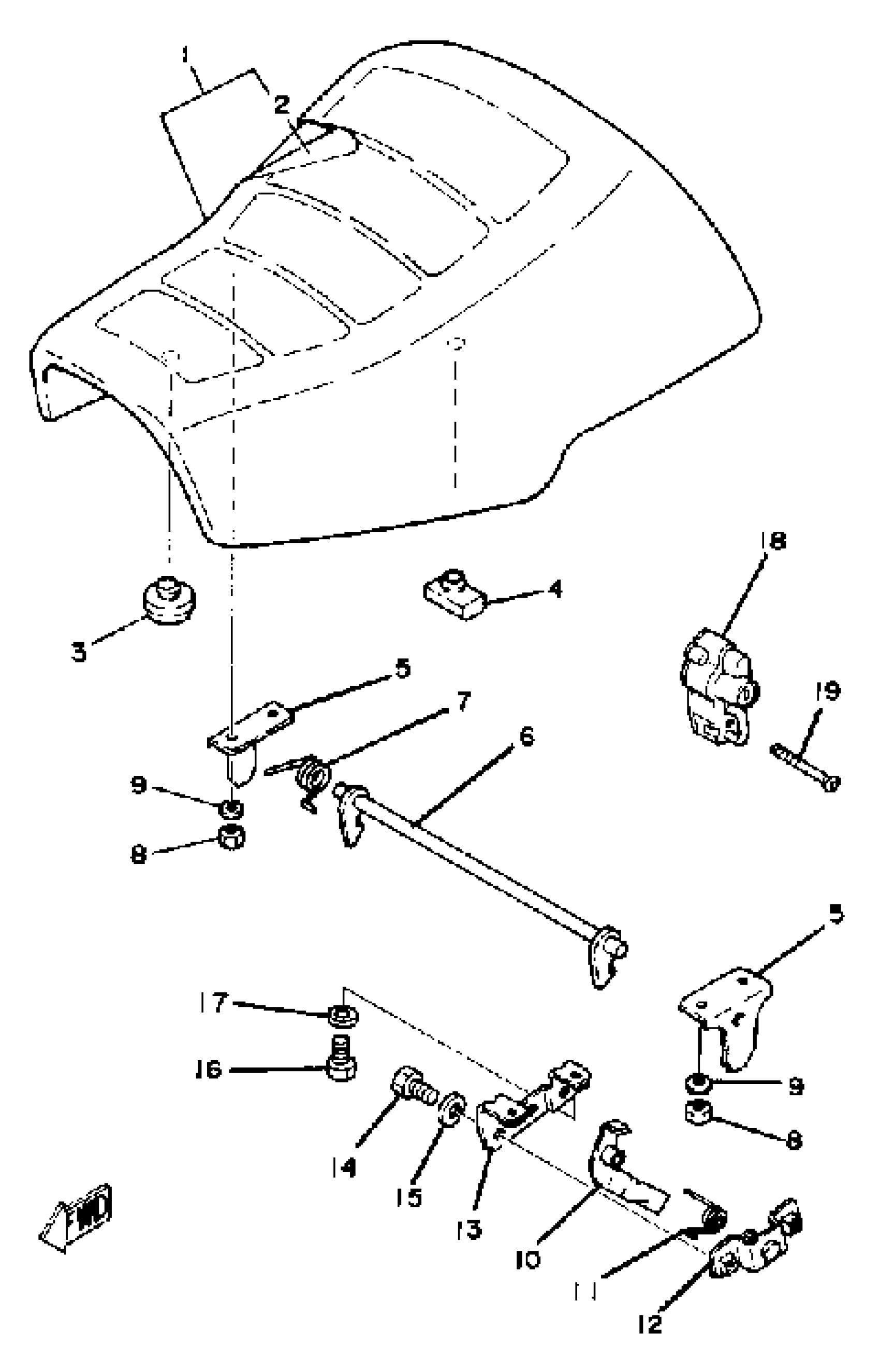

Find the part on the Seat diagram for your 1981 Yamaha SR250TH (SR250TH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SR250TH (SR250TH) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSEMBLY

(4K9-W2471-00-00)

1
Out of stock

2

. COVER, DOUBLE SEAT

4K9-24731-00-00

1
Out of stock

3

PAD, SEAT

1L9-24741-00-00

1

$8.91

In stock

4

DAMPER, SEAT

214-24724-00-00

1

$6.72

In stock

5

BRACKET, SEAT

3J3-24738-00-00

1
Out of stock

6

HOOK, SEAT

3Y6-24754-00-00

—

$21.14

In stock

7

SPRING (3G1)

90508-20412-00

1

$5.69

In stock

8

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

LEVER, SEAT

(3Y6-24776-00-00)

1
Out of stock

11

SPRING (3G1)

90508-20412-00

1

$5.69

In stock

12

BRACKET, SEAT

(3Y6-24718-00-00)

1
Out of stock

13

BRACKET, SEAT LVR 1

(3Y6-2475H-00-00)

1
Out of stock

14

BOLT (661)

97013-06012-00

1

$4.71

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

BOLT (661)

97013-06012-00

1

$4.71

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

SEAT LOCK ASSY

3Y6-24705-00-00

—

$60.00

In stock

19

SCREW, FLAT

98707-06030-00

—

$6.08

In stock
