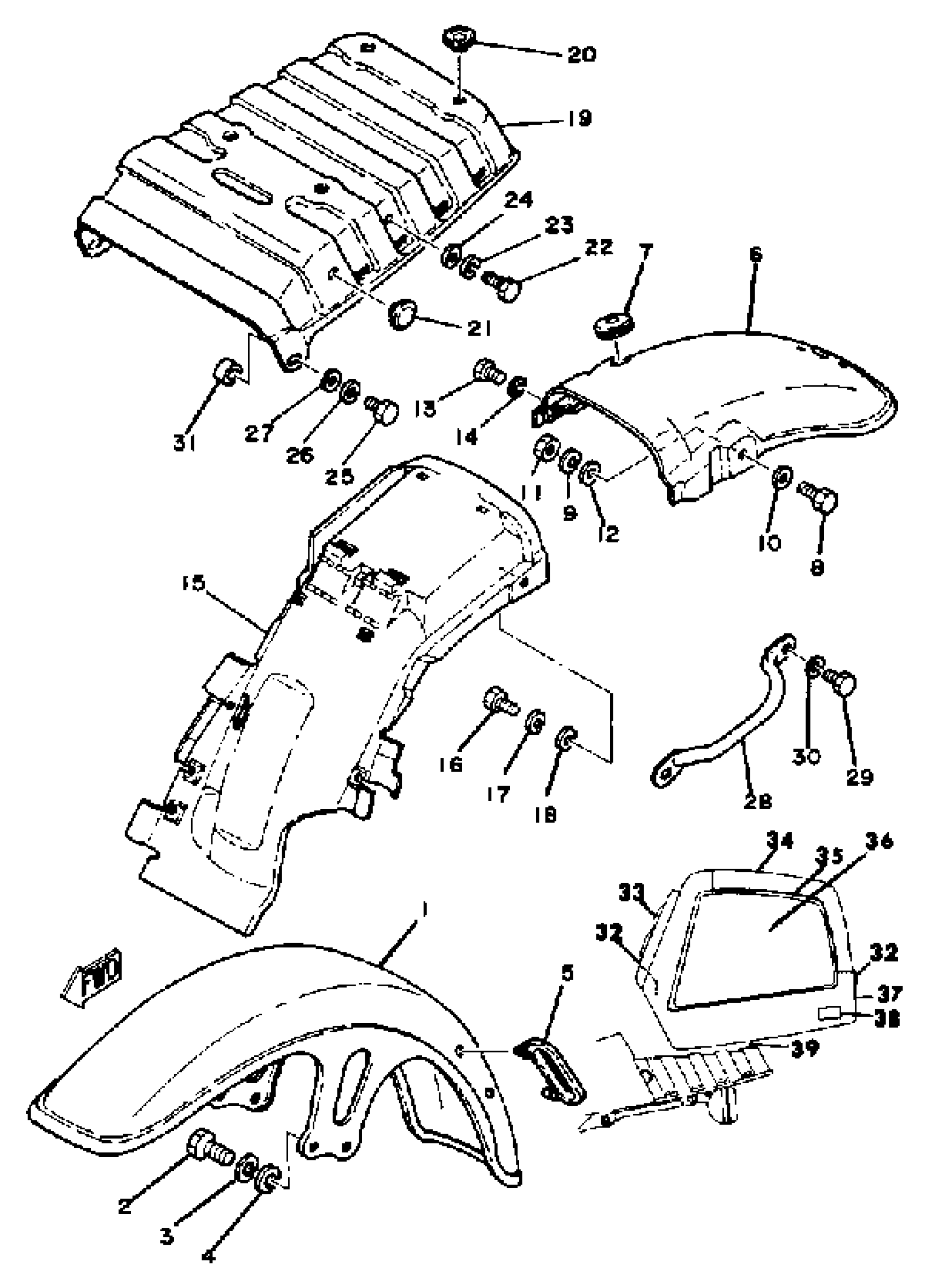

Yamaha SR250TH (SR250TH) 1981 FRONT FENDER REAR FENDER TRAVEL TRUNK Diagram

#

Description
Price

1

FENDER, FRONT

3Y6-21511-00-93

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.43

3

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

4

WASHER, PLAIN

92990-08200-00

$2.36

5

HOLDER, CABLE

3Y6-21518-00-00

Unavailable

6

REAR FENDER COMP.

3Y6-21610-00-93

Unavailable

7

GROMMET (438)

90480-15061-00

$6.22

8

BOLT, HEXAGON

97017-08025-00

$6.95

9

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

10

.. WASHER, PLATE

92990-08600-00

$2.17

11

NUT(6L2)

95333-08600-00

$2.98

12

WASHER, PLAIN

92990-08200-00

$2.36

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

14

WASHER, SPRING

92995-06100-00

$2.95

15

GUARD, MUD

3Y6-21629-00-00

Unavailable

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

17

WASHER, SPRING

92995-06100-00

$2.95

18

WASHER, PLATE

90201-06380-00

Unavailable

19

COVER, REAR FENDER

(4K9-21651-00-00)

Unavailable

20

PAD, BATTERY

371-82121-00-00

Unavailable

21

DAMPER 1

(4K9-21638-00-00)

Unavailable

22

BOLT, HEXAGON

97013-08030-00

Unavailable

23

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

24

.. WASHER, PLATE

92990-08600-00

$2.17

25

BOLT, HEXAGON

97013-08020-00

$1.43

26

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

27

.. WASHER, PLATE

92990-08600-00

$2.17

28

HANDLE, STANDING

(4K9-21165-00-00)

Unavailable

29

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

30

WASHER, SPRING

92995-06100-00

$2.95

31

COLLAR

(90387-09069-00)

Unavailable

32

SR250 TT-LOCK ASSEMBLY

(ACC-4K961-40-00)

Unavailable

33

SR250 TT-BKRST ASSEMBLY

(ACC-4K961-30-00)

Unavailable

34

SR250 TT-LID ASSEMBLY

(ACC-4K961-10-00)

Unavailable

35

SR250 TT-GSKT ASSEMBLY

(ACC-4K961-05-00)

Unavailable

36

SR250 TT-SDCVR ASSEMBLY

(ACC-4K961-20-00)

Unavailable

37

YAMAHA MOLDED LOGO

ACC-11140-00-41

Unavailable

38

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

39

DAMPER ASSEMBLY

(ACC-4K961-88-00)

Unavailable
