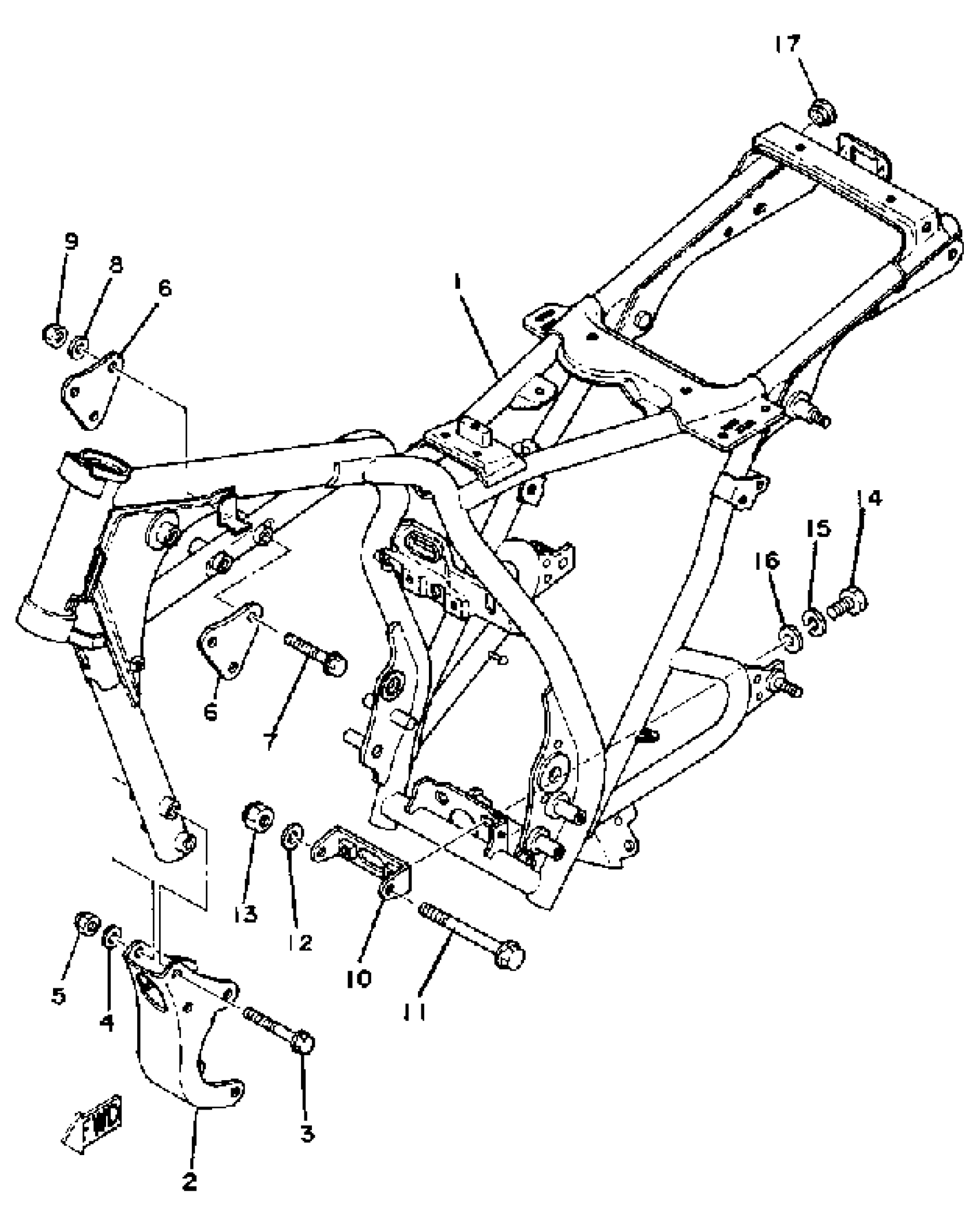

Find the part on the Frame diagram for your 1981 Yamaha SR250TH (SR250TH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SR250TH (SR250TH) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(3Y6-21110-00-33)

1
Out of stock

2

STAY, ENGINE 3

(3Y6-21316-00-00)

1
Out of stock

3

BOLT, FLANGE(JN5)

95817-08070-00

1

$3.20

In stock

4

WASHER, PLATE (33N)

90201-094G1-00

1

$6.98

In stock

5

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

6

STAY, ENGINE 2

(3Y6-21315-01-00)

1
Out of stock

7

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

8

WASHER, PLATE (33N)

90201-094G1-00

1

$6.98

In stock

9

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

10

PLATE, ENGINE ADJUSTING

3Y1-21475-00-00

—

$5.86

In stock

11

BOLT, WASHER BASED (3Y2)

90105-08162-00

1
Out of stock

12

WASHER, PLATE (33N)

90201-094G1-00

1

$6.98

In stock

13

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

14

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

17

GROMMET

(90480-17218-00)

1
Out of stock
