1981 Yamaha SR250TH (SR250TH) Side Cover Tool Diagram

← All diagrams

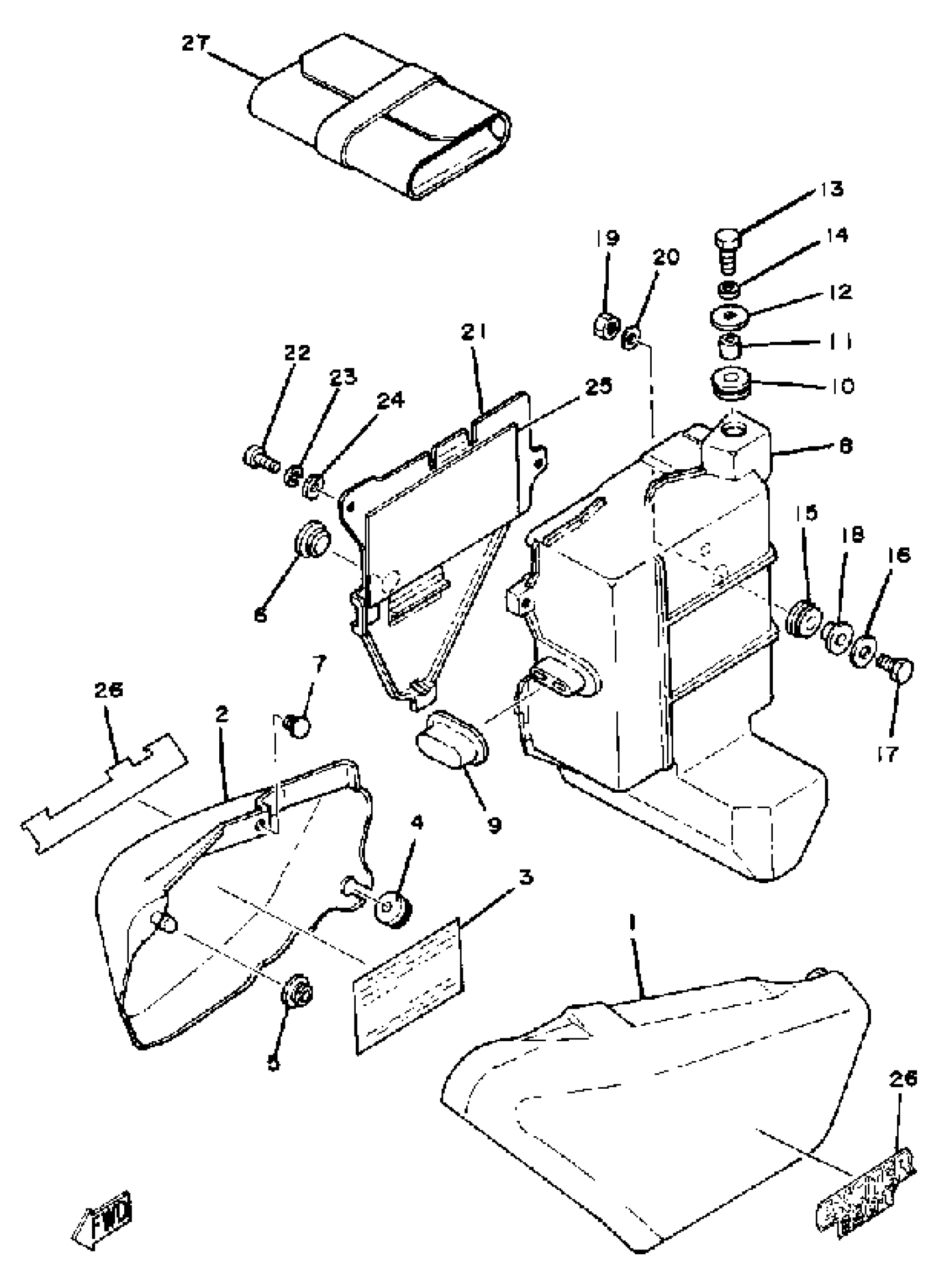

Find the part on the Side Cover Tool diagram for your 1981 Yamaha SR250TH (SR250TH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SR250TH (SR250TH) Side Cover Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

3Y6-21711-00-63

1
Out of stock

2

COVER SIDE 2

3Y6-21721-00-63

1
Out of stock

3

PLATE, SPEC

(3Y6-21683-00-00)

1
Out of stock

4

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

5

GROMMET(41Y)

90480-01401-00

1

$5.51

In stock

6

PAD, BATTERY

371-82121-00-00

1

$7.91

In stock

7

DAMPER, SIDE COVER

1J7-21717-00-00

1
Out of stock

8

BOX

3Y6-21170-00-00

1
Out of stock

9

DAMPER

3Y6-21746-00-00

—

$3.45

In stock

10

GROMMET (2N3)

90480-16233-00

1

$6.82

In stock

11

COLLAR (90387-066J9)

90387-064W1-00

1
Out of stock

12

WASHER, PLATE(36Y)

90201-063J2-00

1

$4.45

In stock

13

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

GROMMET

90480-13014-00

1

$6.85

In stock

16

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

17

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

18

COLLAR (3L6)

90387-06737-00

—

$6.60

In stock

19

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

20

WASHER, PLATE (4L0)

90201-062A8-00

—

$6.23

In stock

21

LID

3Y6-28185-00-00

—
Out of stock

22

SCREW, PAN

98507-06014-00

—

$6.18

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

WASHER, PLATE

90201-06049-00

1

$3.36

In stock

25

SEAT, BATTERY

5Y1-82122-00-00

—

$6.52

In stock

26

EMBLEM 1

(4K9-21781-00-00)

1
Out of stock

27

TOOL KIT

5A8-W2810-01-00

—
Out of stock
