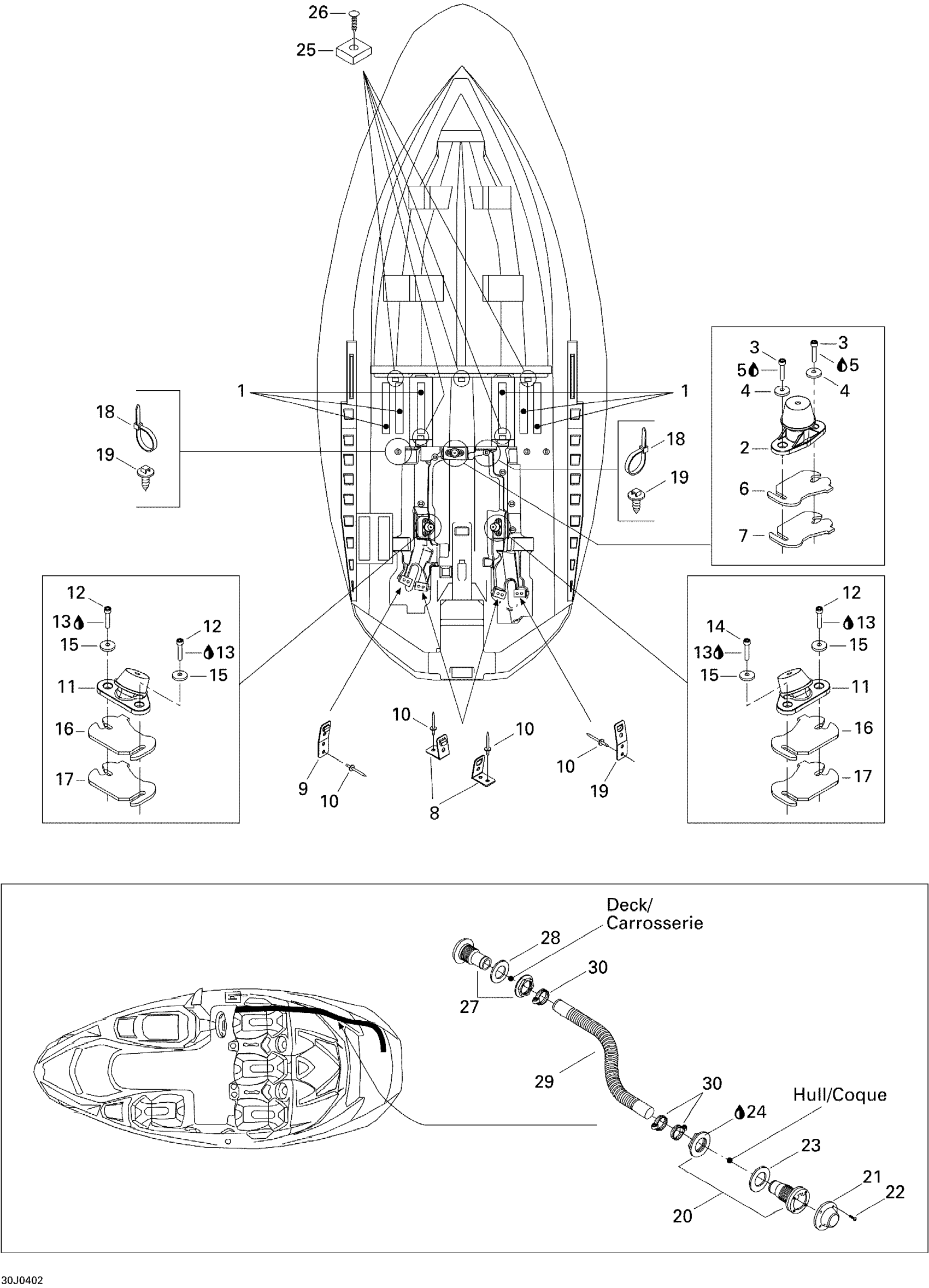

Sea-doo Sportster 4-TEC, 2004 Lower Hull Diagram
#
Description
Price
1
NEOPRENE, METER - Call your local BRP dealership
202000024
Unavailable
2
Engine Support Ass'y
270001096
Unavailable
3
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership
205084060
Unavailable
4
Cone Washer
250200018
Unavailable
5
Loctite 243, 10 ml
293800060
Unavailable
6
SHIM 0.3 MM - Call your local BRP dealership
270000445
Unavailable
7
Shim 1.3 mm
270000762
Unavailable
8
Strap Clip 90°
204060017
Unavailable
9
Strap Clip
293850030
Unavailable
10
Pop Rivet 3/16"
293150088
Unavailable
11
Engine Support Ass'y
270001081
Unavailable
12
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership
205084060
Unavailable
13
Loctite 243, 10 ml
293800060
Unavailable
14
Socket Head Screw M8 X 45
205084560
Unavailable
15
Cone Washer
250200018
Unavailable
16
SHIM 0.3 MM - Call your local BRP dealership
270000445
Unavailable
17
Shim 1.3 mm
270000762
Unavailable
18
Tie-Rap 180 mm
414115200
Unavailable
19
Mount Dart
293730040
Unavailable
20
THRU HULL FITTING - Call your local BRP dealership
204060071
Unavailable
21
SCUPPER VALVE - Call your local BRP dealership
204060188
Unavailable
22
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown
211000180
Unavailable
23
GASKET - Call your local BRP dealership
292800106
Unavailable
24
Silicone Sealant 51388, 300 ml
296000309
Unavailable
25
RUBBER PAD - Call your local BRP dealership
204060684
Unavailable
26
Black, Dart
293730006
Unavailable
27
FITTING - Call your local BRP dealership
293710060
Unavailable
28
GASKET - Call your local BRP dealership
292800106
Unavailable
29
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership
204070560
Unavailable
30
Norma Clamp
293650074
Unavailable
