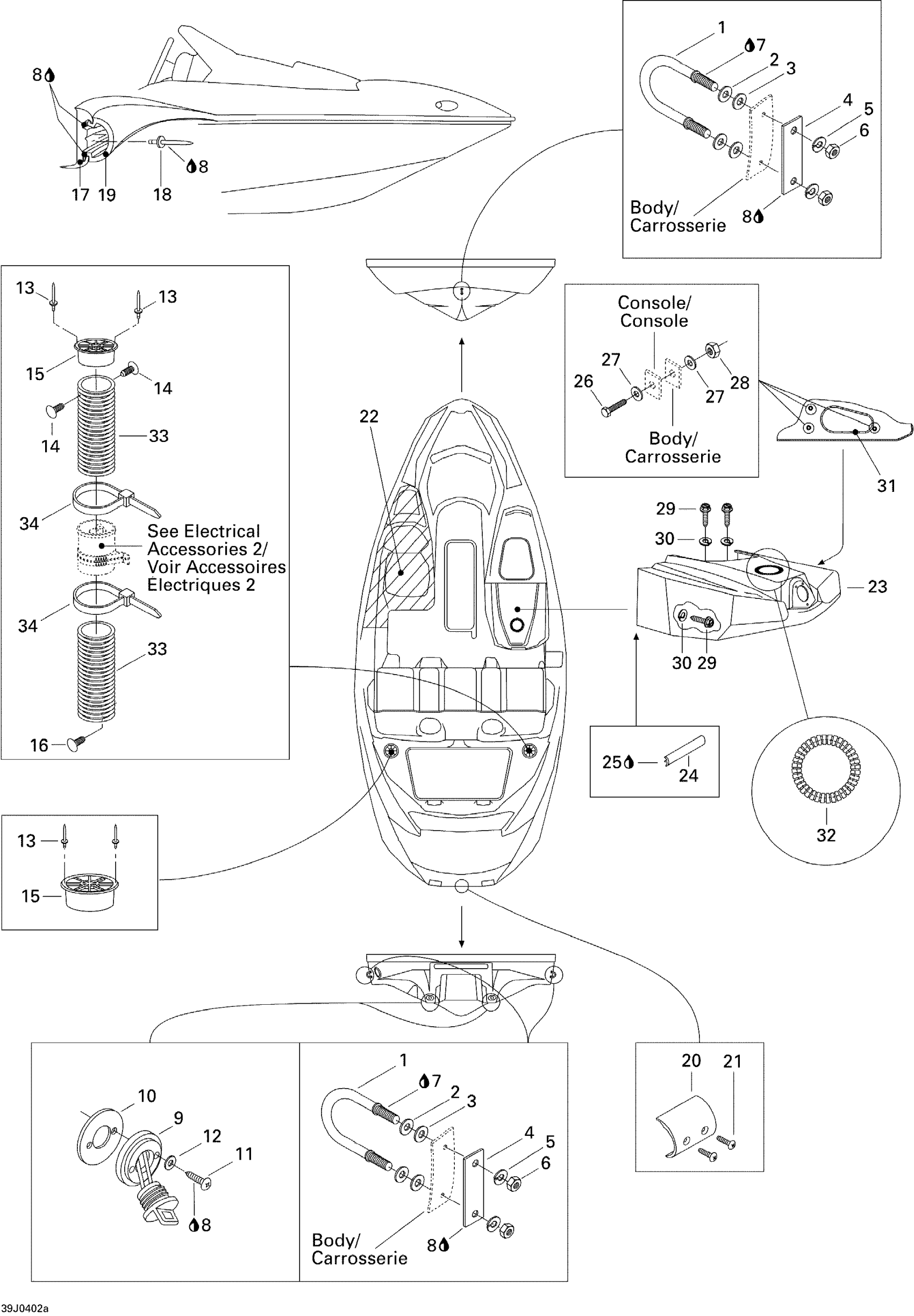

Sea-doo Sportster 4-TEC, 2004 Hull 1 Diagram
#
Description
Price
1
U-CLAMP - Call your local BRP dealership
292000063
Unavailable
2
Flat Washer M8.5 x 18
293050001
Unavailable
3
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
4
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
5
Lock Washer 8 mm, Stainless
234181601
Unavailable
6
Hex. Nut M8
232081600
Unavailable
7
Loctite 271, 10 ml
293800005
Unavailable
8
Silicone Sealant 51388, 300 ml
296000309
Unavailable
9
Drain Plug
292000187
Unavailable
10
GASKET - Call your local BRP dealership
293250030
Unavailable
11
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
12
Flat Washer 4 mm, Stainless
234041600
Unavailable
13
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
14
Black, Dart
293730006
Unavailable
15
VENT - 4 OPEN / WHT. - Call your local BRP dealership This part replaces 204050533.
204050803
Unavailable
16
Black, Dart
293730006
Unavailable
17
Black, Bumper
204050136
Unavailable
18
Pop Rivet 3/16"
293150013
Unavailable
19
Black, Trim - Call your local BRP dealership
204050137
Unavailable
20
BUMPER COVER, BLACK - Call your local BRP dealership
204050031
Unavailable
21
Phillips Tapping Screw M4.2 X 32
209943260
Unavailable
22
Foam Cooler
204050516
Unavailable
23
Console Ass'y
204050552
Unavailable
24
TRIM, WHITE - Call your local BRP dealership
204050042
Unavailable
25
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
Unavailable
26
Hex. Screw M6 X 35
207163560
Unavailable
27
Flat Washer M6, Stainless
234062600
Unavailable
28
Hex. Elastic Stop Nut M6
232561600
Unavailable
29
Self Drill Screw L( Hex Washer Head ) - Call your local BRP dealership
204050138
Unavailable
30
Lock Washer 1/4”
211200025
Unavailable
31
Slit Conduit, Meter
204550045
Unavailable
32
SLIT CONDUIT, METER - Call your local BRP dealership
204550015
Unavailable
33
Was 204050122 Vent Hose 4"
219704358
Unavailable
34
Tie Wrap 368 mm
293750008
Unavailable
