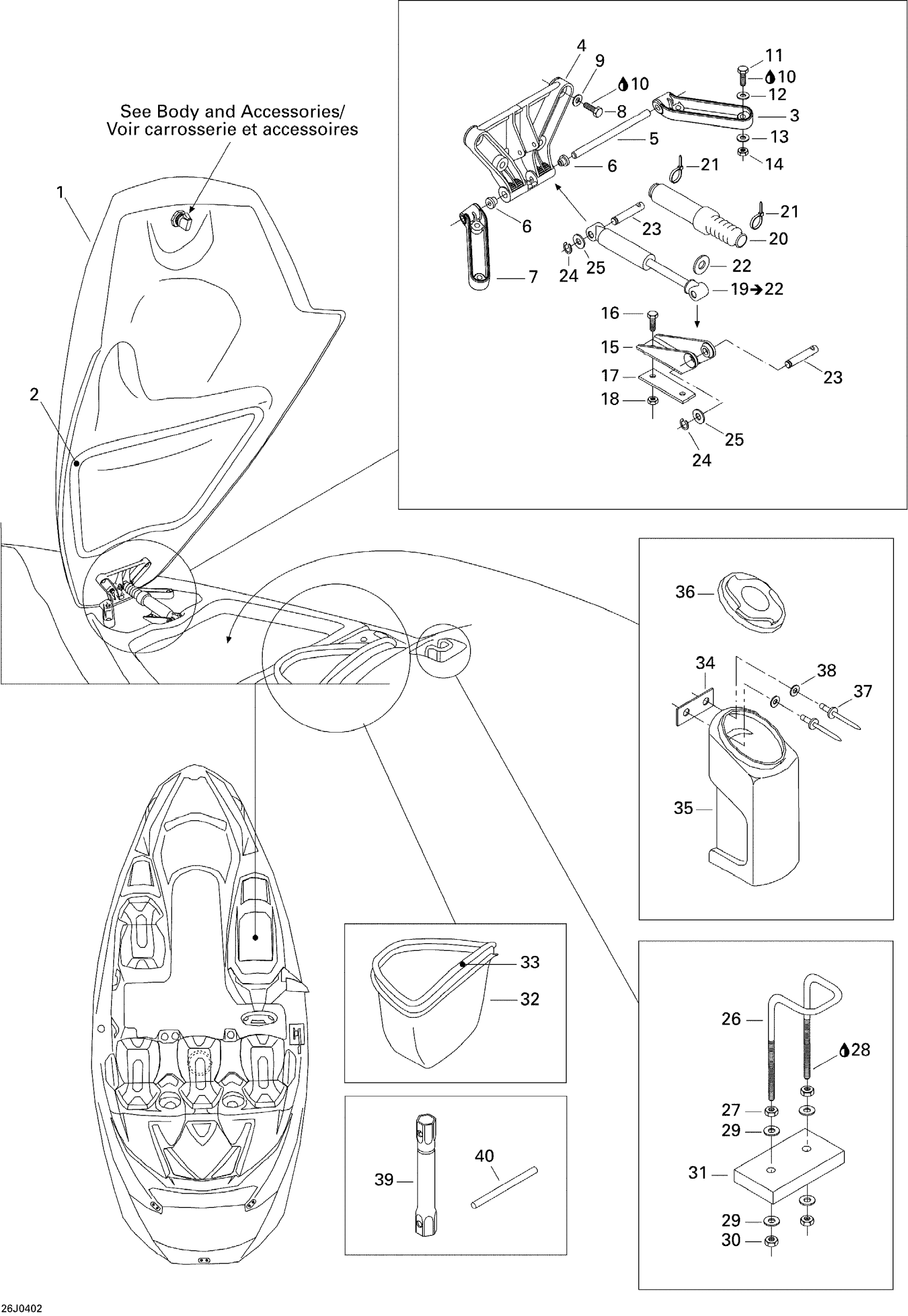

Sea-doo Sportster 4-TEC, 2004 Front Storage Compartment Diagram
#
1
Storage Cover Ass'y
204620290
Unavailable
2
Seal Tray 1000Mm Long
219704368
Unavailable
3
RH HINGE - Call your local BRP dealership
269700022111
Unavailable
4
COVER HINGE - Call your local BRP dealership
269700038
Unavailable
5
AXLE - Call your local BRP dealership
269700024
Unavailable
6
CUSHION - Call your local BRP dealership
293350016
Unavailable
7
LH HINGE - Call your local BRP dealership
269700023111
Unavailable
8
Hex. Forming Screw M6 X 20
207162060
Unavailable
9
Stainless Flat Washer M6
234061600
Unavailable
10
Loctite 243, 10 ml
293800060
Unavailable
11
Hex. Screw M6 X 35
207063560
Unavailable
12
Stainless Flat Washer M6
234061600
Unavailable
13
Flat Washer M6, Stainless
234062600
Unavailable
14
Hex. Elastic Stop Nut M6
232561600
Unavailable
15
SHOCK SUPPORT - Call your local BRP dealership
291000855
Unavailable
16
Hex. Screw M6 X 25
207162560
Unavailable
17
REINFORCEMENT PLATE - Call your local BRP dealership
291000079
Unavailable
18
Hex. Elastic Stop Nut M6
232561600
Unavailable
19
Shock-Gas This part replaces 269501864.
269501993
Unavailable
20
BELLOW - Call your local BRP dealership
291000919
Unavailable
21
Tie Wrap 94 mm | 4X4
293750001
Unavailable
22
Washer
211200034
Unavailable
23
SHORT PIN - Call your local BRP dealership
211400006
Unavailable
24
CIRCLIP - Call your local BRP dealership
293370008
Unavailable
25
Stainless, Flat Washer 8 mm
234081600
Unavailable
26
Hook
204620151
Unavailable
27
Hex. Nut M6
232061600
Unavailable
28
Loctite 243, 10 ml
293800060
Unavailable
29
Flat Washer M6, Stainless
234062600
Unavailable
30
Hex. Elastic Stop Nut M6
232561600
Unavailable
31
REINFORCEMENT PLATE - Call your local BRP dealership
204620270
Unavailable
32
GLOVE BOX - Call your local BRP dealership
269501121
Unavailable
33
NEOPRENE SEAL 1M/3.28FT - Call your local BRP dealership
204130049
Unavailable
34
GASKET - Call your local BRP dealership
293250037
Unavailable
35
EXTINGUISHER HOUSING - Call your local BRP dealership
269500606
Unavailable
36
EXTINGUISHER HOUSING CAP - Call your local BRP dealership
269501939
Unavailable
37
Pop Rivet 3/16"
293150008
Unavailable
38
Flat Washer 5 mm, Stainless
234052600
Unavailable
39
Socket Wrench
529035731
Unavailable
40
Steel Bar
204630051
Unavailable
