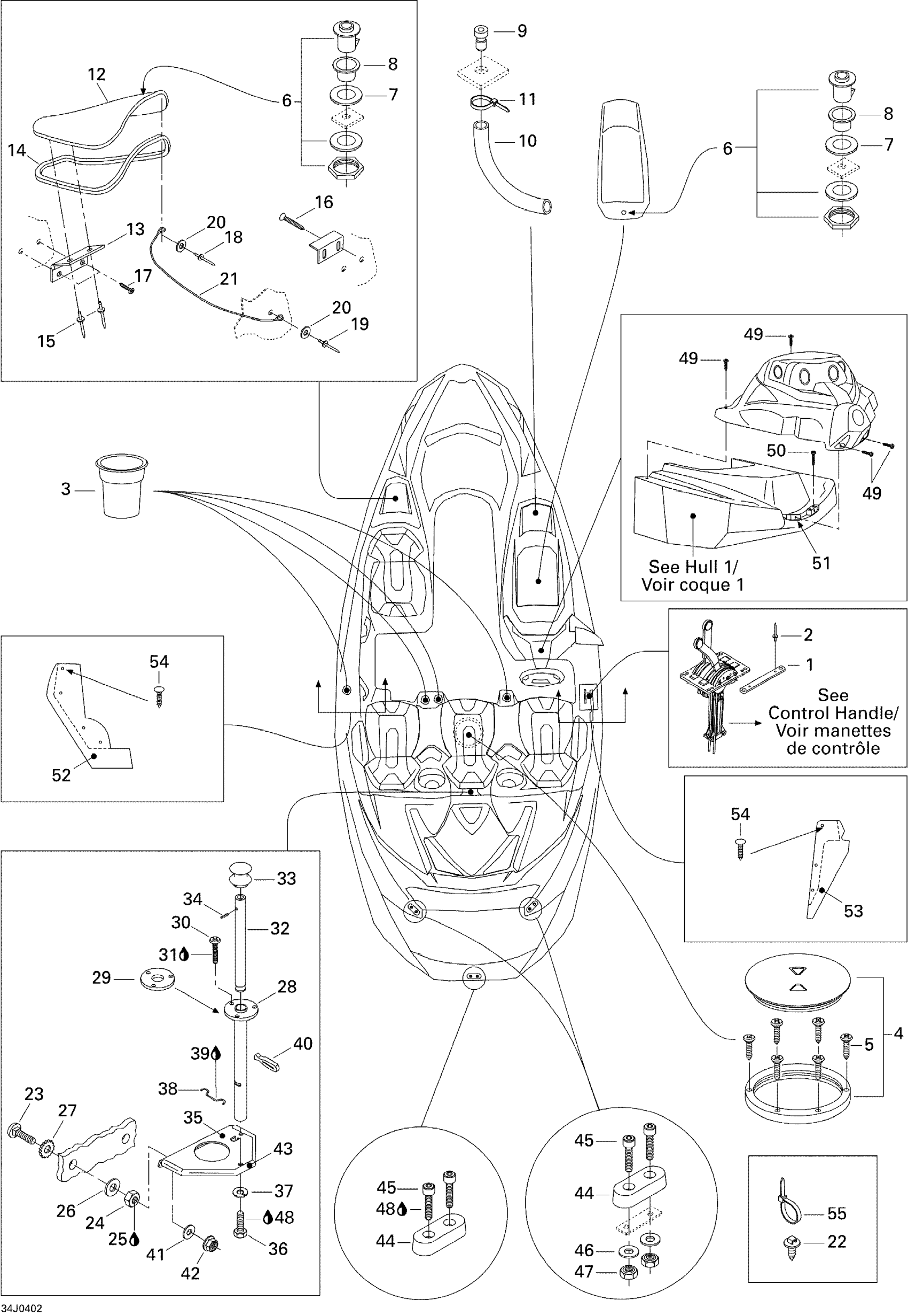

Sea-doo Sportster 4-TEC, 2004 Body and Accessories Diagram
#
1
SHIFTER INSERT - Call your local BRP dealership
293450061
Unavailable
2
Pop Rivet 3/16"
293150013
Unavailable
3
CUP HOLDER - Call your local BRP dealership | STD
291000619
Unavailable
4
Deck Plate 8”
202000044
Unavailable
5
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership
209941960
Unavailable
6
LATCHES KIT, 2 SUB-ASSEMBLIES - Call your local BRP dealership
204071753
Unavailable
7
COMPENSATION GASKET - Call your local BRP dealership
204620045
Unavailable
8
LATCH INSERT - Call your local BRP dealership
204620007
Unavailable
9
DRAIN FITTING - Call your local BRP dealership
204071783
Unavailable
10
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
11
Tie Wrap 94 mm | 4X4
293750001
Unavailable
12
STORAGE DOOR, PORT SIDE, YELLOW - Call your local BRP dealership | Yellow Model
204073023
Unavailable
13
Hinge
269700031
Unavailable
14
Seal Tray 1000Mm Long
219704368
Unavailable
15
RIVET_POP 1/8 - Call your local BRP dealership
293150026
Unavailable
16
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership
209631360
Unavailable
17
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership
209631360
Unavailable
18
Pop Rivet 3/16"
293150008
Unavailable
19
Pop Rivet 3/16"
293150039
Unavailable
20
Flat Washer 5 mm, Stainless
234052600
Unavailable
21
RETAINER CABLE - Call your local BRP dealership
204000117
Unavailable
22
Mount Dart
293730040
Unavailable
23
Elevator Bolt
204000130
Unavailable
24
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
25
Loctite 271, 10 ml
293800005
Unavailable
26
Flat Washer M6, Stainless
234062600
Unavailable
27
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
28
FIXED TUBE - Call your local BRP dealership
204071495
Unavailable
29
RUBBER WASHER - Call your local BRP dealership
293830045
Unavailable
30
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
31
Loctite 243, 10 ml
293800060
Unavailable
32
SKI SHAFT - Call your local BRP dealership
204071624
Unavailable
33
SKI SHAFT CAP - Call your local BRP dealership
293000004
Unavailable
34
ROLLED PIN M3 X 30 - Call your local BRP dealership
211400004
Unavailable
35
FIXATION PLATE - Call your local BRP dealership
204071140
Unavailable
36
Hex. Screw M8 X 18
207181860
Unavailable
37
Lock Washer 8 mm, Stainless
234181601
Unavailable
38
SPRING - Call your local BRP dealership
291001205
Unavailable
39
Synthetic Grease, 400 G
293550010
Unavailable
40
Windshield Latch
570023800
Unavailable
41
Flat Washer M6, Stainless
234062600
Unavailable
42
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
43
Was 271000110 Protection Trim
219704353
Unavailable
44
Rubber Bumper
204071739
Unavailable
45
Socket Head Screw M6 X 30
205063060
Unavailable
46
Flat Washer M6, Stainless
234062600
Unavailable
47
Hex. Elastic Stop Nut M6
232561600
Unavailable
48
Loctite 243, 10 ml
293800060
Unavailable
49
SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership
202000203
Unavailable
50
Phillips Tapping Screw M4.2 X 32
209943260
Unavailable
51
Attachment Block
204071786
Unavailable
52
Not Available As Spare Part - Friction Washer
Unavailable
53
Not Available As Spare Part - Friction Washer
Unavailable
54
Black Dart
293730014
Unavailable
55
Tie-Rap 180 mm
414115200
Unavailable
