1971 Yamaha SL338B Tail Lamp Diagram

← All diagrams

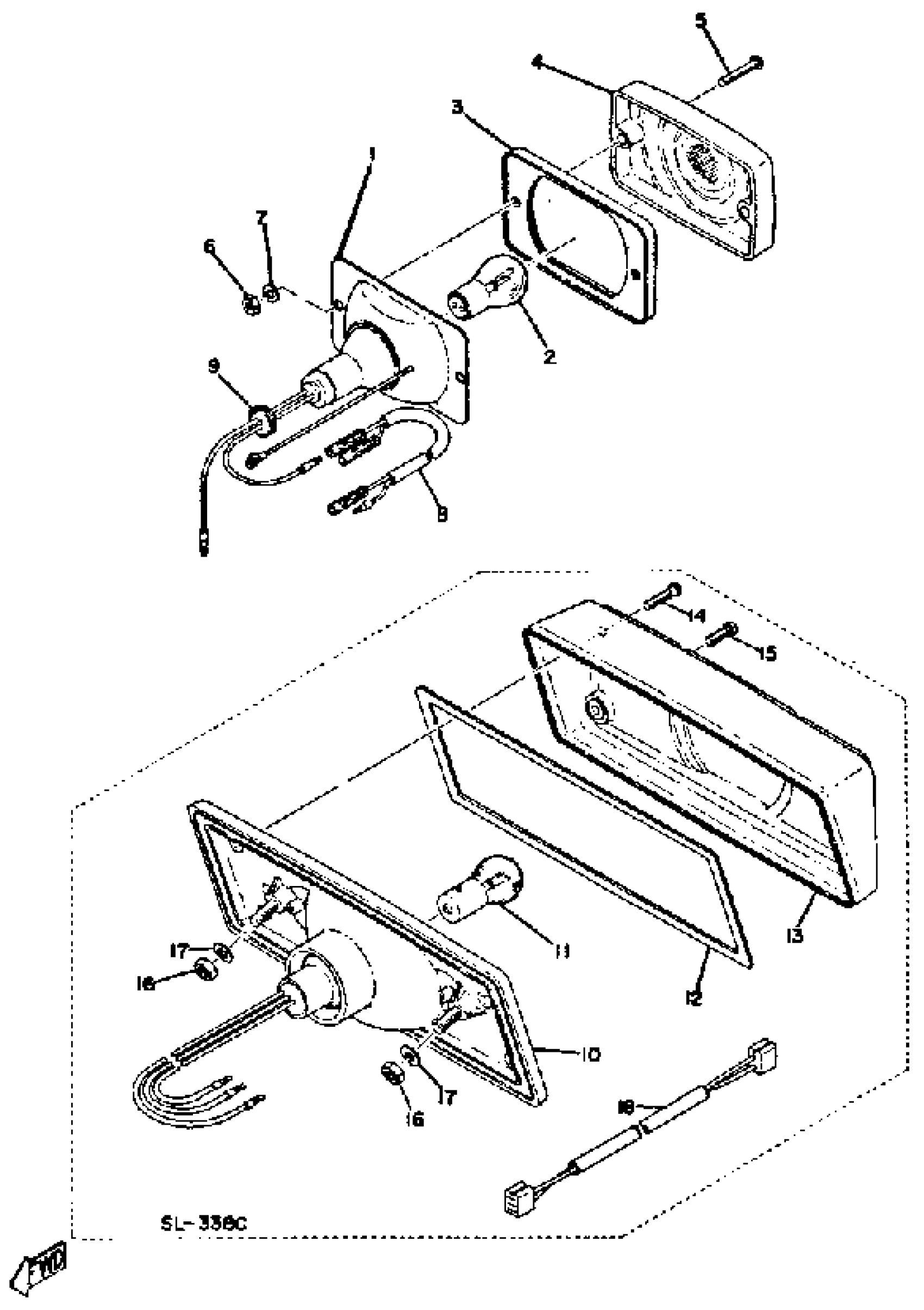

Find the part on the Tail Lamp diagram for your 1971 Yamaha SL338B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SL338B Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

(806-84710-01-00)

1
Out of stock

1

. BASE, TAILLIGHT

806-84711-00-00

1
Out of stock

2

. BULB

35R-83311-00-00

1
Out of stock

2

TAILLIGHT UNIT ASSEMBLY

821-84710-00-00

1
Out of stock

3

. SEAT, BASE

806-84712-00-00

1
Out of stock

4

LENS, TAILLIGHT

(806-84721-00-00)

1
Out of stock

5

. SCREW, LENS FITTING

806-84724-00-00

1
Out of stock

6

NUT(6TA)

95307-04600-00

1

$6.69

In stock

7

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

8

CORD, TAILLIGHT

(806-84717-00-00)

1
Out of stock

9

GROMMET

(102-82598-00-00)

1
Out of stock

10

BASE, TAILLIGHT

(821-84711-01-00)

1
Out of stock

11

. BULB

35R-83311-00-00

1
Out of stock

12

SEAL

3TJ-14457-00-00

—
Out of stock

13

. LENS, TAILLIGHT

821-84721-00-00

1
Out of stock

14

SCREW, PAN

98507-04030-00

1

$1.51

In stock

15

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

16

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

CORD, TAILLIGHT

822-84727-00-00

1
Out of stock
