1971 Yamaha SL338B Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1971 Yamaha SL338B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

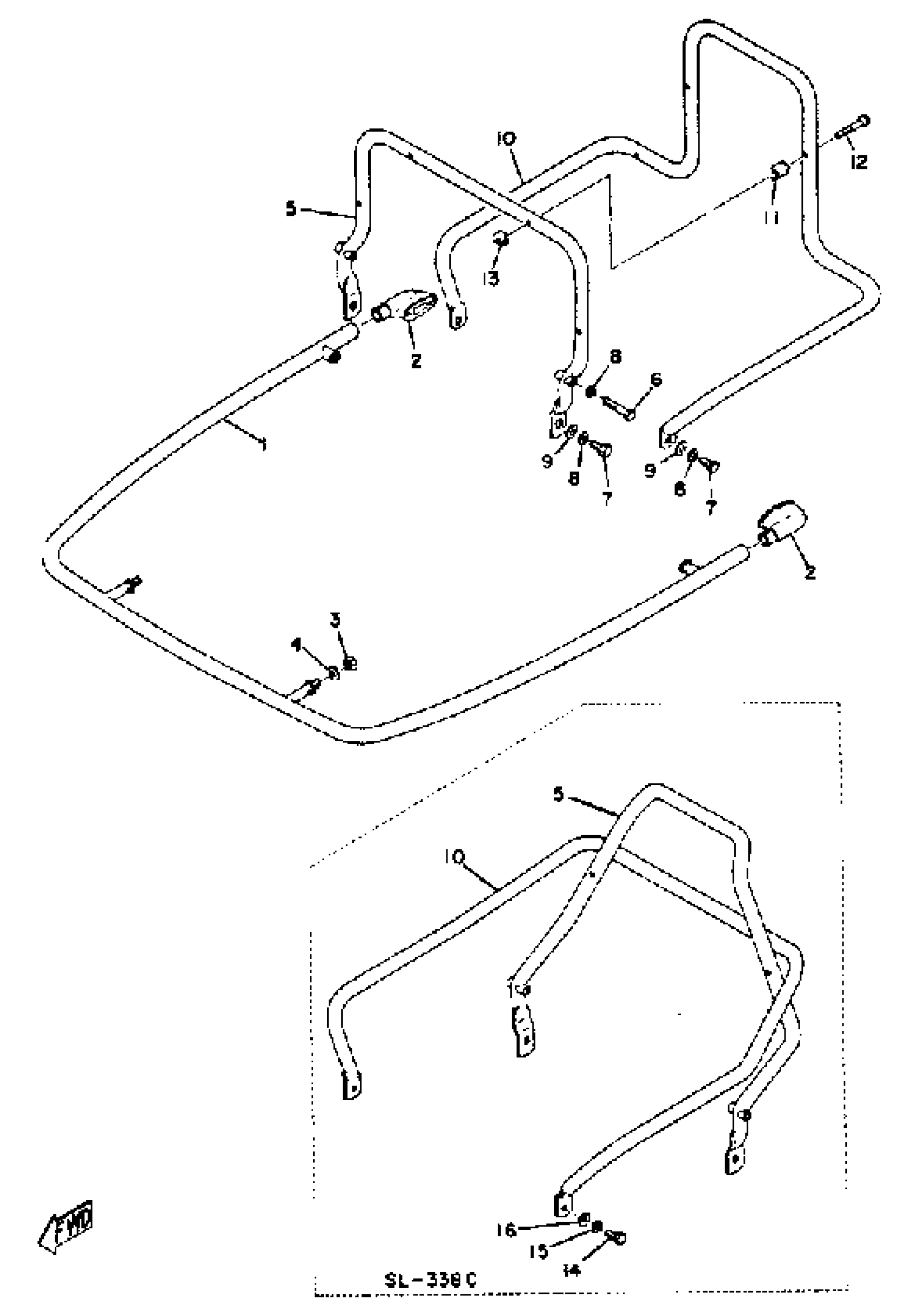

1971 Yamaha SL338B Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT BUMPER (806-77510-00)

821-77510-00-00

1
Out of stock

2

END, BUMPER

(806-77523-00-00)

1
Out of stock

2

END, BUMPER

821-77523-00-00

1
Out of stock

3

NUT(6L2)

95333-08600-00

1

$3.20

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

BUMPER, REAR 1

(806-77541-00-00)

1
Out of stock

5

BUMPER, REAR 1

822-77541-00-00

1
Out of stock

6

BOLT

97013-08045-00

—
Out of stock

7

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

7

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

8

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

8

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

9

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

9

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

10

GRIP, ASSIST 1

(806-77571-00-00)

1
Out of stock

10

GRIP, ASSIST 1

822-77571-00-00

1
Out of stock

11

BUSH, RUBBER 1

(806-77515-00-00)

1
Out of stock

11

BUSH, RUBBER 1

(806-77515-00-00)

1
Out of stock

12

SCREW

92601-06050-00

1
Out of stock

12

SCREW

92601-06050-00

1
Out of stock

13

NUT, SPECIAL

806-77573-00-00

1
Out of stock

13

NUT, SPECIAL

806-77573-00-00

1
Out of stock

14

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock
