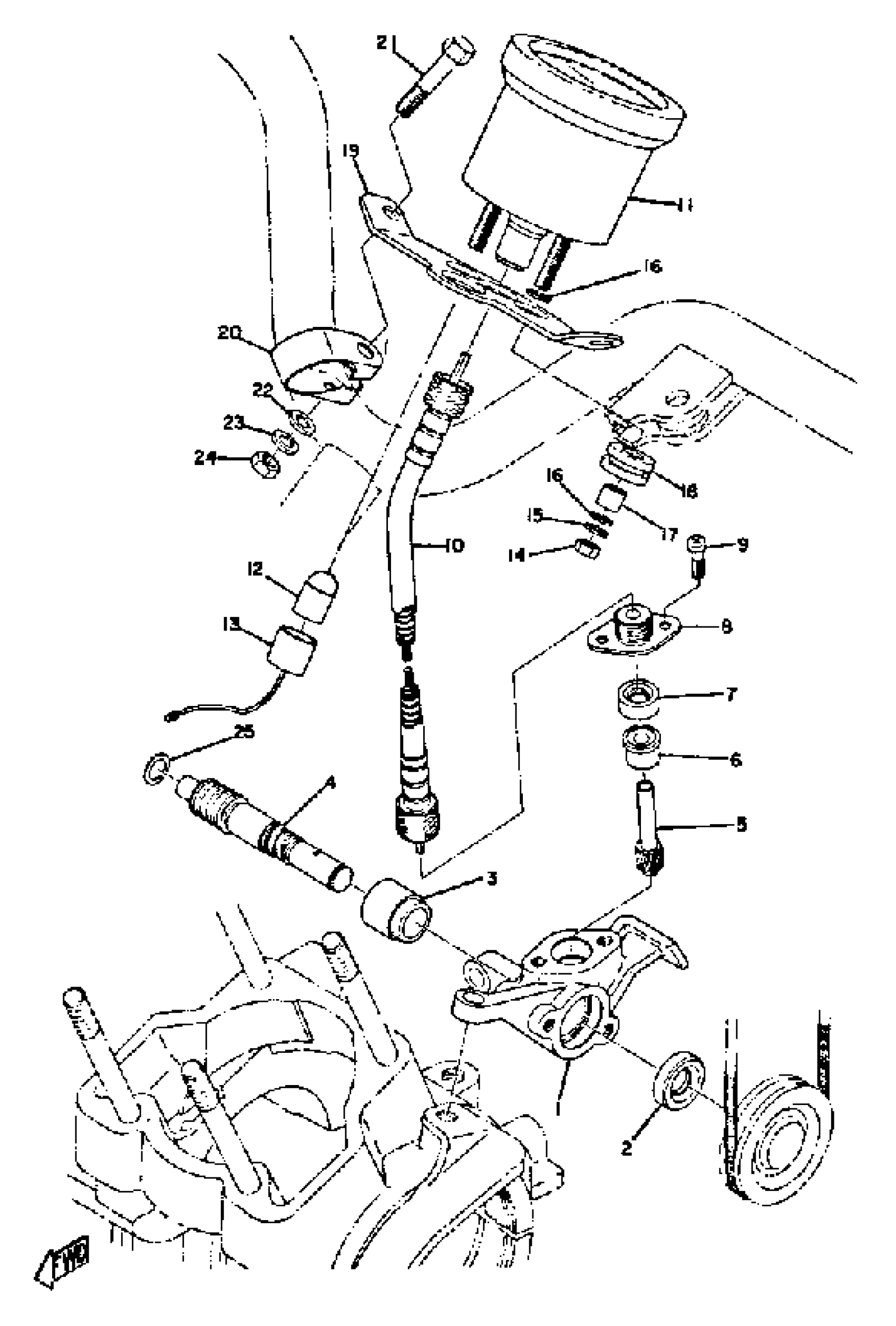

Find the part on the Tachometer diagram for your 1971 Yamaha SL338B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SL338B Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, PUMP

(813-13199-00-00)

1
Out of stock

2

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

3

METAL, WRM SHAF OTR

(813-13176-00-00)

1
Out of stock

4

SHAFT, WORM

813-13175-00-00

1
Out of stock

5

GEAR, DRIVEN (10T)

813-17841-00-00

1
Out of stock

6

BUSH, DRVN GR OUTER

(813-17843-00-00)

1
Out of stock

6

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

1
Out of stock

7

OIL SEAL (6X12X4-821)

93104-06033-00

1

$6.49

In stock

7

OIL SEAL, SO-TYPE

(93104-06035-00)

1
Out of stock

8

CAP, HOUSING

(813-17819-00-00)

1
Out of stock

8

CAP, HOUSING

821-17819-00-00

1
Out of stock

9

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

10

TACHOMETER CABLE

(813-83560-00-00)

1
Out of stock

11

TACHOMETER ASSEMBLY

(813-83540-00-00)

1
Out of stock

12

BULB

256-84347-00-00

1
Out of stock

13

SOCKET, METER

(813-83536-00-00)

1
Out of stock

14

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

15

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

16

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

17

COLLAR (3L6)

90387-06761-00

—

$6.88

In stock

18

DAMPER

(803-83523-00-00)

1
Out of stock

19

BRACKET, TACHOMETER

(810-83545-00-00)

1
Out of stock

20

PLATE, FITTING

(810-83544-00-00)

1
Out of stock

21

BOLT (682)

97095-06040-00

—

$2.36

In stock

22

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

25

SHIM

(813-17837-00-03)

1
Out of stock
