1971 Yamaha SL338B Head Lamp Diagram

← All diagrams

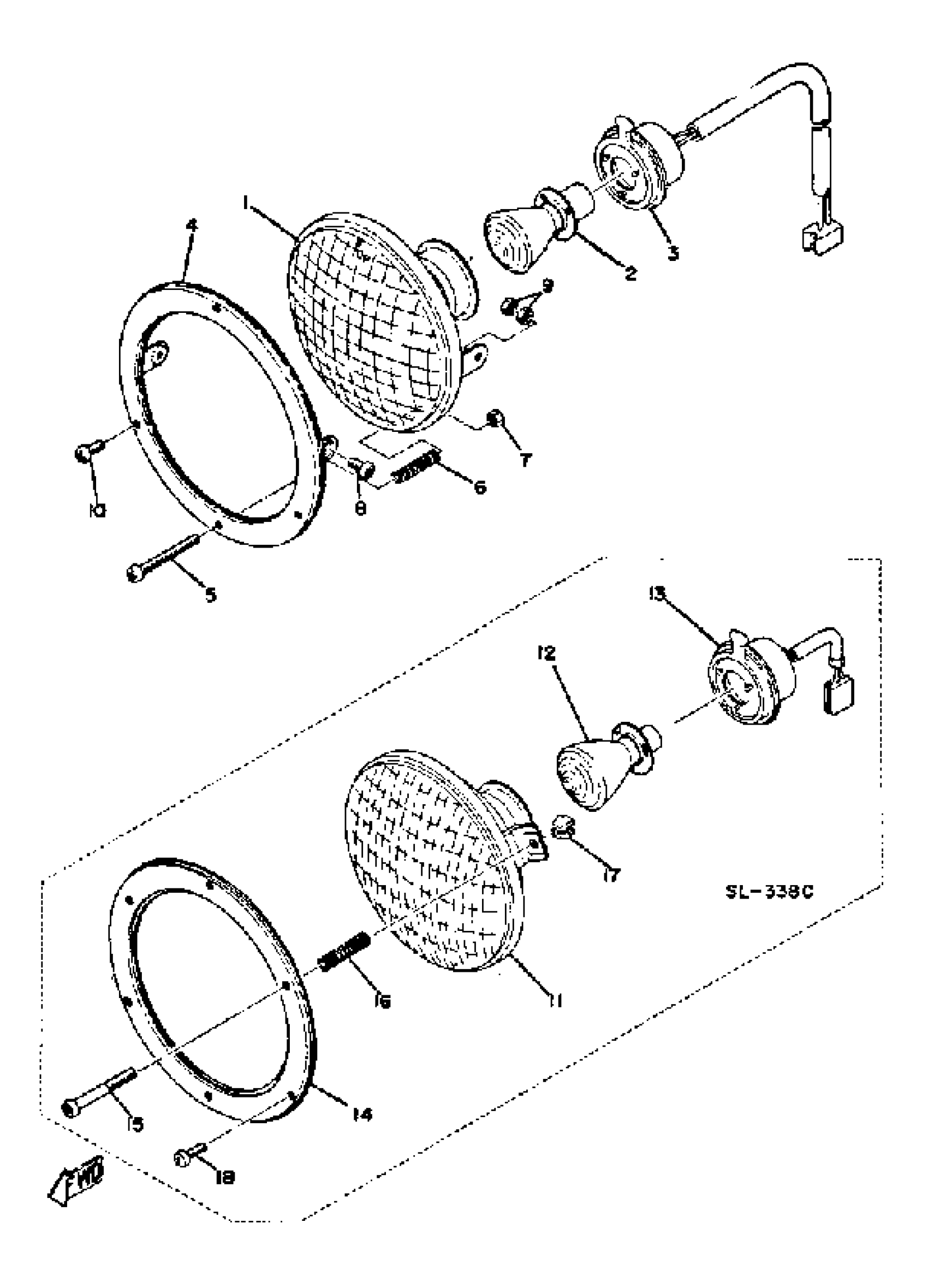

Find the part on the Head Lamp diagram for your 1971 Yamaha SL338B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SL338B Head Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY

806-84310-00-00

1
Out of stock

1

LENS ASSEMBLY

(806-84320-00-00)

1
Out of stock

2

. BULB, HL12V35/35W

183-84314-60-00

1
Out of stock

2

HEADLIGHT UNIT ASSEMBLY

822-84310-00-00

1
Out of stock

3

SOCKET

(806-84312-00-00)

1
Out of stock

4

. RIM, HEADLIGHT

806-84315-00-00

1
Out of stock

5

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

6

SPRING, SCREW

(207-84132-60-00)

1
Out of stock

7

NUT, ADJUST

(207-84134-61-00)

1
Out of stock

8

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

9

NUT(6L4)

95380-04700-00

—

$5.62

In stock

10

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

11

. LENS ASSEMBLY

817-84320-00-00

1
Out of stock

12

. BULB, HL12V35/35W

183-84314-60-00

1
Out of stock

14

RIM, HEADLIGHT

(817-84315-00-00)

1
Out of stock

15

. SCREW, RIM ADJUSTING

817-84331-00-00

1
Out of stock

16

SPRING, SCREW

(817-84332-00-00)

1
Out of stock

17

NUT, ADJUSTING

(817-84334-00-00)

1
Out of stock

18

SCREW, PAN HEAD

98517-04020-00

—

$6.18

In stock
