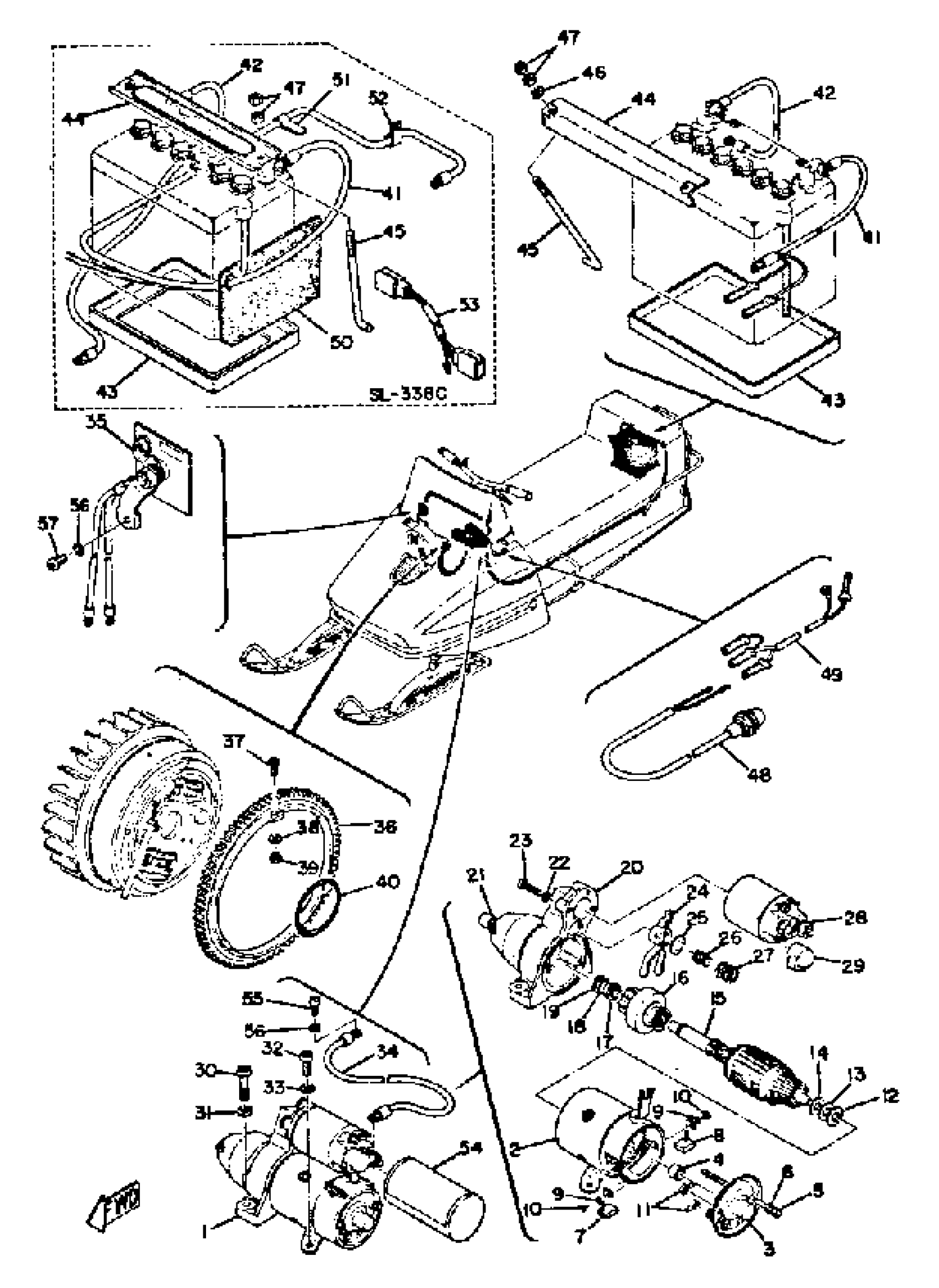

Find the part on the Electric Starter diagram for your 1971 Yamaha SL338B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SL338B Electric Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK (807-81800-20)

807-81800-00-00

1
Out of stock

2

STATOR ASSEMBLY

(807-81810-20-00)

1
Out of stock

3

REAR BRACKET ASSEMBLY

(807-81820-20-00)

1
Out of stock

4

COVER, SWITCH

(807-81821-20-00)

1
Out of stock

5

BOLT

(807-81826-20-00)

1
Out of stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

BRUSH 1

(807-81811-20-00)

1
Out of stock

8

BRUSH 2

(807-81812-20-00)

1
Out of stock

9

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

10

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

11

SPRING, BRUSH

(807-81813-20-00)

1
Out of stock

12

WASHER, INSULATOR

(807-81825-20-00)

1
Out of stock

13

WASHER 2

(807-81824-20-00)

1
Out of stock

14

STAY, STARTING MTR

(807-81823-20-00)

1
Out of stock

15

ARMATURE ASSEMBLY

(807-81850-20-00)

1
Out of stock

16

CLUTCH, OVER RUN

(807-81832-20-00)

1
Out of stock

17

RING, STOP

(807-81833-20-00)

1
Out of stock

18

RING

(807-81834-20-00)

1
Out of stock

19

WASHER

(807-81835-20-00)

1
Out of stock

20

FRONT BRACKET ASSEMBLY

(807-81830-20-00)

1
Out of stock

21

METAL, FRONT

(807-81831-20-00)

1
Out of stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

SCREW

(807-81846-20-00)

1
Out of stock

24

LEVER ASSEMBLY

(807-81839-20-00)

1
Out of stock

25

HOLDER, SPRING

(807-81838-20-00)

1
Out of stock

26

SPRING, LEVER

(807-81836-20-00)

1
Out of stock

27

SPRING, LEVER

(807-81837-20-00)

1
Out of stock

28

SWITCH ASSEMBLY

(807-81860-20-00)

1
Out of stock

29

CAP

(807-81862-20-00)

1
Out of stock

30

SCREW, SPEC''L SHAPE

90149-08056-00

1
Out of stock

31

WASHER, PLATE

(90201-09116-00)

1
Out of stock

32

SCREW PAN HEAD

98580-08020-00

—

$3.14

In stock

33

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

34

WIRE, LEAD

(811-82117-00-00)

1
Out of stock

34

WIRE, LEAD

(819-82117-00-00)

1
Out of stock

35

RECTIFIER ASSEMBLY

(812-81970-41-00)

1
Out of stock

36

GEAR, RING

(811-81891-00-00)

1
Out of stock

37

SCREW, SPEC''L SHAPE

(90149-06061-00)

1
Out of stock

38

WASHER, SPECIAL

(811-81894-00-00)

1
Out of stock

39

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

40

O-RING

(93210-61117-00)

1
Out of stock

41

WIRE, PLUS LEAD

(811-82115-00-00)

1
Out of stock

41

WIRE, PLUS LEAD

824-82115-00-00

1
Out of stock

42

WIRE, MINUS LEAD

(807-82116-00-00)

1
Out of stock

42

WIRE, MINUS LEAD

822-82116-00-00

1
Out of stock

43

SEAT, BATTERY

807-82122-00-00

1
Out of stock

43

NO LONGER AVAILABLE

807-82122-01-00

1
Out of stock

44

PLATE, BATT FITTING

(807-82136-00-00)

1
Out of stock

44

PLATE, BATT FITTING

(822-82136-00-00)

1
Out of stock

45

SCREW, SPEC''L SHAPE

(90149-06024-00)

1
Out of stock

45

SCREW, SPEC''L SHAPE

(90149-06038-00)

1
Out of stock

46

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

47

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

48

STARTER SWITCH ASSEMBLY

(811-83970-00-00)

1
Out of stock

49

WIRE, LEAD 2

(811-82127-01-00)

1
Out of stock

49

WIRE, LEAD 2

(822-82127-00-00)

1
Out of stock

50

SEAL, BATTERY

822-82118-00-00

1
Out of stock

51

BAND

(822-82591-00-00)

1
Out of stock

52

CLAMP

90465-06013-00

1
Out of stock

53

WIRE, LEAD

(827-82531-00-00)

1
Out of stock

54

COVER, SWITCH

(819-81821-00-00)

1
Out of stock

55

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

56

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

57

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock
